Instruction manual DD810BK
51
Please keep this instruction manual for future reference

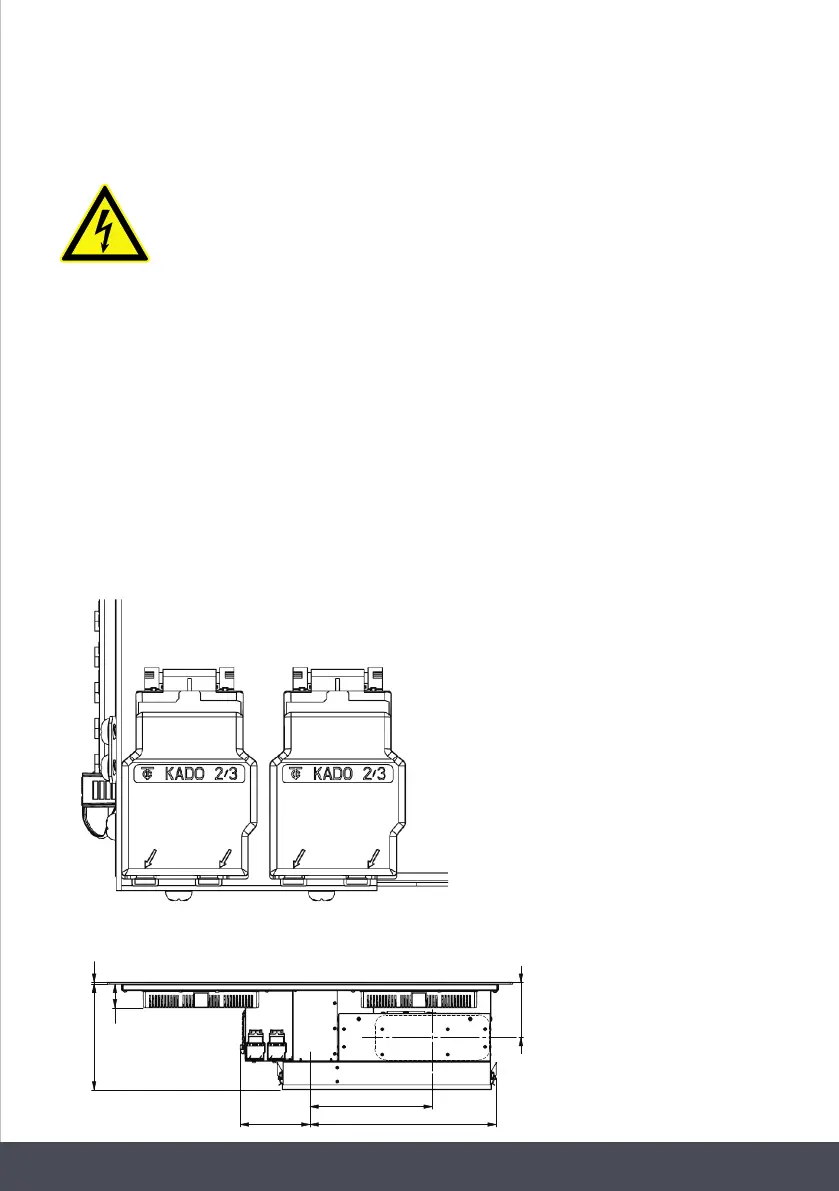

CONNECTION WINDOW CONTACT/RELAY CONNECTION
WARNING OF ELECTRICAL ENERGY. RISK OF FATAL INJURY.
Live components have been installed near this symbol. Covers bearing this sign
may only be removed by a certified skilled electrician.
ATTENTION:
› The connection for the window contact switch and relay connection is under mains voltage.
› Personal injury due to electric shock.
› Disconnect the hob from the power supply before connecting the switching system.
› The electrical connection must be carried out by a qualified electrician who is authorised to
carry out such work.
Connection window contact (A)
Relay connection (B)
Mains socket (C)
EXPLANATION FOR SYMBOLS AND INDICATIONS
This appliance was produced according to state of the art technology. Machines nevertheless give rise to risks which cannot be
constructively avoided.
In order to guarantee sufficient safety for use, safety instructions are also given. These instructions are marked by way of the
highlighted texts which follow.
Sufficient safety in operation will only be guaranteed when these instructions are observed.
The designated text passages have different meanings:
NOTE
Note to be observed in order to make handling the appliance easier.
WARNING OF ELECTRICAL ENERGY RISK OF FATAL INJURY
Live components have been installed near this symbol. Covers bearing this sign may only be removed by a
certified skilled electrician.
A
B
C
208
47
4
C
A B
138
241
367
108
FRONT VIEW
A
B
C
208
47
4
C
A B
138
241
367
108
