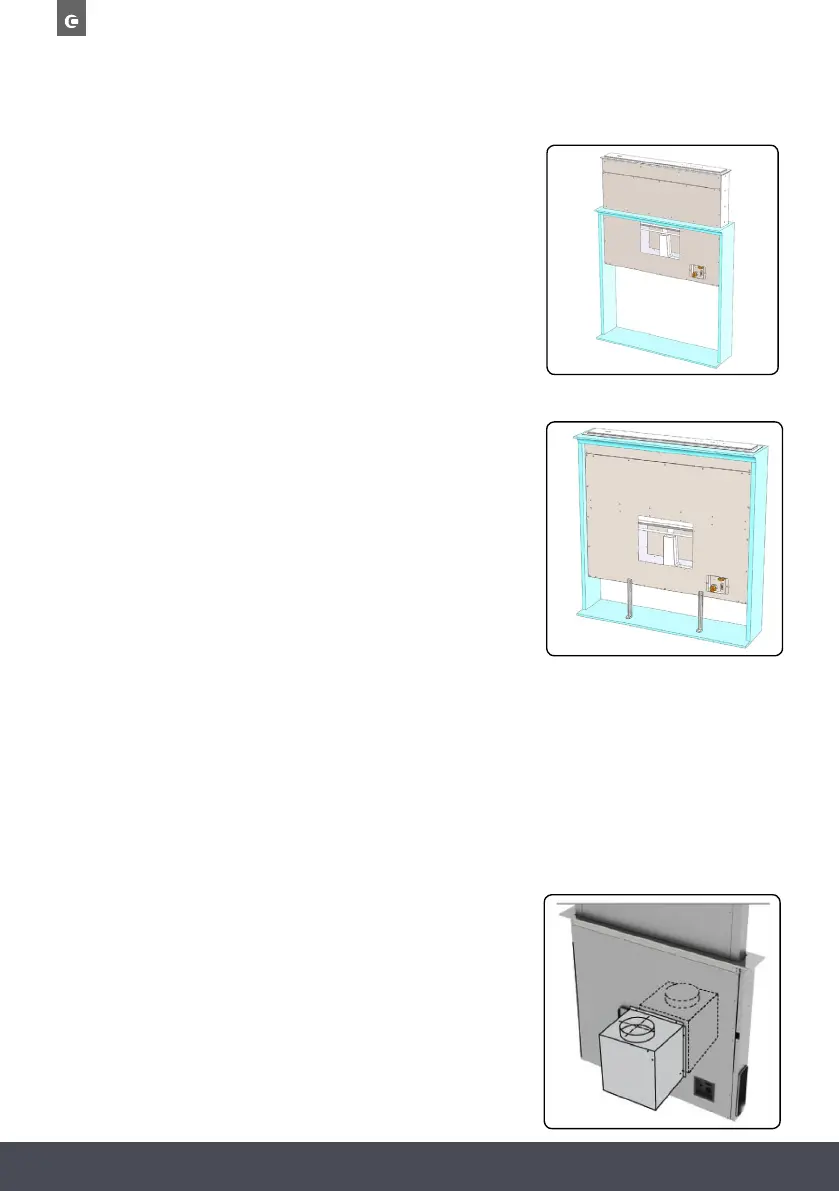

4. Put the Downdraft in the opening, inserting it from above
as shown in (Fig. 1).
5. Fix the downdraft inside the cabinet, using the special
fixing brackets supplied with the product (Fig. 2). Insert the
brackets in the lower side of the downdraft (Fig. 2), in such
a way that there is a 2mm distance between the lower side
of bracket and the bottom of the cabinet (Fig. 2).
This distance will allow the traction to be positioned
downwards of the product, at the moment of fixing, in
order to have the stainless steel trim perfectly adhering
with the work surface. Before inserting the screws,
please make sure that the appliance is perfectly
perpendicular with the work surface.
6. If using an internal motor with the downdraft, place the internal motor in the desired position,
with the air outlet facing either upwards or downwards (Fig.3).The motor can be installed
either on the front or rear of the downdraft. Once the motor is installed, connect the ducting
to the air outlets.
