Instruction manual DD925CO
11
Please keep this instruction manual for future reference

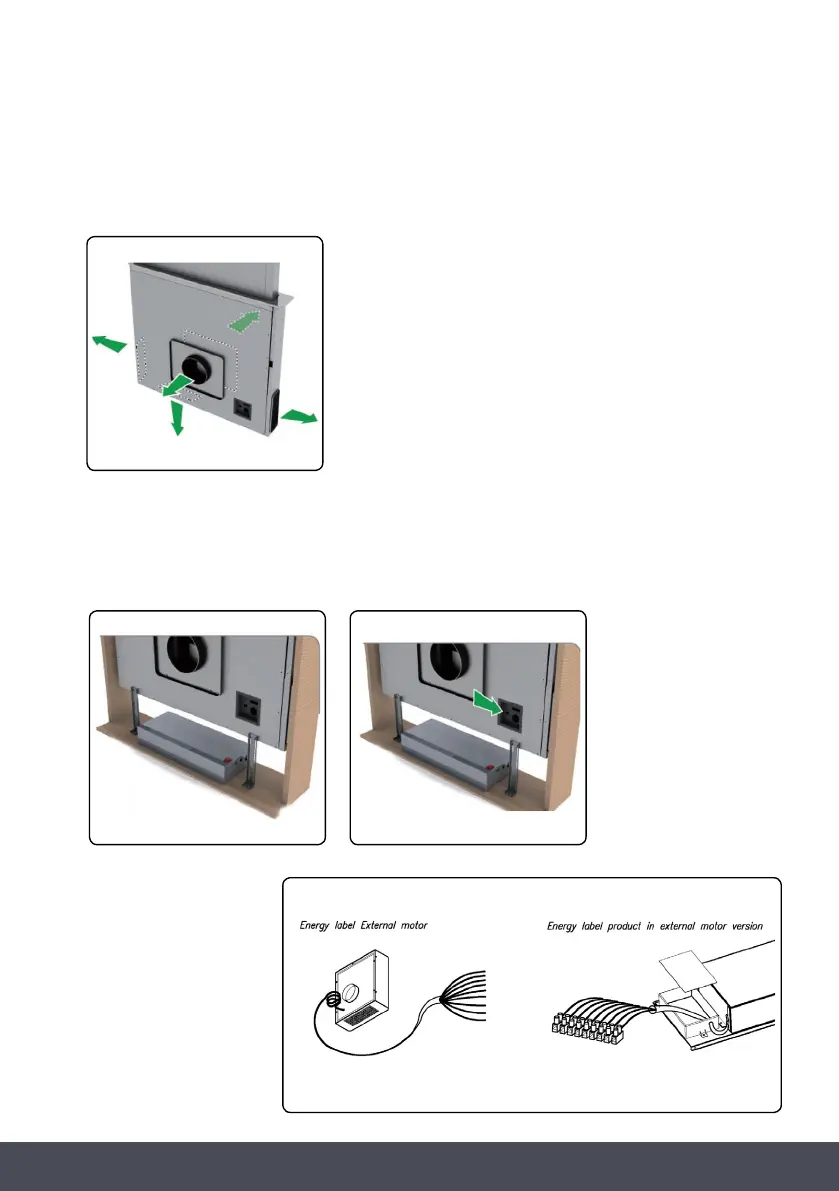

7. If using an external motor, install the motor in the required position, and then fit the ducting
from the motor to the downdraft. There are 5 air duct positions on the downdraft to choose
from (Fig.4).
8. Place the electrical box in an easily reachable area for future maintenance and service
operations (Fig.5). Connect the 3 connections (9 pole connector for the actuator control and
safety control, 4 pole connector for the neon lamp turn on and push button connector) (Fig.6).
9. Connect the motor unit
cable to the relevant
connector on the
electrical components
box (Fig.7).
Fig. 4
Fig. 1
Fig. 5 Fig. 6
Fig. 2
Fig. 3
13
Fig. 4
Fig. 1
Fig. 5 Fig. 6
Fig. 2
Fig. 3
13
Fig. 7
14
Fig. 8
Fig. 9
Fig. 10
Fig. 11
