Caple RiR125 - Built-In Installation

17Instruction manual RiR125Please keep this instruction manual for future reference

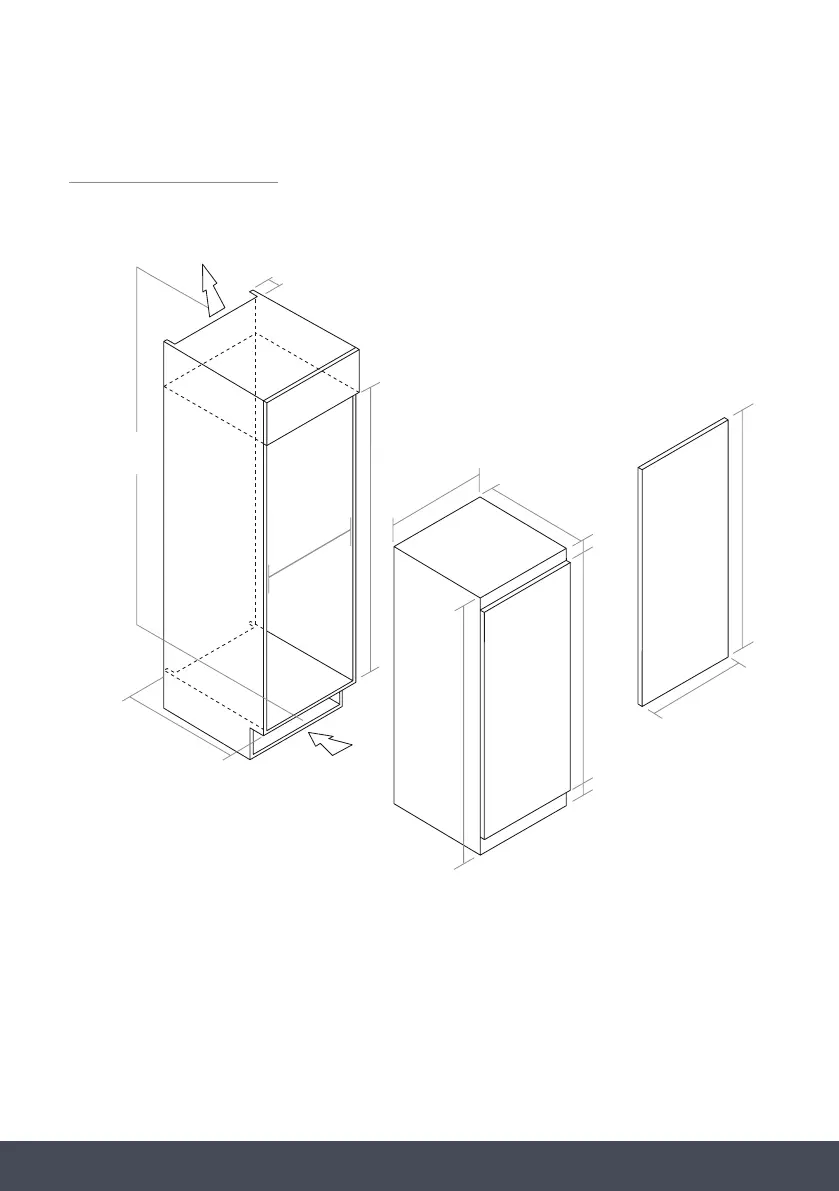

BUILT IN INSTALLATION
NOTE:
The cabinet the appliance is to be housed in must not be enclosed. The back panel of the
cabinetmustberemovedcompletely.Thisistoallowsufcientaircirculationtocooldownthe
condenserunitforenergyefciency.
560mm
1223-1230mm
min 550mm
540mm
595mm
540mm
min. 50mm
1126mm
1221mm
1245mm
36mm
59mm
Ventilation
min 200cm² in plinth
