13Instruction manual ST523 / ST853Please keep this instruction manual for future reference

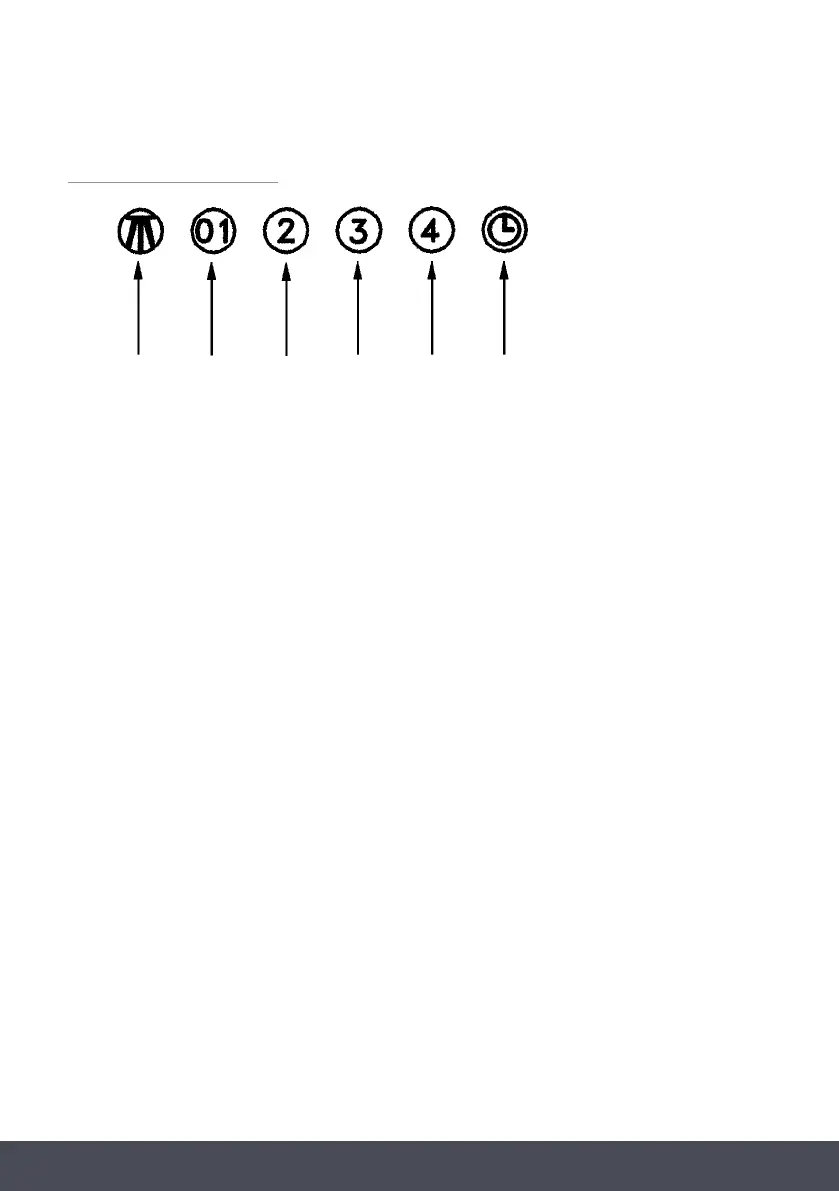

CONTROL PANEL
A. Light switch on/off
B. Motor switch - speed 1 / OFF
C. Motor switch - speed 2
D. Motor switch - speed 3
E. Motor switch - speed 4
F. 10-minute timer
A B C D E
CONTROL PANEL
A: Light switch on/off
B: Motor switch - speed 1 / OFF
C: Motor switch - speed 2
D: Motor switch - speed 3
E: Motor switch - speed 4
F: 10-minute timer
R E A R DUCTED VERSION
› To duct the appliance to the rear, remove the 18 screws from the motor support.
› Take the metal support and motor out (Fig.11).
› Rotate the motor to have the air outlet on the rear side and then fix the screws
previously removed (Fig.12).
FIG.11
FIG.12
