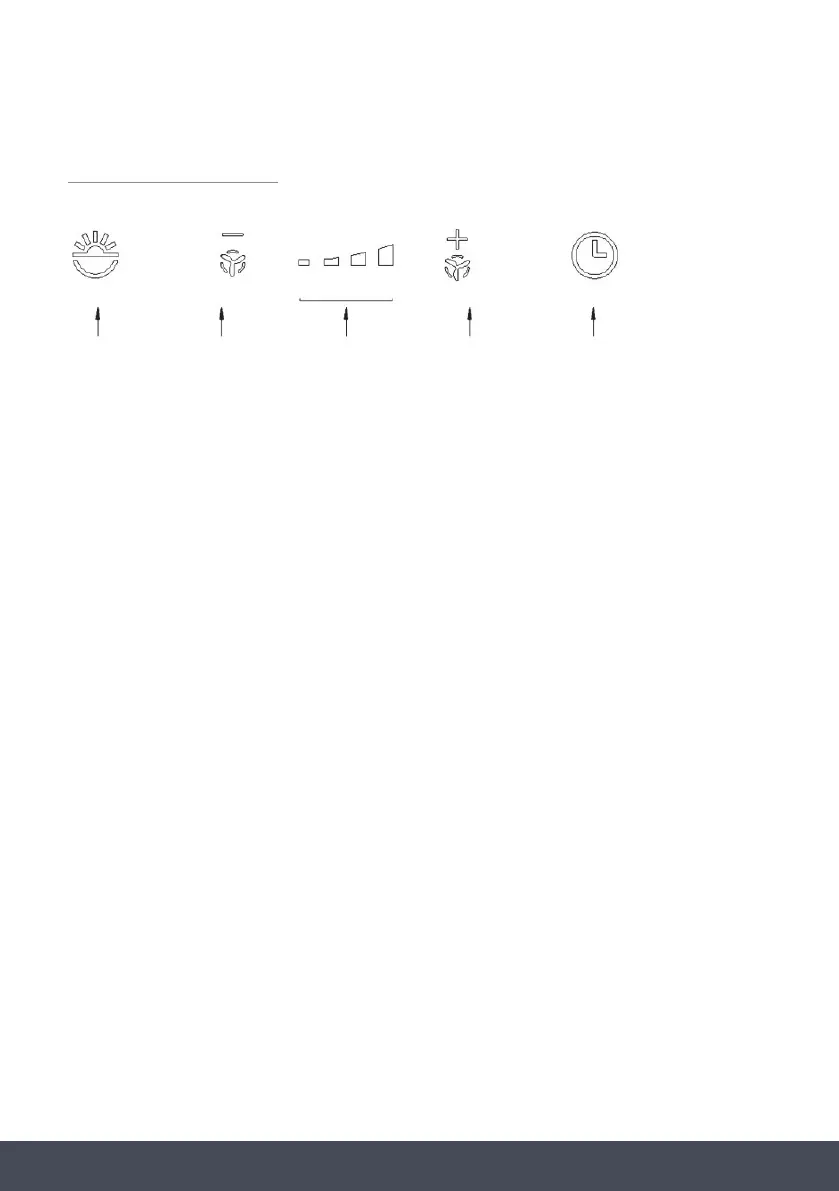

CONTROL PANEL
A. Light switch on/off
B. Reduce speed / OFF motor
C. Motor speed display
D. ON motor/increase speed
E. 10-minute timer
A B C D E
CONTROL PANEL
A: Light switch on/off
B: Reduce speed / OFF motor
C: Motor speed display
D: ON motor/increase speed
E: 10-minute timer
REAR DUCTED
To duct the appliance to the rear, remove the 18 screws from the motor support.
Take the metal support and motor out (Fig.9).
Rotate the motor to have the air outlet on the rear side and then fix the screws previously removed (Fig.10).
9
10
NOTE:
If the electrical power supply to the appliance is cut, allow 15 seconds for the functions to restore properly. In the
meantime, the operation may be incorrect.
The appliance has an electronic device which allows it to automatically switch off after 4 hours working from the last
operation.
NOTE:
If the electrical power supply to the appliance is cut, allow 15 seconds for the functions to
restore properly. In the meantime, the operation may be incorrect.
The appliance has an electronic device which allows it to automatically switch off after 4 hours
working from the last operation.
