9. Route the gray spindle power cable exiting the side of the VFD controller through the drag chains.
See Fig. 6.
a. The spindle power cable’s screw-on connector and about 14 inches of cable should extend
beyond the head of the X-Axis drag chain.
b. The VFD controller will be at the tail of the Y-Axis drag chain.

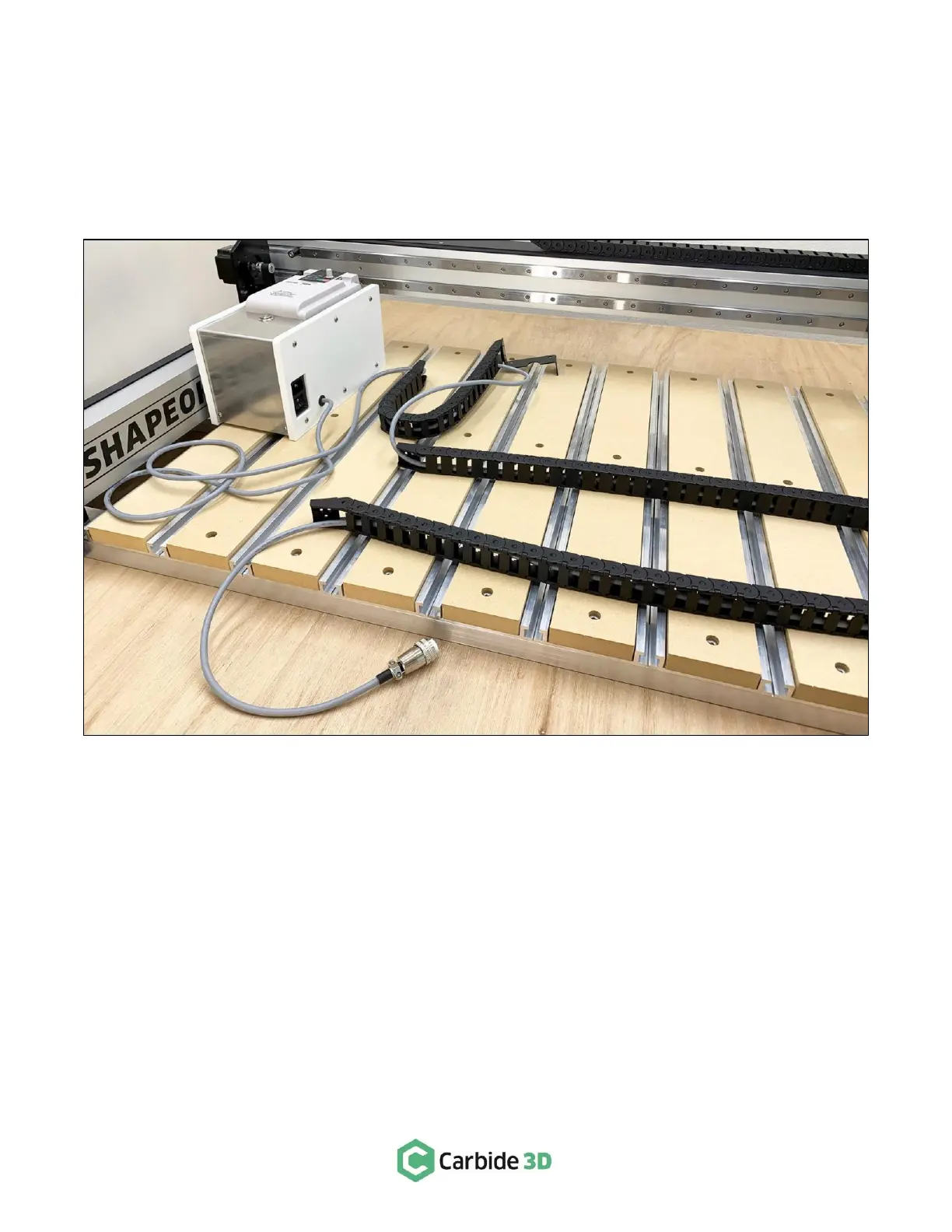

Figure 6
