7. EXECUTION OF THE EXAMINATION
27

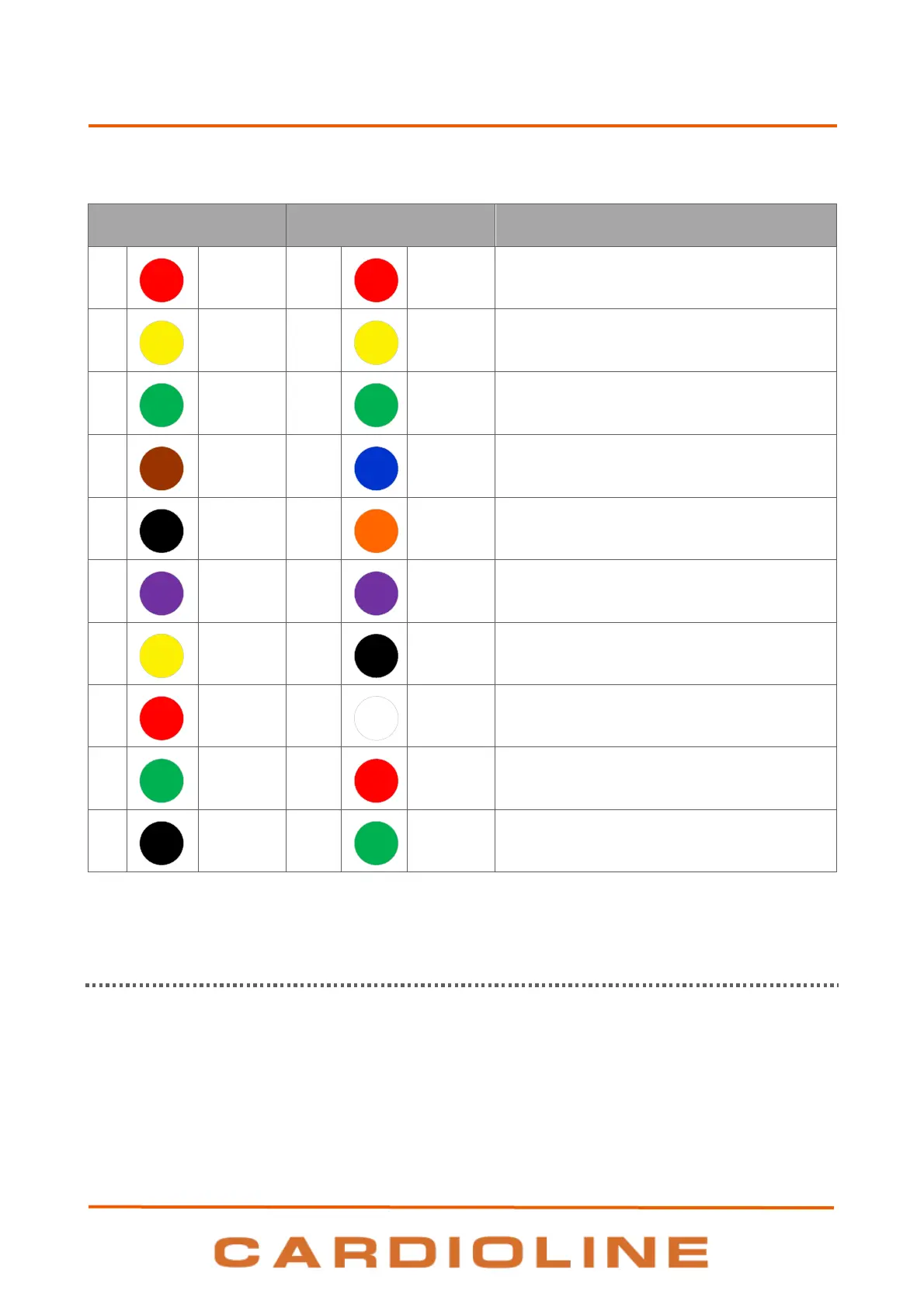

Reference table for the connection to the patient
Fourth intercostal space to the right of the
sternum.
Fourth intercostal space to the left
of the sternum.
Midway position between electrodes V2/C2
and
V4/C4.
Fifth intercostal space at midclavicular line.
Between electrodes V4 and V6.
Level with electrode V4 at left midaxillary line.
On the deltoid muscle, the forearm and wrist.
On the deltoid muscle, the forearm and wrist.
On the thigh or the ankle.
On the thigh or the ankle.
7.3. ECG acquisition
Use the LED indicator to check the proper connection between the HD+ and the receiver.
The LED flashing indicator signals that the HD+ is attempting to connect to the receiver but is not yet
connected. The steady LED indicator signals that the HD+ is properly connected to the receiver.
Follow the instructions contained in Chapter 6 to prepare the device. Specifically:
1. Insert two AAA batteries into the dedicated compartment. If the battery is too low, the HD+ may not
power on. Insert two new batteries into the device to continue the operation.
