easy way ARIA +030220841 - rel. 1.0 - 26.10.2007

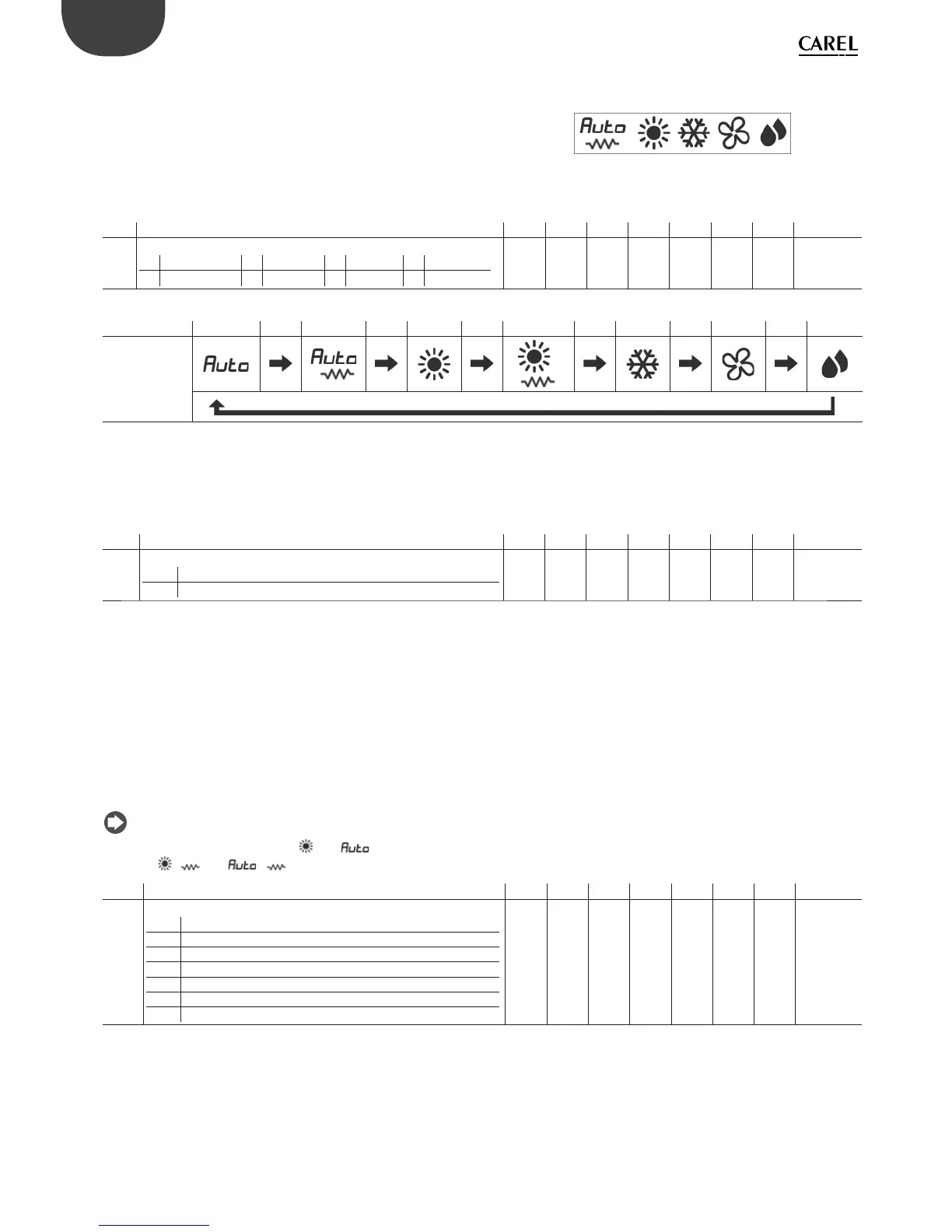

MODE /ON-OFF button (1)
The button is used to:
CHANGE THE DESIRED OPERATING MODE, CYCLICALLY.•
SWITCH THE UNIT ON/OFF•
MODE
Each operating modes is associated with a symbol on the display.
Fig. 4.c.a
The operating mode can be read/written from the supervisor.
par. description min max def um type index R/W notes
-
Activate operating mode:
0 AUTO 2 COOL 4 FAN 6 HEAT+RES
1 AUTO+RES 3 DRY 5 HEAT
0 6 0 I 5 R/W
-
MODE AUTO
AUTO + RES
HEAT
HEAT + RES
COOL FAN DRY
loc 17 = 0
+
+
Tab. 4.b
Heater
par. description min max def UOM type index R/W notes
loc 16
Heater status
0/OFF not  tted
1/ON  tted
OFF ON 0 - D 14 R/W
password
access
The parameter is used to enable/disable the use of the heater for AUTO
and HEAT modes.
The terminal does not control the status of the heater, but rather tells the
supervisor whether it is enabled for the assigned modes.
Skip mode
Parameter loc17 can be used to disable the management of some
modes.
Note: the following examples are without the heater (loc 16 =
OFF).
Hereinafter in the manual, the symbols
and will also cover, for
simplicity,
+ and + .
par. description min max def UOM type index R/W notes
loc 17
Modes allowed with MODE button
0 complete functions
1 manual only
2 manual only limited to cooling heating auto
3 manual only limited to cooling (sun) heating (snow)
4 manual only limited to cooling (sun)
5 manual only limited to heating
6 Sleep timer setting
0 6 0 - I 17 R/W
password
access
