17
GB
easy way ARIA +030220841 - rel. 1.0 - 26.10.2007

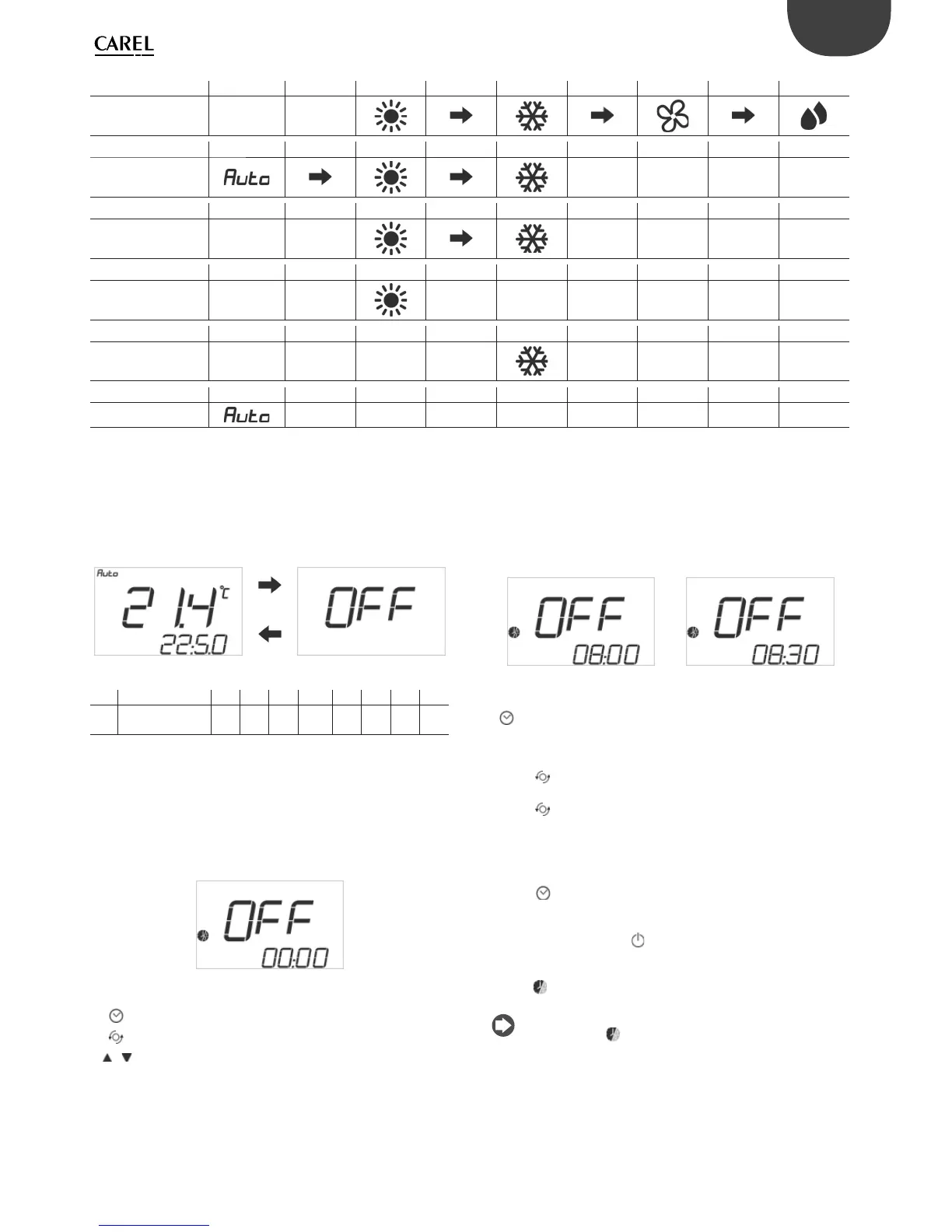

MODE HEAT COOL FAN DRY
Loc 17 = 1
MODE AUTO HEAT COOL
Loc 17 = 2
MODE HEAT COOL
Loc 17 = 3
MODE HEAT
Loc 17 = 4
MODE COOL
Loc 17 = 5
MODE AUTO
Loc 17 = 6
Tab. 4.c
ON/OFF
Button pressed and held for 3 sec
Button pressed once
par. description min max def UOM type ind. R/W note
- ON/OFF 0
OFF
1
ON
0 - D 6 R/W
Clock button (2)
The button is used to set:
The time bands.•
The clock •
Fig. 4.c.b
Key:
Select band number
Select HOUR, MINUTES and ON/OFF/TEMP elds
Set the value of the eldsi
Terminal time bands
The terminal can save up to two daily events with the automatic
changeover of the ambient settings at set times.
Fig. 4.c.c Fig. 4.c.d
Key:
enter time band setting mode by pressing once
Band 1 can now be programmed, with hour digits ashing
Enter the start hours for band 1 using the UP and DOWN buttons1.
Press 2.
to select MINUTES
Enter the start minutes for band 1 using the UP and DOWN buttons3.
Press 4.
to select ON/OFF/TEMP
Enter the action of band 1 using the UP and DOWN buttons5.
OFF•
ON•
Temperature set point: 8 °C to 32 °C•
Press 6. to select band 2 and repeat steps 1 to 5
To exit the time band setting mode:
by time around 30 s after the last button was pressed•
manually by pressing •
The enabling of the time bands is indicated in normal operation by the
symbol
and the number of the band that is active at that time.
Note: from when programming until the expiry of the rst band,
only the symbol
without indicating the number of the
active band.
