A4: Set attivazione resistenza antigelo/ resistenze di
appoggio
Determina la soglia sotto la quale vengono accese le
resistenze di antigelo. La funzione di accensione delle
resistenze antigelo è attiva anche quando la macchina
è in stand by. Nelle unità Aria/Aria (H1=0, 1) rappresenta
il valore di temperatura sotto il quale si attivano le
resistenze di appoggio; la funzione non è attiva quando
la macchina è in stand by. Nella pompa di calore Aria-
Aria (H1=1) le resistenze di appoggio non vengono
utilizzate in modalità Estate.
A5: Differenziale resistenze antigelo/resistenze di
appoggio
Differenziale per l'attivazione e la disattivazione delle
resistenze antigelo (di appoggio nelle unità Aria/Aria).
A6: Sonda resistenze di appoggio
Determina la sonda da utilizzare (B1 o B2) per
controllare le resistenze di appoggio. Il significato del
parametro è il seguente:
Valore Selezione
0B1
1B2
Con macchina H1=6 la sonda delle resistenze diventa
B2; con H1=5 in riscaldamento la sonda diventa B3.
A7: Limite set allarme antigelo
Stabilisce il limite minimo utilizzabile per l’impostazione
del set allarme antigelo (A1)
A8: Set resistenze appoggio in riscaldamento
Determina la soglia sotto la quale vengono accese le
resistenze di appoggio. Questa funzione è attiva solo
con le macchinedi riscaldamento. Con H1=5, 10 in
riscaldamento la sonda diventa B3.
A9: Differenziale resistenze appoggio in riscaldamento
Differenziale per l'attivazione e la disattivazione delle
resistenze di appoggio (vedi A8).
A4: Set-point for the activation of antifreeze/
supporting heaters
Indicates the threshold below which the antifreeze
heater will be activated (also when the unit is in
standby). In Air/Air units (H1=0, 1), it represents the
temperature below which the support heaters are
activated; this function is not active when the unit is
in stand-by.
In the Air/Air heat pump (H1=1), the support heaters
are not used in Summer operating mode.
A5: Antifreeze/Support heaters differential
It indicates the differential controlling the ON/OFF
status of the antifreeze heaters (support heaters in
Air/Air units).
A6: Support heaters probe
It indicates the probe to be used (B1 or B2) for the
control of support heaters. The meaning of the para-
meter is as follows:
Value Selection
0B1
1B2
With H1=6 the heater probe is B2; with H1=5
in heating function the probe is B3.
A7: Antifreeze-alarm set
Sets the minimum limit that can be used to select the
antifreeze-alarm set (A1)
A8: Heating support-resistance set
Sets the threshold below which the support resistances
are switched on. This function is active only with the
heating machines. With H1=5, 10 in heating function
the probe is B3.
A9: Heating support-resistance differential
Energising and deenergizing differential of the support
resistances (see A8).

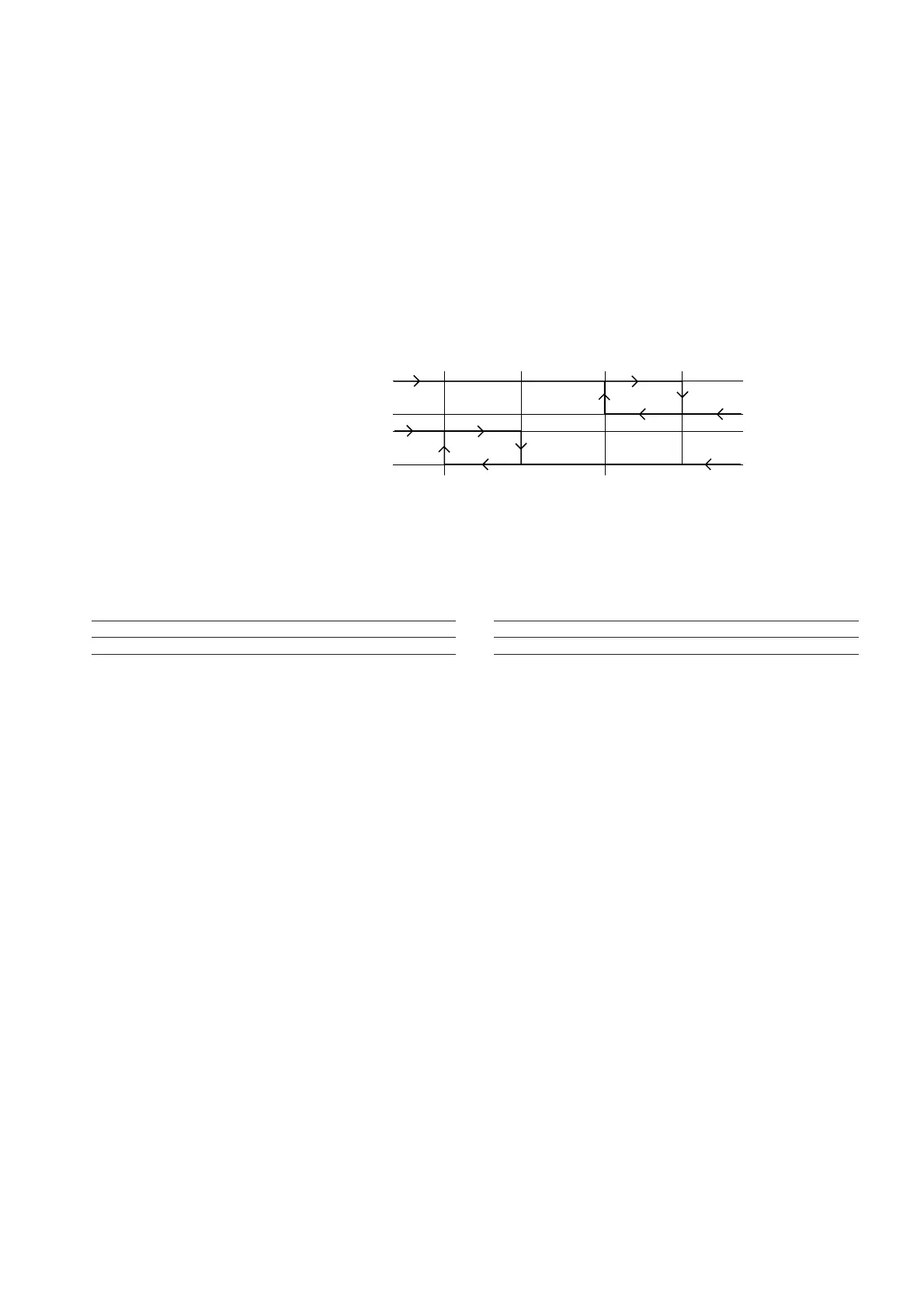

Sonde NTC Carel (Modalità H1=2, 3, 4, 5 e 6)
Carel NTC Probes
Differ. Allarme antigelo (A2)
Antifreeze alarm differen.
Resistenze
Heaters
Set allarme antigelo (A1) / Antifreeze alarm Set Point
Differ. resistenze antigelo (A5)
Antifreeze heaters differen.
Set resistenze antigelo (A4) / Antifreeze heaters Set Point
Allarme antigelo
Antifeeze alarm
A1
A4
t
t
ON
OFF
ON
OFF
