Insert the Battery Into the Detector
1. Place a fully charged battery in the battery footprint in the detector so that the
contacts on the back edge of the battery are inserted first. The battery fits into the
detector only one way. See the CARESTREAM DRX-1 System Battery and DRX Detector
Battery User Guide for technical information about the battery.
2. Push the battery down firmly until the latch catches.

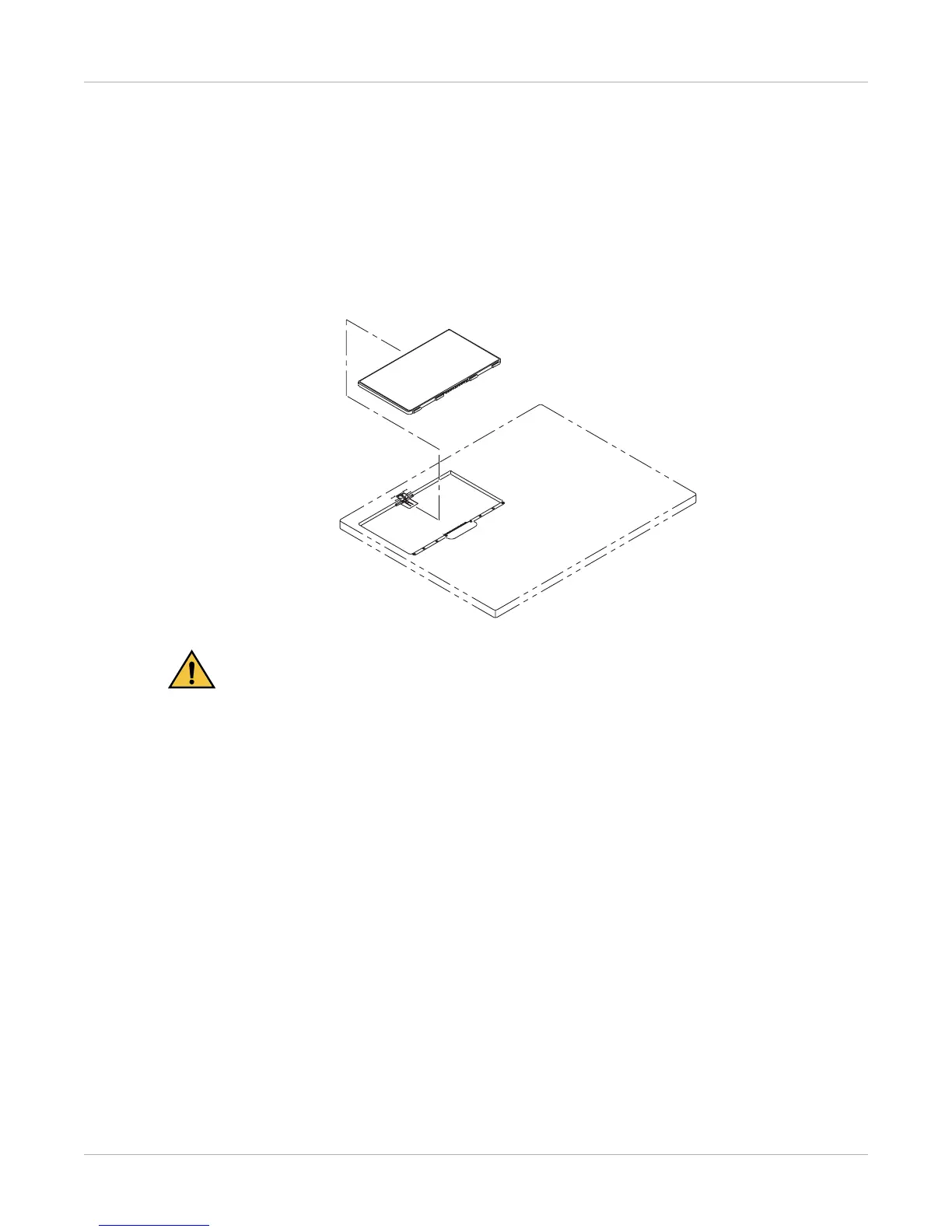

Figure 5:
Caution
• Use only the CARESTREAM DRX-1 System Battery in the DRX-1 and DRX-1C System
Detectors.
• Use only the CARESTREAM DRX Detector Battery in the DRX 2530C Detector.
