Carinci evolution - 3.0 FLUE

10

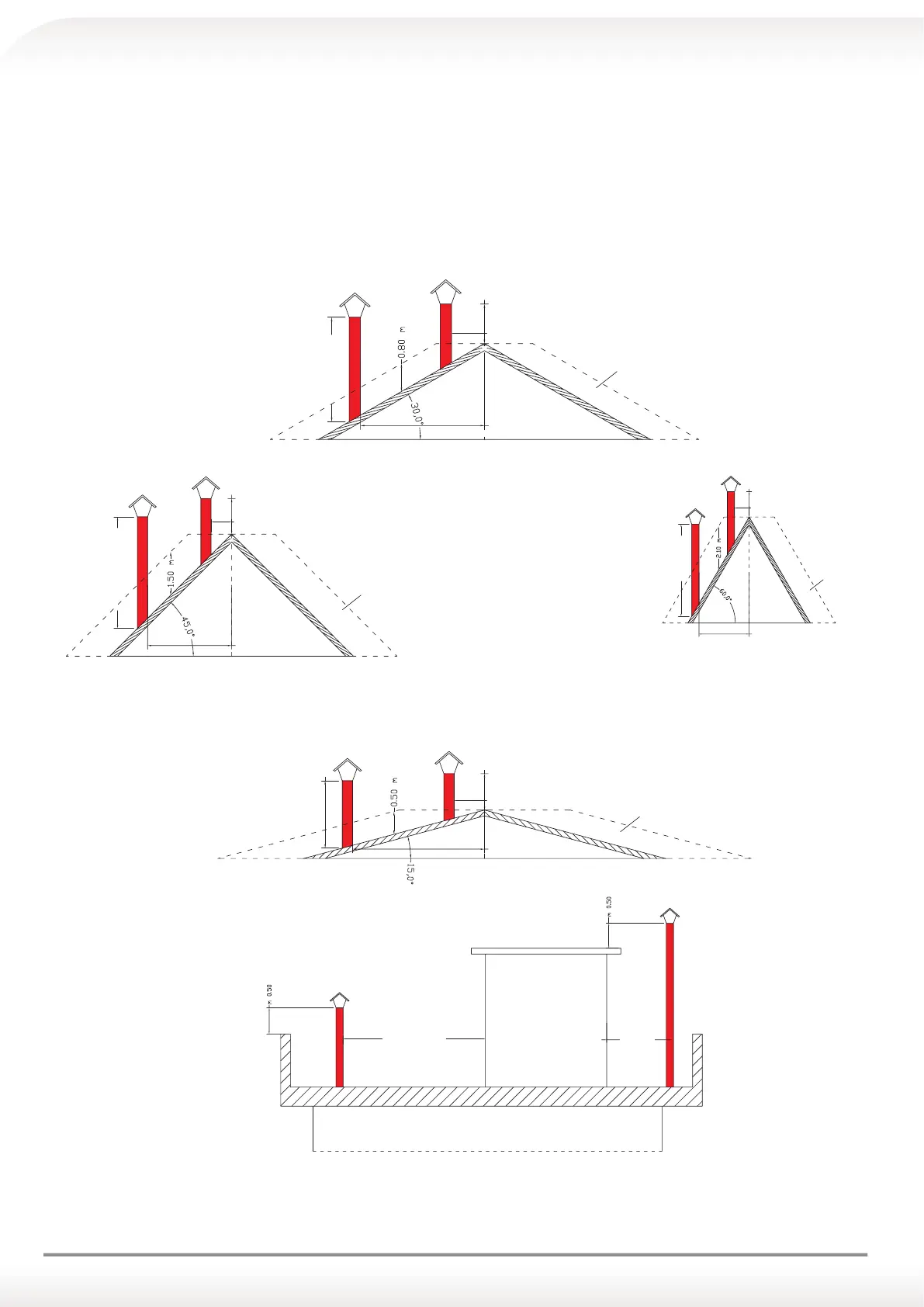

e) roof at 45°
0,50 m - over the ridge
distance
≤ 1.50 m
distance > 1.30 m
2 m - minimum
reux area
d) roof at 60°
0,50 m - over the ridge
distance ≤ 1.30 m
distance > 1.20 m
2.6 m - minimum
reux area
c) roof at 30°
0,50 m - over the ridge
distance
≤ 1.30 m
distance > 1.30 m
1.20 m minimum
reux area
b) roof at 15°
0,50 m - over the ridge
distance ≤ 1.85 m
distance > 1.85 m
1 m - minimum
reux area
TECHNICAL
VOLUME
a) at roof
distance
≤ 5 m
distance > 5 m
3.0 FLUE (in compliance with Regulation UNI cig 7129/92)
The flue is an important component for the heating system with a wood-burning thermo fireplace. Its function is not
only to evacuate and disperse the fumes, but also to ensure, thanks to an excellent draft, the proper functioning of the
Thermo Fireplace with its natural draft.
