Carinci evolution - 5.1 SYSTEM TECHNICAL SPECIFICATIONS AND DIMENSIONS

15

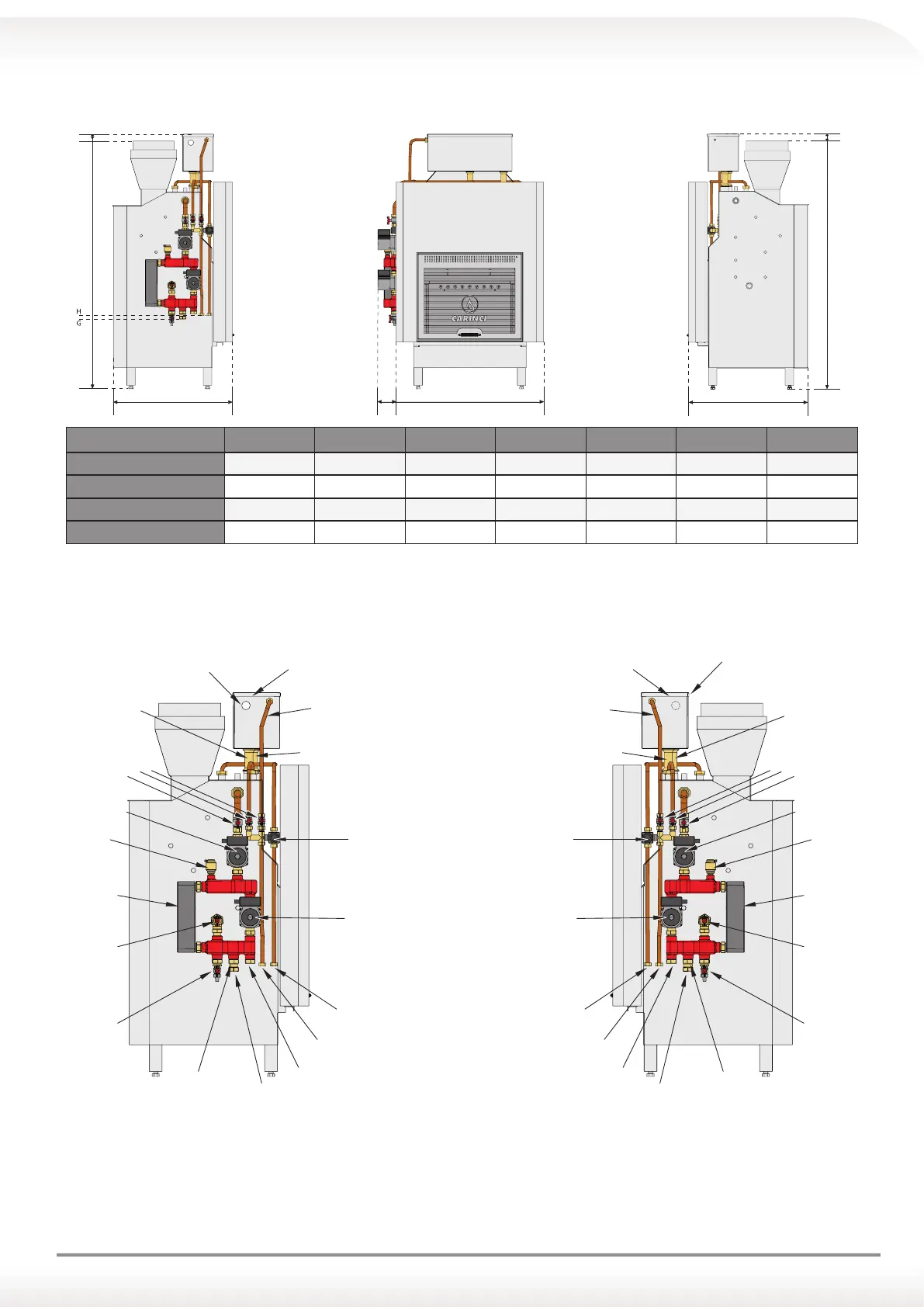

5.1 TECHNICAL SPECIFICATIONS AND DIMENSIONS OF THE THERMO FIREPLACE CARINCI EVOLU-
TION SYSTEM
A
EC
B
B
DD
A
Model A B C D E G H
SYSTEM 150 71 142 (± 2) 8 9.5 (± 2) 77 40 (± 2) 43 (± 2)
SYSTEM 200 71 148 (± 2) 8 4 (± 2) 88 40 (± 2) 43 (± 2)
SYSTEM 250 71 153 (± 2) 8 0.5 (± 2) 99 40 (± 2) 43 (± 2)
SYSTEM 300 71 157 (± 2) 8 4 (± 2) 110 40 (± 2) 43 (± 2)
Measurements are expressed in cm
5.2 KIT SYSTEM POSITION ON THE THERMO FIREPLACE CARINCI EVOLUTION
KIT SYSTEM left side KIT SYSTEM right side
expansion tank
in stainless steel
thermostatic
domestic
water
Domestic hot water
outlet mixed
Domestic hot water
outlet mixed
Cold water inlet Cold water inlet
Heating system ow Heating system ow
Heating system return Heating system return
load pipe
expansion tank
load pipe
expansion tank
load pipe
thermo replace
load pipe
thermo replace
Safety pipe
thermo replace
Safety pipe
thermo replace
output overow pipe
expansion tank
in stainless steel
output overow pipe
ball
valves
ball
valves
non-return
valve
non-return
valve
vent
valve
vent
valve
ball
valve
ball
valve
drain
cock
drain
cock
Brazed plate
heat
exchanger
Brazed plate
heat
exchanger
circulator n. 1 circulator n. 1
circulator n. 2
thermostatic
domestic
water
circulator n. 2
N.B. KIT SYSTEM can be installed on both the right and left side of the thermo fireplace (looking at
the thermo fireplace frontally).
