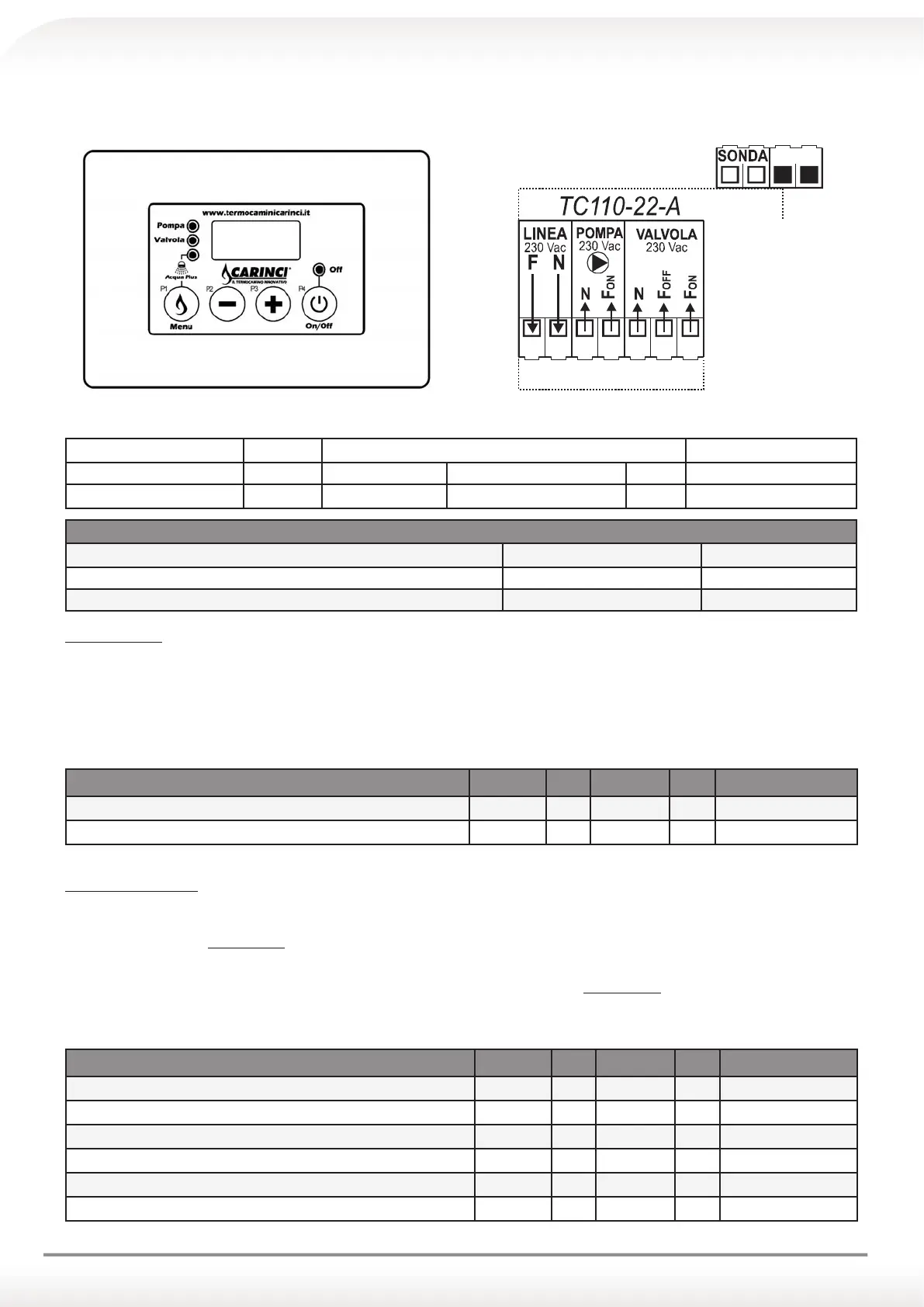

Fig. 1 External appearance and power linkage diagram
INPUTS PROBE Thermo fireplace probe : Temperature range 0 - 100 ° C
OUTPUTS PUMP System pump 230 Vac power supply clips 3(N) - 4 (Fon)
VALVE valve 230 Vac power supply Clips 5(N) - 6 (F
OFF) - 7 (FON)
RECOMMENDED VALUES SETTING ON THERMOSTAT
Min Max
Thermostat HEATING PUMP 53 °C 57 °C
Thermostat SANITARY WATER VALVE 40 °C 45 °C
MAIN Menu
By pressing and holding for about 5 secs. P1 button (MENU) it is possible to scroll set thermostats values signalled by the flashing of the respective
LED associated.
For editing:
Navigate to the value of the thermostat to modify;
Use the buttons P3 (+) and P2 (-) to increase/decrease the value;
To save changes, wait about 5 secs. or scroll through the values with the P1 button (MENU)
MAIN Menu Parameters Symbol Min Factory Max Installed values
Thermostat PUMP 1 [°C]
A 07
20
50
85
Thermostat VALVE [°C]
A 05
20
42
85
INSTALLER Menu
The access to this menu is LIMITED TO TECHNICIANS OR TRAINED PERSONNEL, since some parameters, if modified, can make the product no
longer suitable for the application in use.
To access the menu, press simultaneously P1(MENU) P4 (ON/OFF) buttons for about 5 seconds;
To scroll through the parameter labels use P3 (+) and P2 (-) buttons;
To display the parameter value, press P1(MENU) button;
To change the value press P3 (+) and P2 (-) buttons and P1(MENU) P4 (ON/OFF) buttons simultaneously for about 5 seconds;
To redisplay the list of parameters and store press P1(MENU) button;
To exit and save wait approximately 5 seconds.
INSTALLER Menu Parameters Symbol Min Factory Max Installed values
Activation thermostat ALARM function [°C]
A 01
85
90
99
SAFETY thermostat [°C]
A 02
20
85
90
ANTIFREEZE Activation thermostat [ICE] [°C]
A 03
4
6
8
Hysteresis thermostat PUMP [°C]
A 04
1
2
5
ANTI-LOCK timer [h]
t 01
1
168
999
ANTI LOCK pump activation time [sec]
t 02
0
20
99
6.20 ELECTRONIC CONTROL UNIT OF THE THERMO FIREPLACE CARINCI
Control unit instruction manual mod. TC 110-22-A
