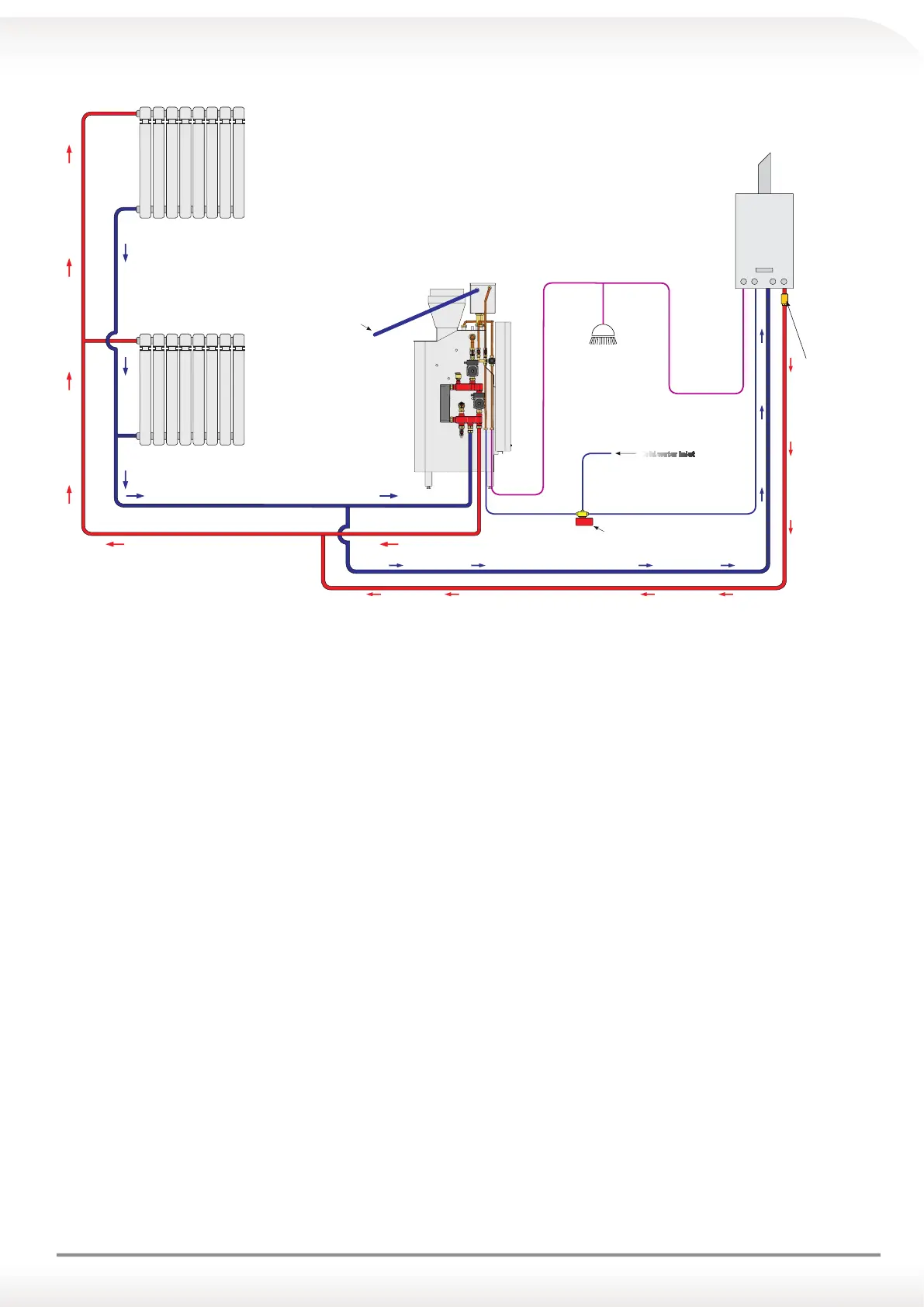

INSTALLATION DIAGRAM: CARINCI SYSTEM COMBINED WITH A GAS BOILER (figure B)
motorized valve
non-return
valve
boiler return
boiler ow
BOILER
Heating system ow
Heating system return
output overflow pipe
Domestic hot
water outlet mixed
Cold water inlet
