FUNCTIONALITIESS
1. Start-up/Shut down:
• Start-up/shut down of the control unit can be carried out pressing and holding the P4 (ON/OFF) button;
• The OFF state is indicated by the OFF led.
2. ALARM function;
If the temperature detected by the PROBE exceeds the Alarm thermostat A01 value
• The system activates the audible and visual signalling;
• SILENCE function: the acoustic signal can be turned off for 5 min by pressing any button;
• After this amount of time has passed, if the alarm condition persists, the acoustic signal is activated again.
3. ANTI-FREEZE function:
If the temperature detected by the PROBE falls below the value of the A03 anti-freeze thermostat
• PUMP 1 and PUMP 2 outputs will be activated
• The display will show ICE
4. STANDBY function:
In case of OFF device or in conditions of ALARM or FREEZE
• The device automatically switches to the ON state.
5. PUMP ANTI-LOCK function [PUMP 1 and PUMP 2]:
In case of inactivity of the circulator for a time greater than the anti-lock timer T01 (one week)
• PUMP output will be activated for T02 seconds.
• The display will show bLP
• This function is also active in STANDBY.
6. Function TEST PUMP 1:
By pressing and holding P2 (-) button
• PUMP output will be activated for as long as the button is pressed;
• The display will show tSt.
7. Function TEST PUMP 2:
By pressing and holding P3 (+) button
• PUMP output will be activated for as long as the button is pressed;
• The display will show tSt.

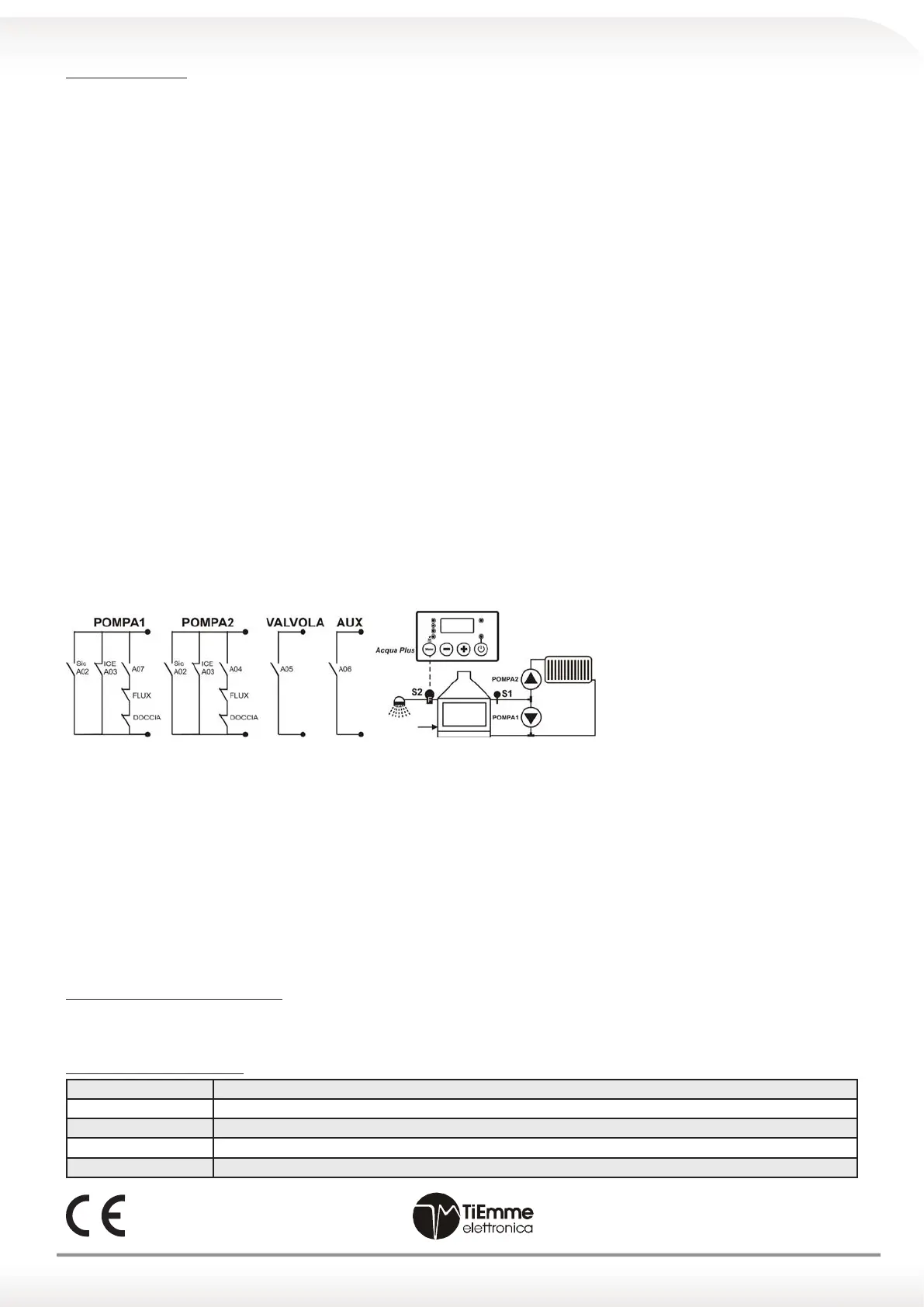

8. OUTPUT function:
9. ACQUAPLUS function
Through the simple click of P1(MENU) button
• PUMP output will be deactivated until the SAFETY (A02) temperature of 85°C is reached, after reaching this temperature PUMP output
will be activated until reaching the temperature of 80°C;
• To deactivate the ACQUAPLUS function press the P1(MENU) button again.
10. FLOWMETER function
The closure of the input of the FLOWMETER determines:
• The deactivation of PUMP 1 and PUMP 2 outputs.
• The closure of the FLOWMETER can be seen on the display with the dash at the top right and led blinking PUMP 1 and PUMP 2 if acti-
vated.
• To deactivate the ACQUAPLUS function press the P1(MENU) button again.
11. SAFETY function
If the temperature exceeds the thermostat SAFETY A02 (default 85°C) activation of the outputs PUMP 1 and PUMP 2 will be forced. If the tem-
perature drops to 80°C the SECURITY function will be switched off.
REPORTS OF FAILURE OR ALARMS
The control unit sends fault reports to the probe with the following records:
Lo: indicates an off-scale down (temperature below 0°C): Probe interrupted
Hi: indicates an off-scale upward (temperature above 100°C): Probe in short-circuit
TECHNICAL SPECIFICATIONS
Power supply 230 Vac ± 10% ~ 50 Hz; Safety fuse T3,15 A
Power Consumption 2VA~
Temperature probe In silicone cable/pvc; Operating Temperature: -50°C/130°C; Limits of measurement: 0 - 99°C Precision: ± 1 °C
Outputs
PUMP1/PUMP2/VALVE output: 230 Vac power supplied max flow rate 5A 250 Vac
Mechanical dimensions Built-in heat regulator: 120 x 80 x 50 [mm]
Applied regulations:
EN 60730-1 50081-1
EN 60730-1
A1 50081-2
TiEmme elettronica
06055 Marsciano (PG) Italy
tel/fax +39.075.874.3905
www.tiemmeelettronica.it - info@tiemmeelettronica.it
