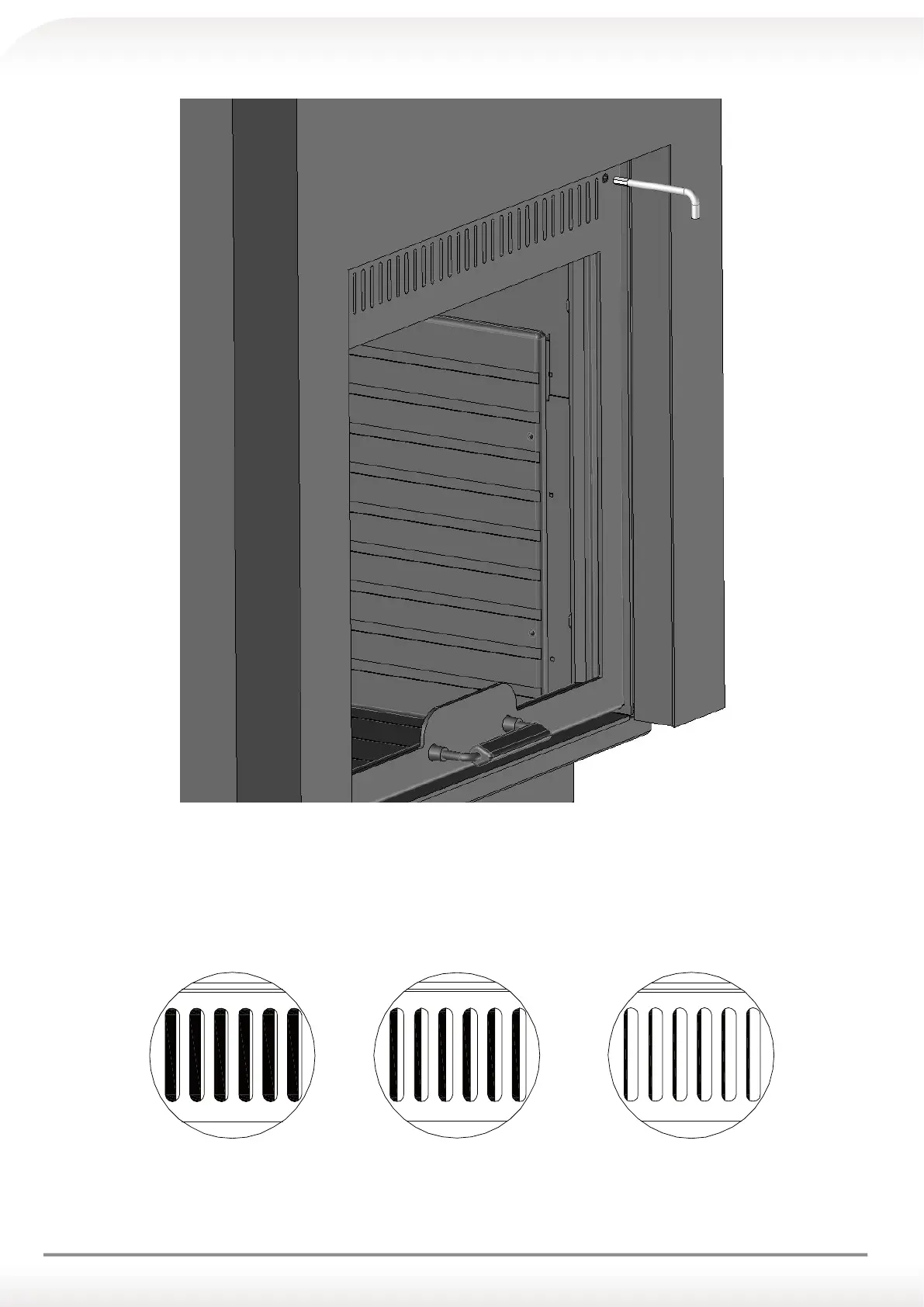

AIR THROTTLER (GLASS SCREEN)
b) If the flame is too powerful, unscrew using the hexagonal key in order to narrow the air throttler rings, decreasing the
inlet air and thus slowing down the combustion;
d) If the flame is too weak, screw using the hexagonal key, in order to widen the air throttler rings, increasing the inlet air
and thus increasing the combustion;
SETTING EXAMPLE
low heat
(minimum air passage)
medium heat
(average air passage)
high heat
(maximum air passage)
