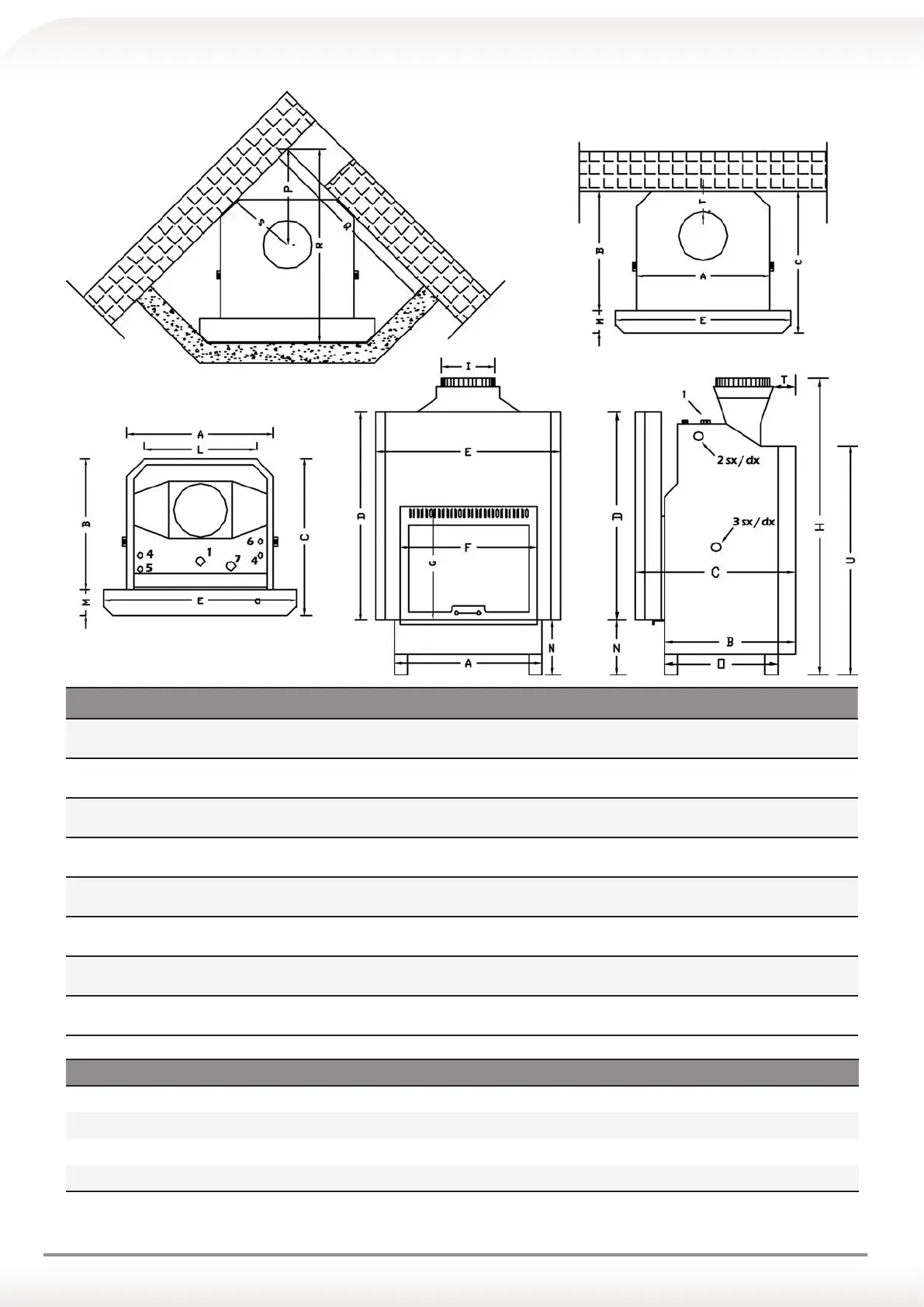

14.0 TECHNICAL DATA
Nr. Thermo Fireplace Connections Mod. 140 - 190 - 240 - 290 Type of junction Ø
1 Safety exit Female junction 1”1/4
2 sx/dx Heating system flow Female junction 1”1/4
3 sx/dx Heating system return Female junction 1”1/4
3 sx/dx Filling pipe Female junction 1”1/4
4 Probe junction Female junction 1/2
5/6 Hot sanitary water outlet Male junction 3/4
6/5 Hot sanitary water inlet Male junction 3/4
7 Filling pipe (System) Female junction 1”1/4
Model A B C D E F G H I L M N O P Q R S T U
150
56 60 71 95 77 52 55 142 25 40 11 27 52 43 89 89 30 11 109
200
67 60 71 95 88 63 55 148 25 51 11 27 52 48 97 97 34 11 109
250
78 60 71 95 99 74 55 153 25 62 11 27 52 53 105 105 38 11 109
300
89 60 71 95 110 85 55 157 25 73 11 27 52 58 113 113 42 11 109
