3. Installation instructions:

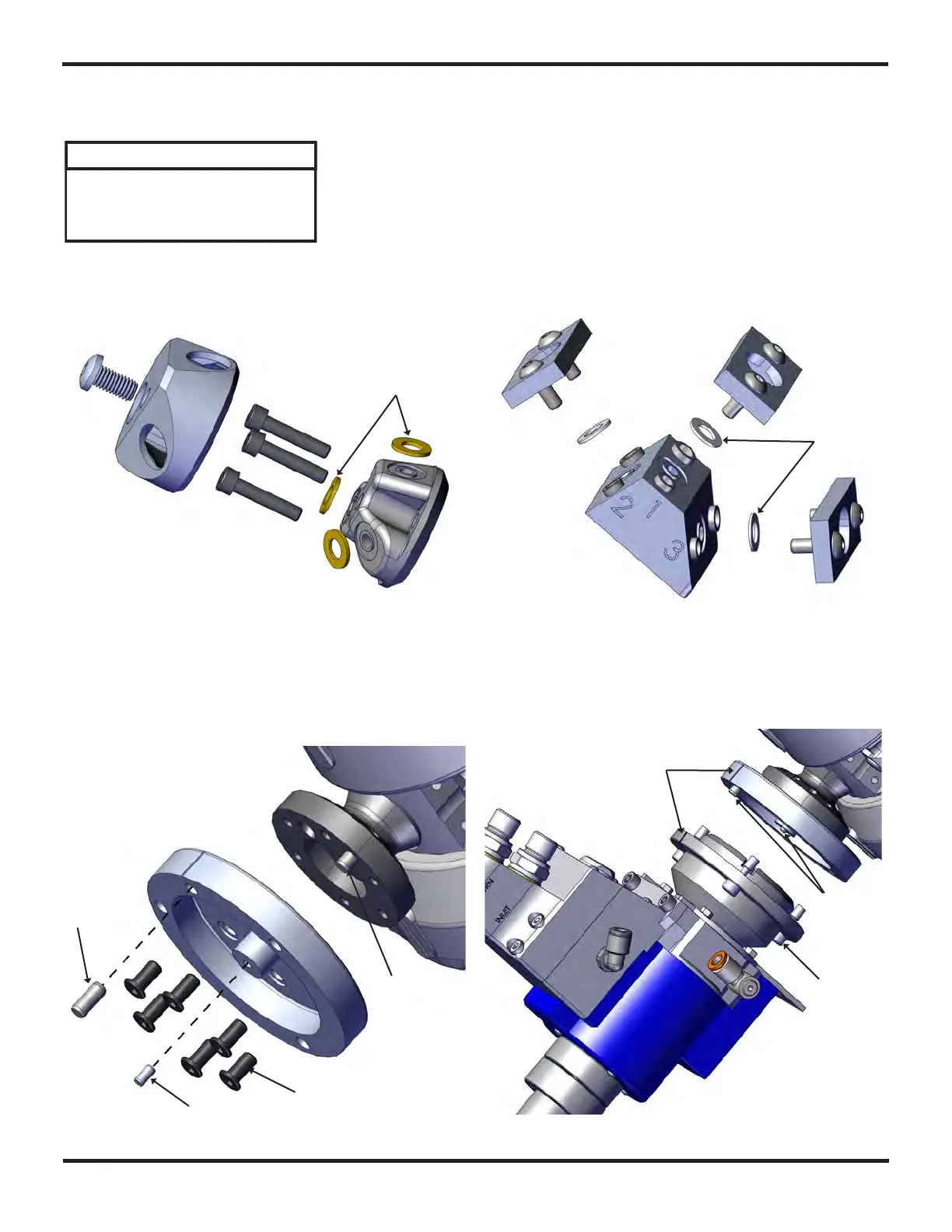

Before installing the nozzles, it is important to check that the nozzle packings are in their correct positions
(1).
Fasten the mounting flange to the 6th axis of the robot using the 6 screws with low heads (2), make sure
the pin (3) is in the correct position. Align the applicator with the two pins (4) in the mounting flange and
then fasten the applicator using the three screws (5). Use the markings to align the applicator and the
flange (6).
1
1
4
4
3
2 [5 Nm]
4
5 [6.5 Nm]
6
The mounting flange and the swivel lock are
only for illustration. Both are depending on
the robot manufacturer and type.
NOTE
