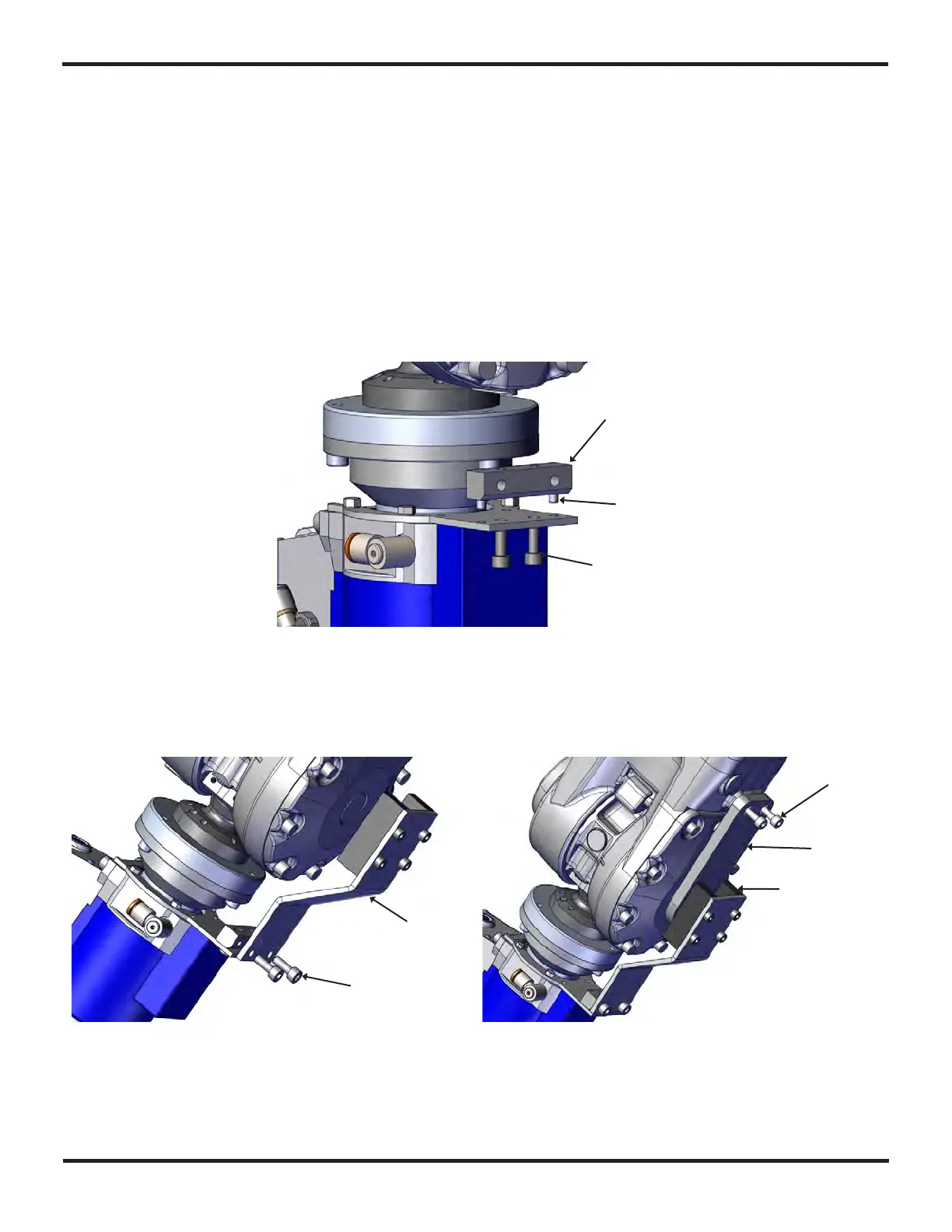

Mount the block (1) to the plate using the two
screws (2) note the two guide pins (3).
Mount the swivel lock applicator bracket (4) with
the two screws (5).
Guide the robot bracket (6) into place in the sliding
block (7) then fasten it with the two screws (8).
3. Installation instructions:
The next step in installing the applicator is the swivel locking bracket. The installation instructions on this
page show how to install the standard swivel locking bracket. (instructions are shown with an ABB robot
and the mounting flange and swivel lock are for illustration purposes)
1
3
2 (6,5 Nm)
4
5 [6.5 Nm]
6
8
[6.5 Nm]
7
