Be sure to store all removed parts in a safe place.
5. Disassembly instructions:

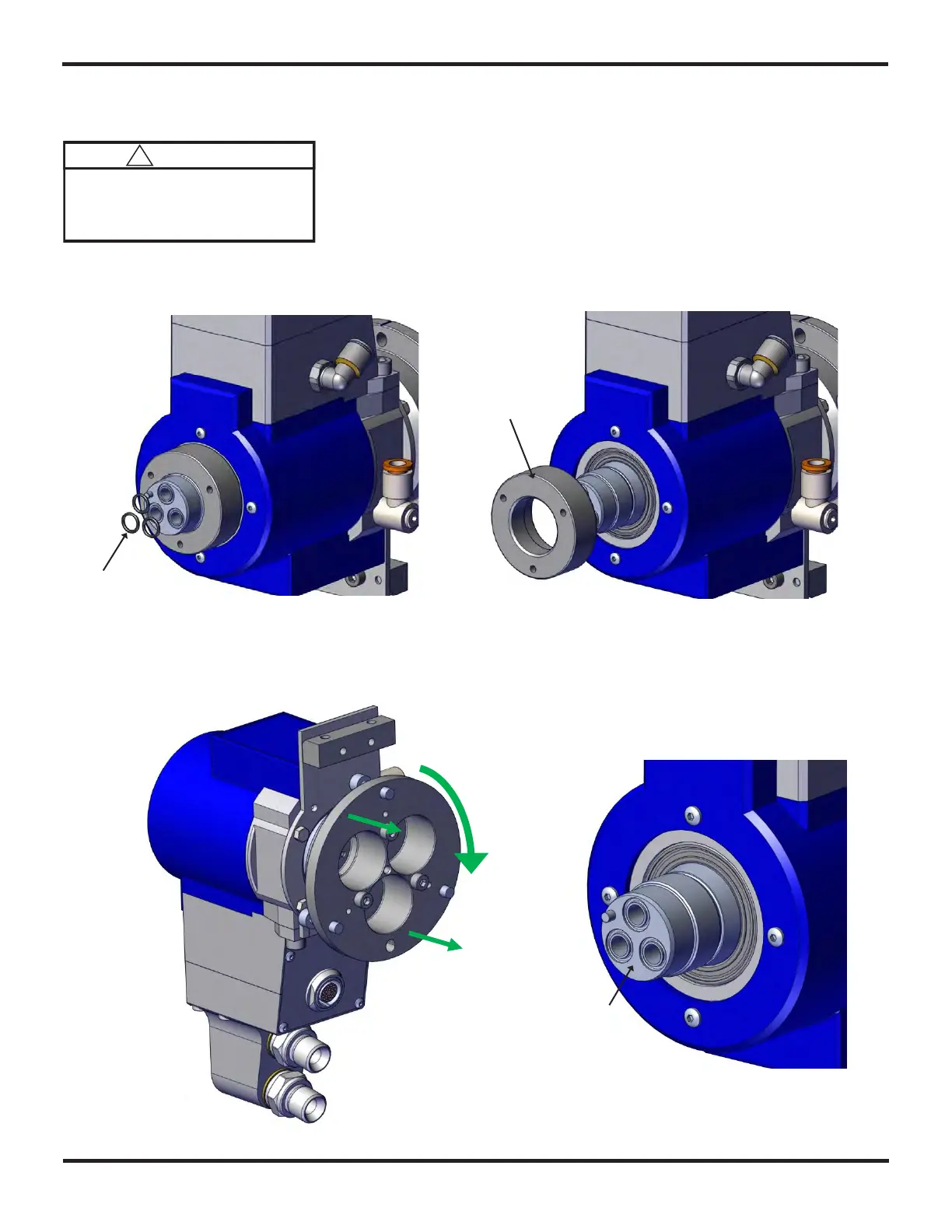

Remove the three O-rings (1) then unscrew and remove the second piece of the lock ring (3).
Separate the central body axis and cylinder block from the swivel housing by first rotating (4) then pull it
out (5).
Important! Do not use a tool to hammer on the central body axis side with cutouts for O-rings (6).
1
2
4
5
6
The surface with cutouts for o-rings on the
central body axis is fragile.
Do not use a tool to hammer on this fragile
area.
CAUTION
!
