Be sure to store all removed parts in a safe place.
5. Disassembly instructions:

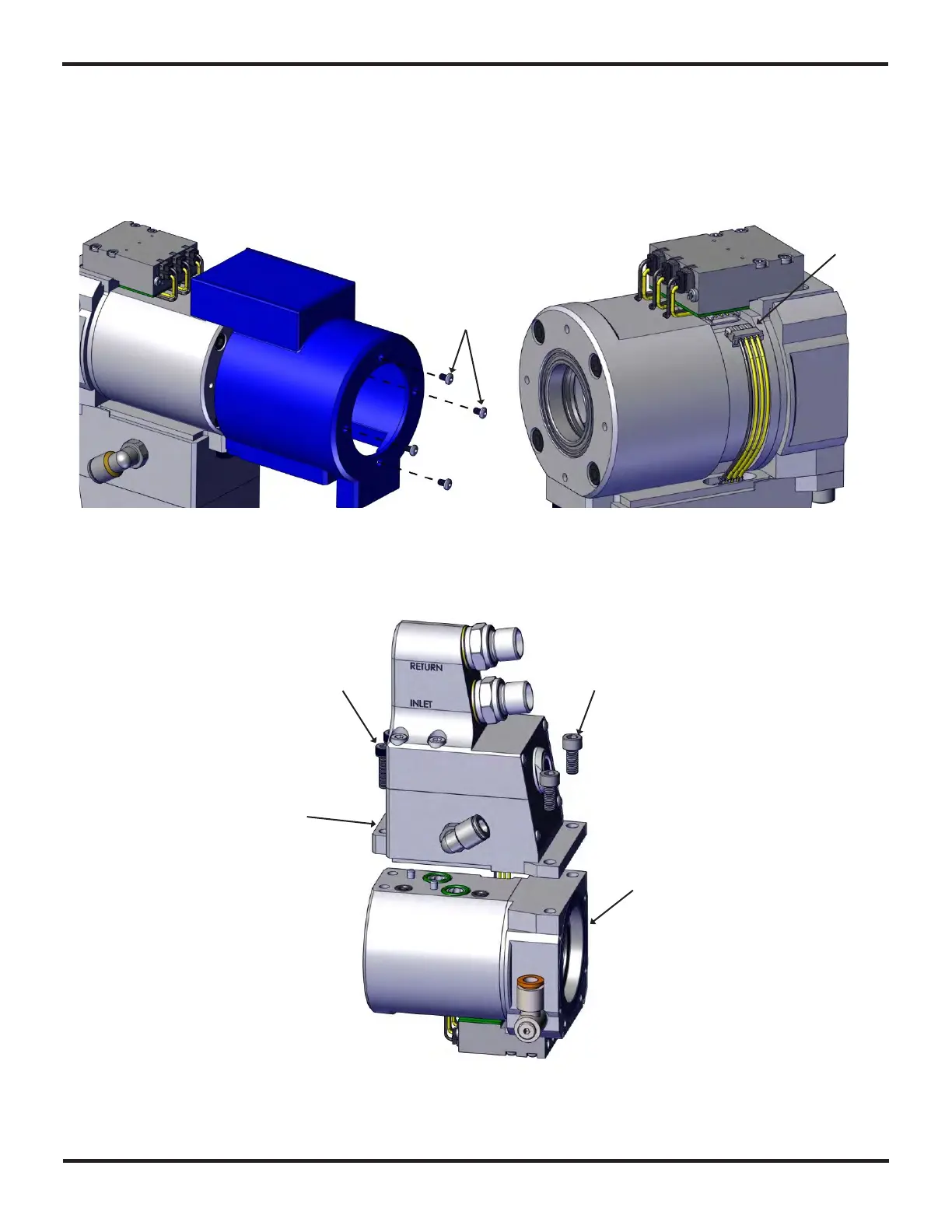

Unscrew the four screws (1) holding the cover (2) to the swivel housing and slide it off. Unplug the cable
(2) to the solenoid valves.
Unscrew the four screws (3) holding the connection housing (4) and swivel housing (5) together, then
separate them.
1
2
3 3
5
4
