Be sure to store all removed parts in a safe place.

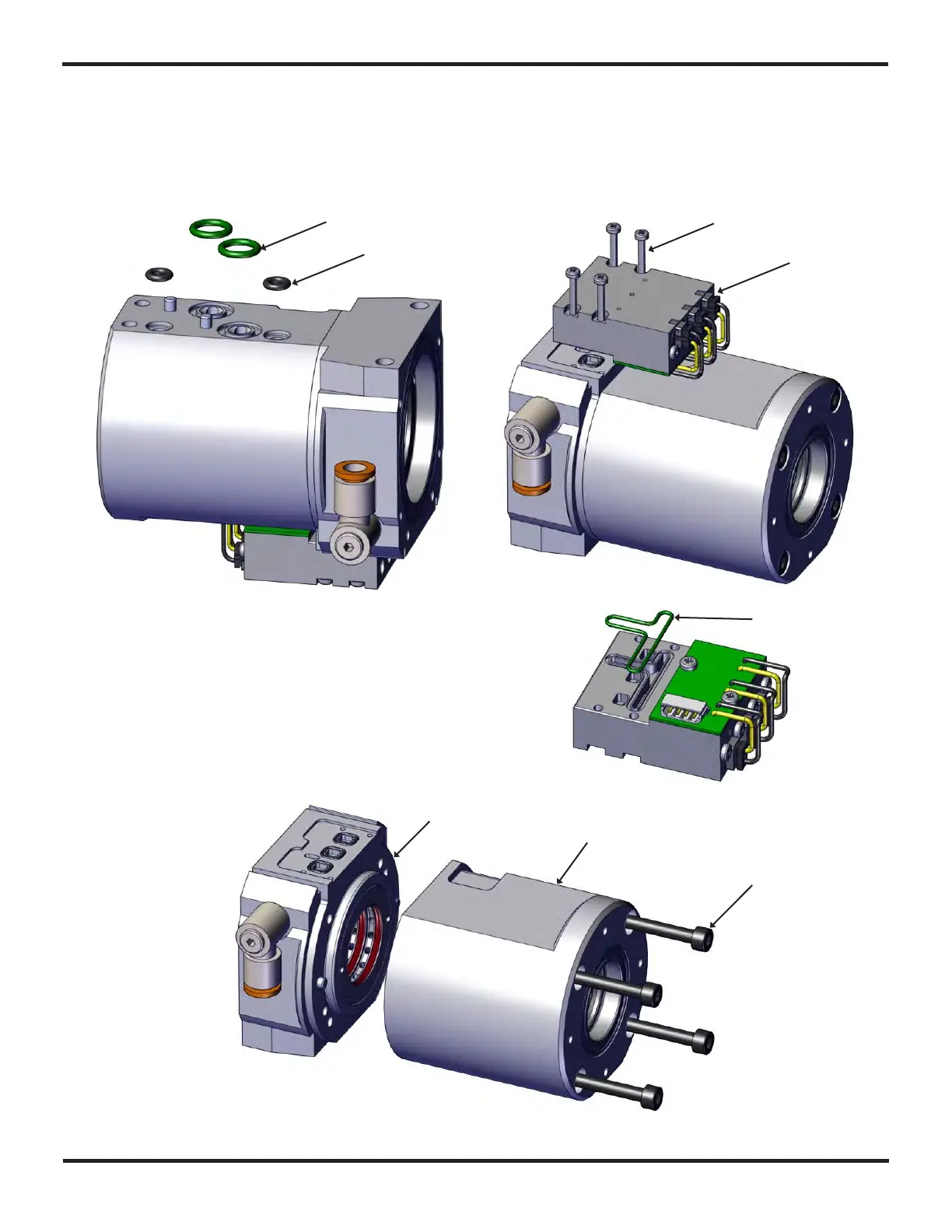

5. Disassembly instructions:
Remove the O-rings for the material (1) and the drainage (2) channels. Unscrew the four screws (3) for the
solenoid valve block (4) and remove them.
The O-ring (5) can be removed if it needs to be changed or
service is required.
Unscrew the four screws (6) holding the material housing
(7) and the air housing (8) together and separate the two.
2
1
4
3
5
6
7
8
