Be sure to store all removed parts in a safe place.
5. Disassembly instructions:

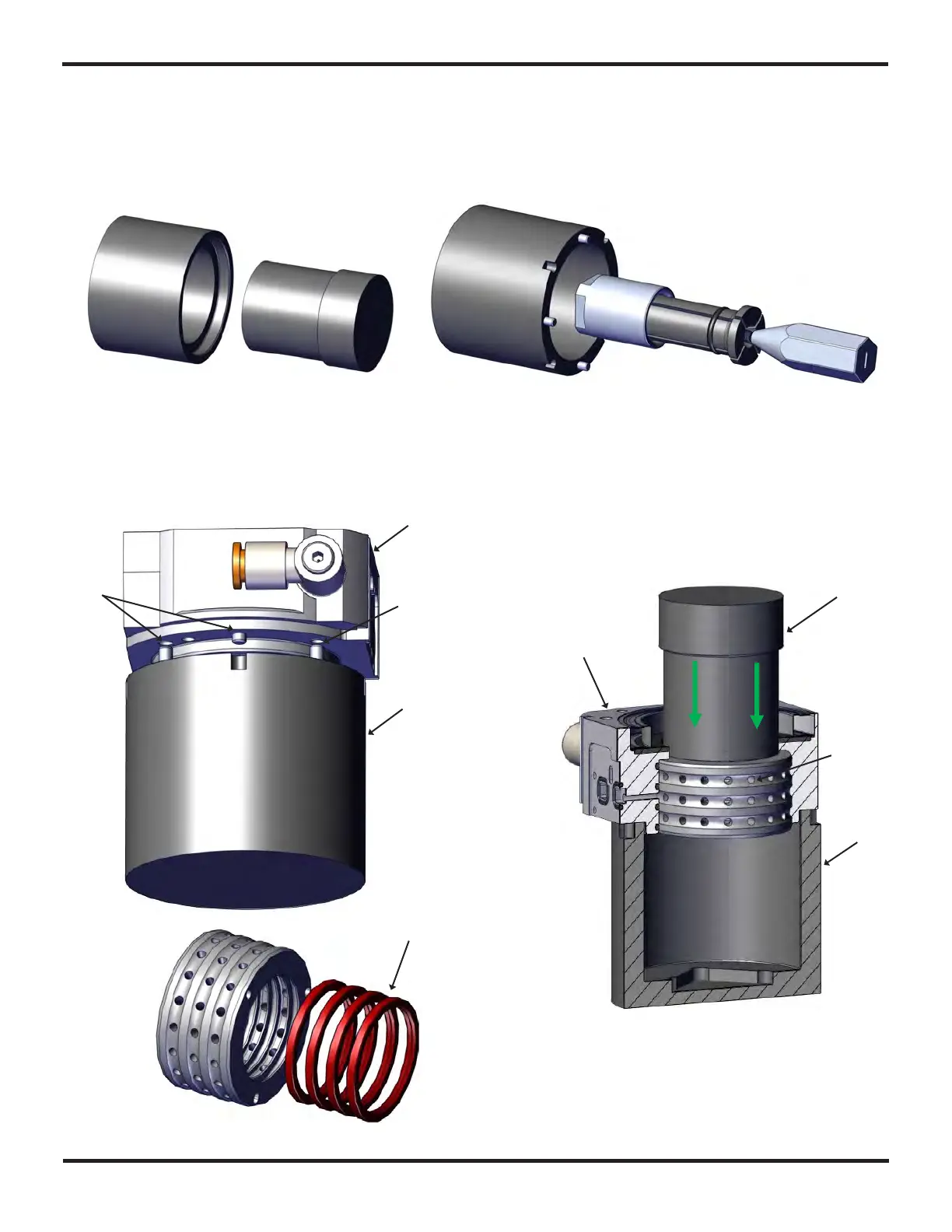

For the next part of the disassembly special tools 6004 0802 00 (1) and 6004 0802 03 (2) are
recommended for easy disassembly.
Align the pins and the corresponding holes (3) in both the air housing (4) and the tool (5). When the air
housing (4) has been placed in the tool (5) press the air distributor ring (6) out of the air housing using the
pressing tool (7). A vice with soft jaws can be used to help with pressing out the air distributor ring.
Take out the four seals (8) from the inside of the air distributor ring after it has been removed.
5
3
3
7
8
4
5
1
2
4
6
