Be sure to store all removed parts in a safe place.
5. Disassembly instructions:

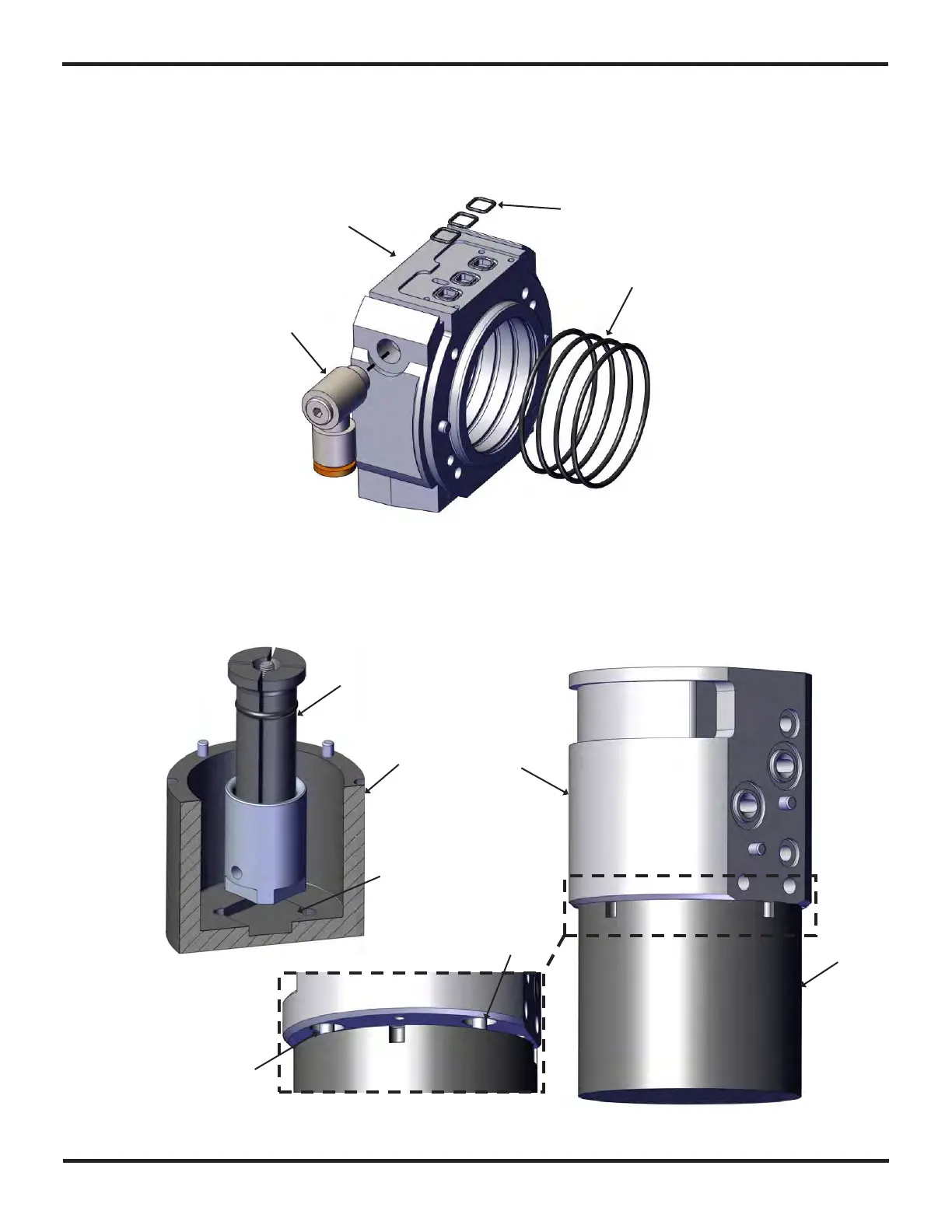

Pull out the four O-rings (1) from the air housing (2). Remove the three O-rings (3) for the solenoid
manifold. The air coupling (4) can also be removed and exchanged if so is necessary.
For removal of the sealing package, tool 6004 0802 03 needs to be used, see page 16.
Begin with placing the tension tool (5) into the cutout (6) in the cup tool (7). Place the material housing (8)
on top of the two tools, align the pins (9) with the holes for the screws. Note the orientation of the material
housing (8) and the cup tool (7).
1
3
2
4
5
6
8
9
9
7
7
