Be sure to store all removed parts in a safe place.
5. Disassembly instructions:

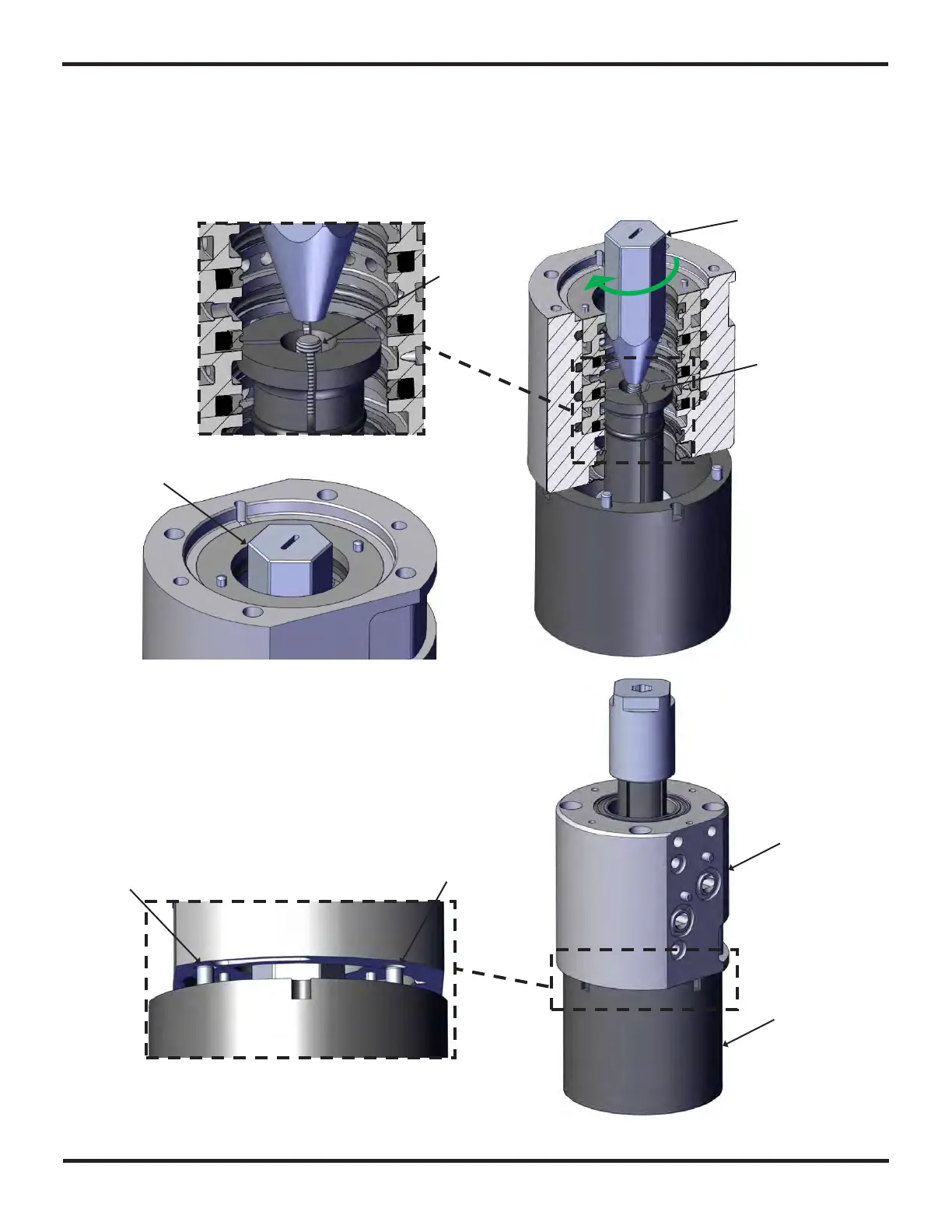

Use the tension tool clamp (1) and screw it onto the screw (2) to expand the tension tool (3) so that it gets
fastened to the material distribution ring. Screw the tension tool clamp (1) down by using hand force or a
flat screwdriver, note the approximate height over the material housing (4).
The cup tool (5) is then moved to the other side of the
material housing (6), note the orientation. Align the pins (7)
with the holes for the screws.
3
1
2
4
7
7
5
5
