6. Assembly instructions:

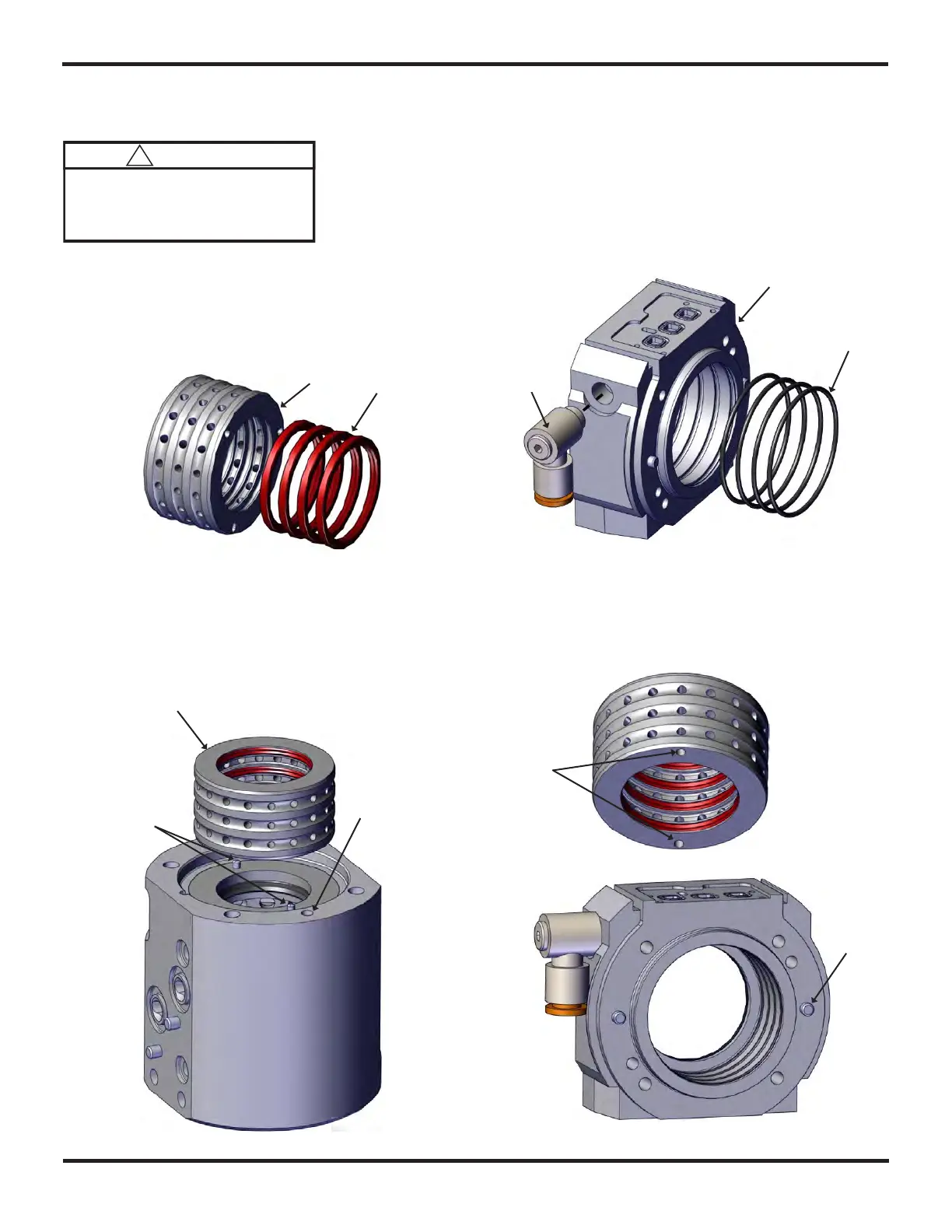

Mount the four O-rings (1) inside of the air housing
(2), reattach the air coupling (3) if it has been
removed. Mount the four seals (4) inside the air
distributor ring (5).
Lightly lubricate the inside of the O-rings (1) and the outside of the air distributor ring (5). Place the air
distributor ring (6) on top of the material seal package, use the pins (7) and corresponding holes (8) for
correct alignment. Align the air housing pins (9) with the holes (10) in the material housing.
1
3
4
5
Ensure a proper work bench with a vice with
“soft jaws”.
CAUTION
!
7
6
8
9
10
2
To Next Page
