6. Assembly instructions:

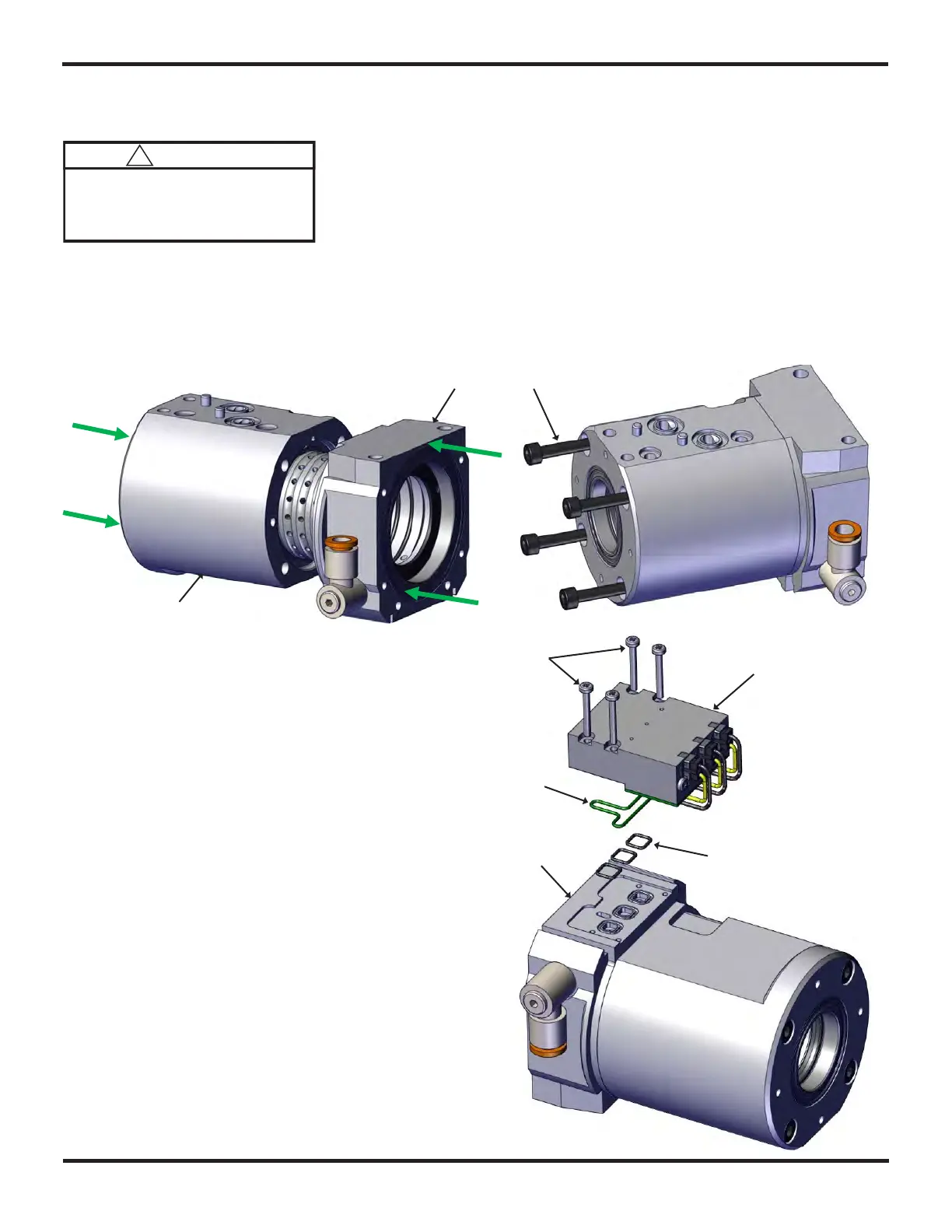

When the air housing (1) is placed on top of the air distributor ring and properly aligned with the material
housing (2) a vice with soft jaws is used to press the two together.
After pressing the internal parts in position fasten the air housing and the material housing together with
four screws (2).
Place the three O-rings (3) in position in the cutouts in
the air housing (1).
Fasten the solenoid valve block (4) to the air housing
using four screws (5). Note the O-ring (6) and make
sure it does not fall out when the solenoid valve block
is mounted.
1
Ensure a proper work bench with a vice with
“soft jaws”.
CAUTION
!
2
2 [6.5 Nm]
1 3
4
5
[1.35 Nm]
6
