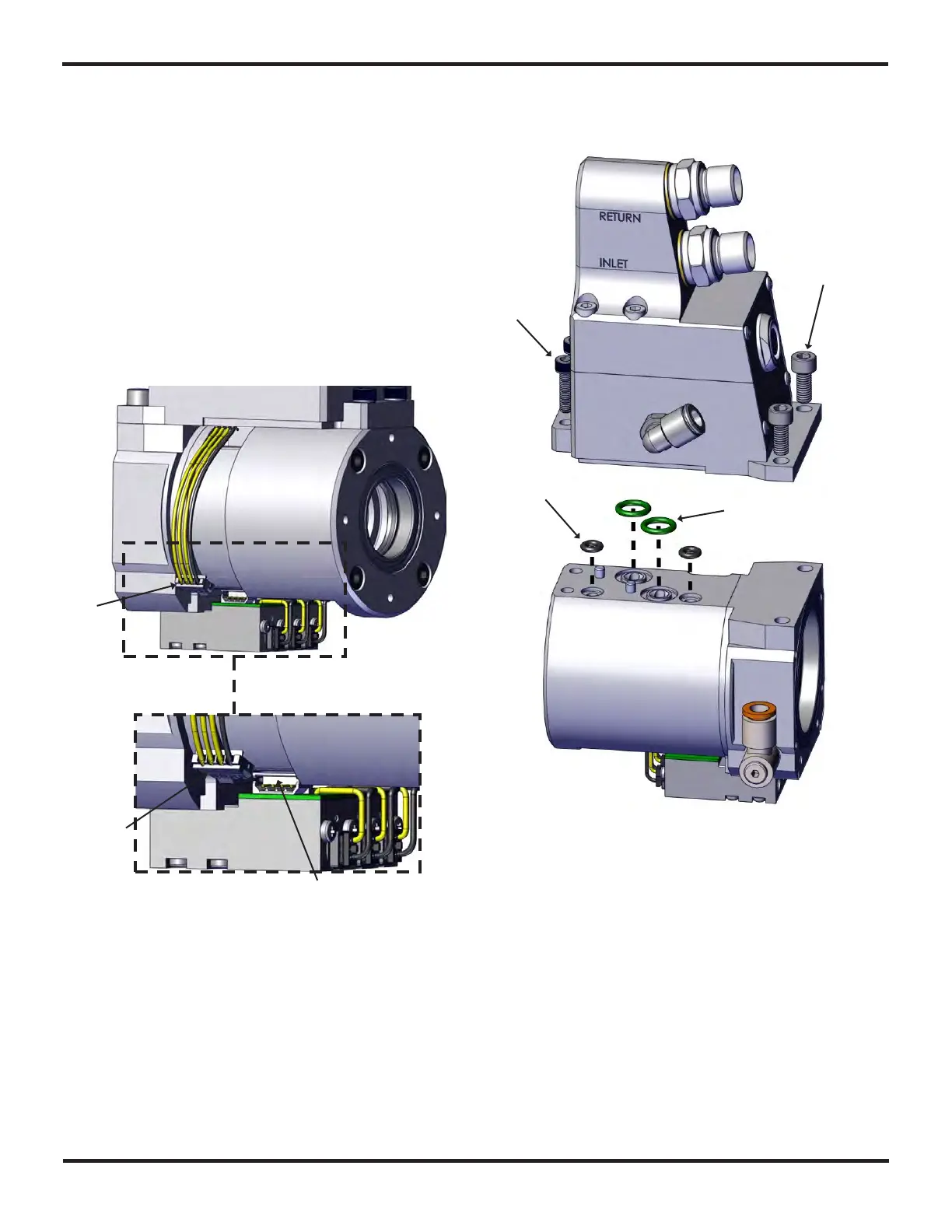

6. Assembly instructions:
Place the two O-rings for the material channels (1) and
the drainage channels (2) in place on the swivel
housing.
Mount the connection housing to the swivel housing
with the two screws in the front (3) and the two
screws in the back (4).
Plugin the cable bridge connector (4) into the header
(5) for the solenoid valves.
The connection housing and the swivel housing have been assembled and mounted together. They can be
put to the side and assembly of the central body and its parts need to be done next.
1
3 [11,1 Nm]
2
4
[6.5 Nm]
4
4
5
