6. Assembly instructions:

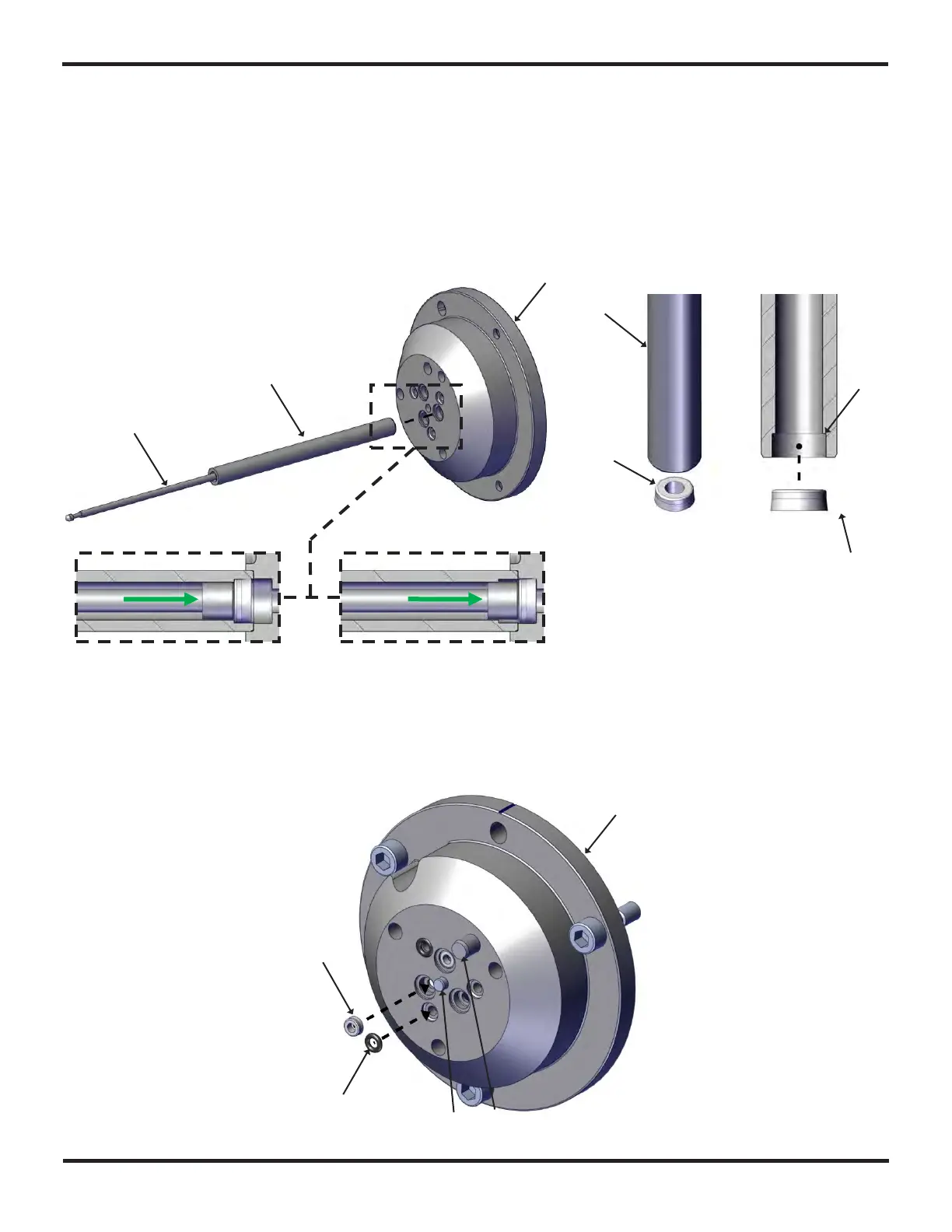

Before the central body axis is mounted to the cylinder block (1) the seals (2) and O-rings (3) need to be
mounted into the cylinder block (1).
To mount the seals (2) special tool 6004 0154 10 (4) and 6004 0154 11 (5) needs to be used. Place the
seal (2) on a flat surface then push the seal (2) in place in the tool, note the cutout (6) on one side of the
tool and the correct direction (7) of the seal.
Place the tool (4) over the position of the seal then push the seal (2) into position with the tool (5).
Make sure that the two pins (8 & 9) are in their correct position or place them in position if they have come
loose during disassembly.
1
3
2
8
9
4
5
2
4
6
<
<
7
1
