6. Assembly instructions:

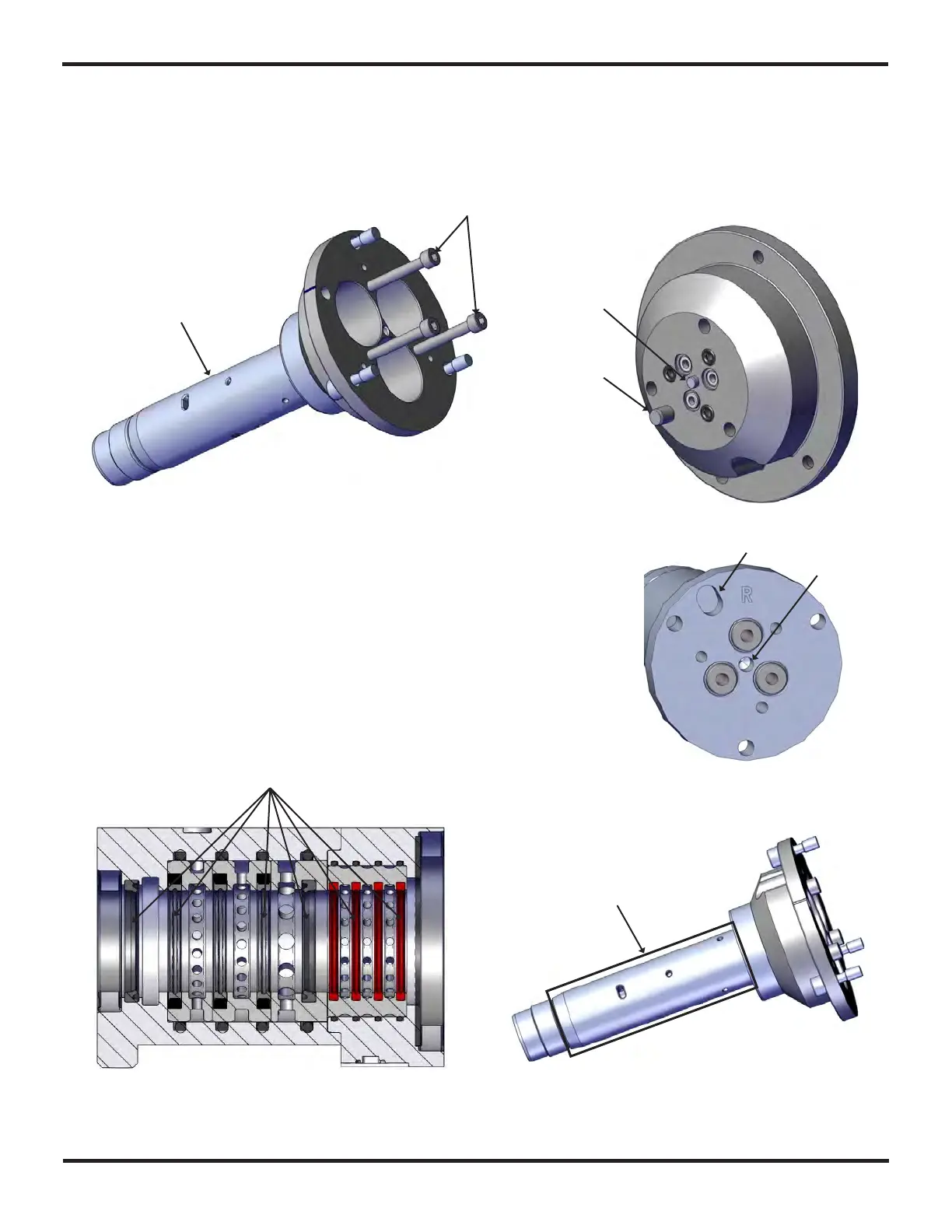

The cylinder block (1) is then fastened to the central body axis (2) with three screws (3).
Use pins (4 & 5) in the cylinder block and the corresponding
holes in the central body axis (6 & 7) to guide the two parts to
the correct mounting position.
With the cylinder block (1) mounted to the central body axis (2) it
can be installed into the swivel chamber. Lightly lubricate the
seals (8) inside the swivel housing and the outside of the central
body axis (9).
3 [6.5 Nm]
6
7
8
2
9
4
5
