18” CHIPPER MACHINE CONTROLS
21
YOKE LIFT CONTROL VALVE
(OPTIONAL EQUIPMENT)
• The Carlton chipper may be equipped
with a hydraulic yoke lift, which allows
the operator to hydraulically lift the top
feed wheel. This can be of assistance
when feeding large square cut butt ends,
which the feed wheels cannot ride up
easily. The lift cylinders can also be
used to provide positive down pressure
on material being fed. This is useful
when feeding extremely bushy material
or material which the feed wheel cannot
grab.
• The Yoke Lift control valve is located
on the right rear of the infeed chute.
− Push the valve in to raise the yoke
lift and top feed wheel
− Pull the valve handle out to lower the
yoke lift and provide positive down
pressure on the top feed wheel.
FEED WHEEL CLEAN OUT DOOR
• There is a drop-down door to clean
excess debris out from under the bottom
feed wheel. This will help to keep the
chipper from getting clogged or stopped
up. Use the handle, located on both
sides behind the infeed chute, and drop
the door down to remove debris, then
close and secure the door. Should be
cleaned frequently to prevent damage to
clean out door and to prevent clogging
the chipper. DO NOT open the clean
out door until the chipper has been shut
down and all parts have come to a
complete stop, danger of flying debris
could cause injury.

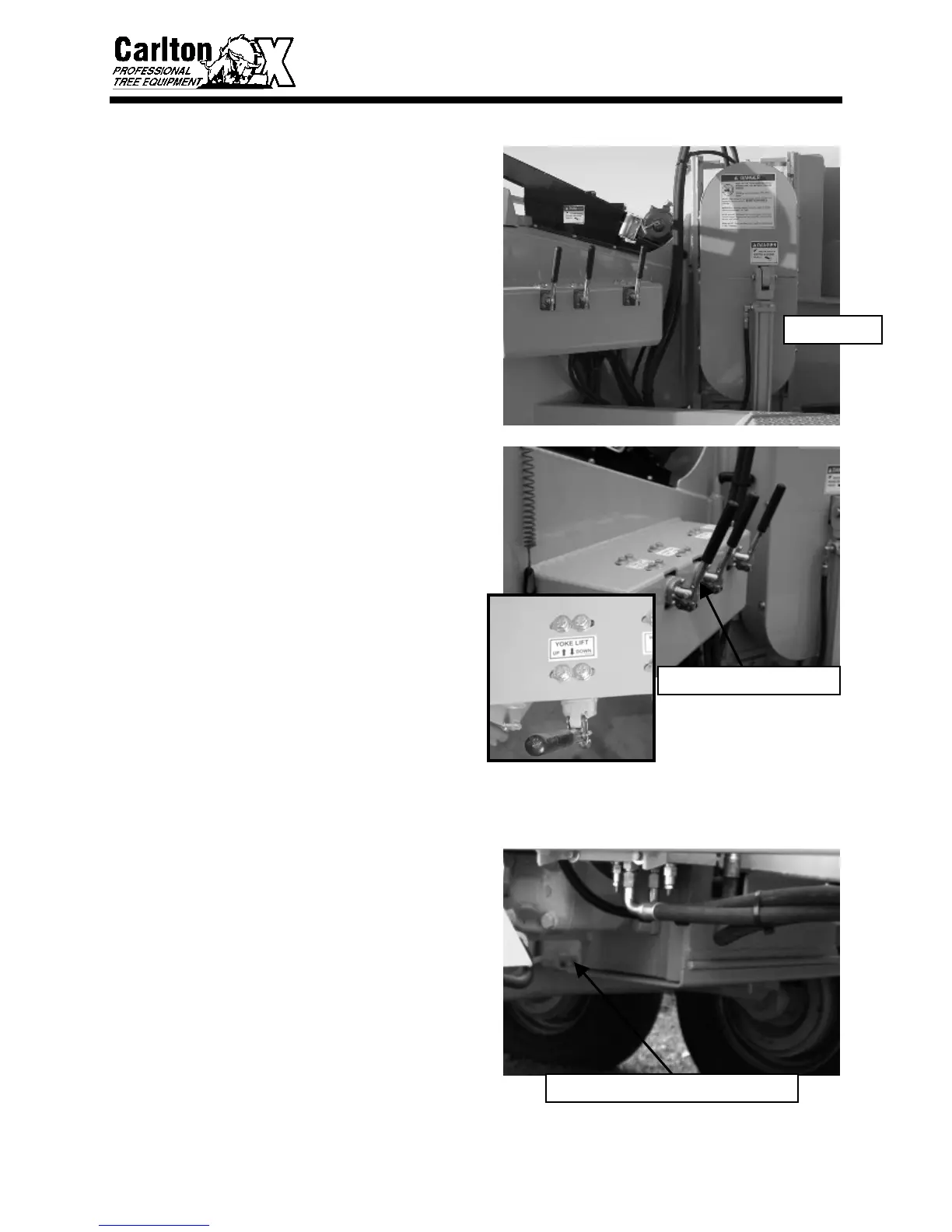

LIFT CYLINDER
YOKE LIFT CONTROL VALVE
FEED WHEEL CLEAN OUT DOOR HANDLE
