18” CHIPPER MACHINE CONTROLS
22

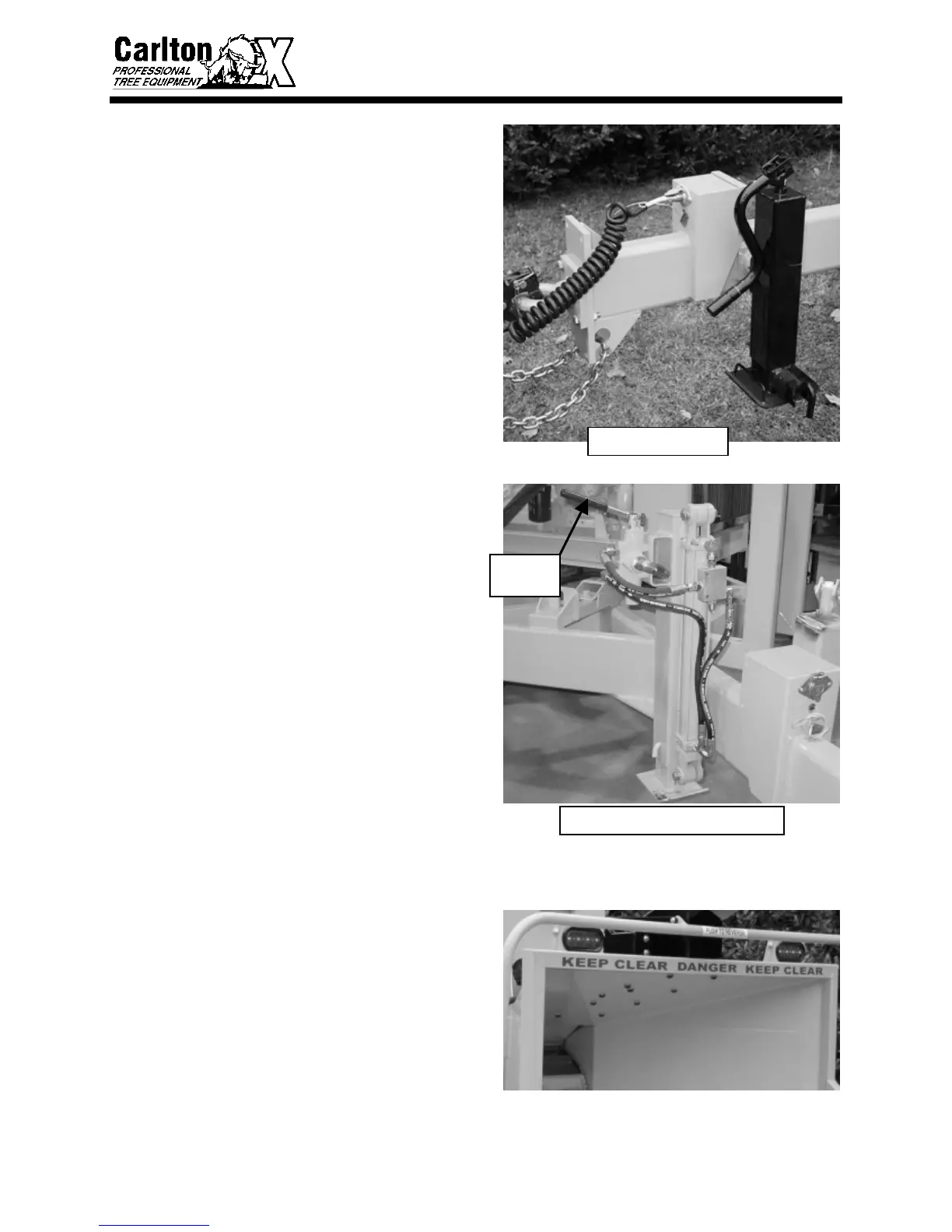

FRONT JACK STAND
• Use the front jack stand anytime the
chipper is removed from the tow vehicle.
Use wheel chocks to block the front and
back tires when the chipper is in use and
when it is removed from the tow vehicle.
The front jack stand is attached to the
tongue for transport and storage as
shown in the picture at right. Raise the
jack as far as possible during transport.
FRONT HYDRAULIC JACK STAND
(Standard with 250 HP engine – Optional
with 170 HP engine)
• The Carlton 18” chipper with a 250 HP
John Deere engine comes standard with
a hydraulic jack stand. The engine must
be running at idle to operate the
hydraulic jack. There is a counter
balance valve on the jack to prevent the
tongue accidentally being dropped.
• To operated the hydraulic jack hold the
lever down to make the jack stand go
down or hold the lever up to raise the
jack stand.
BRAKES & REAR LIGHTS
• The chipper’s brakes and lights are
connected to the tow vehicle actuator to
be activated by the tow vehicle
operation.
See the Machine Wiring section of
this manual for wiring diagram.
FRONT JACK STAND
HYDRAULIC FRONT JACK STAND
CONTROL
LEVER
