18” CHIPPER LUBRICATION
53

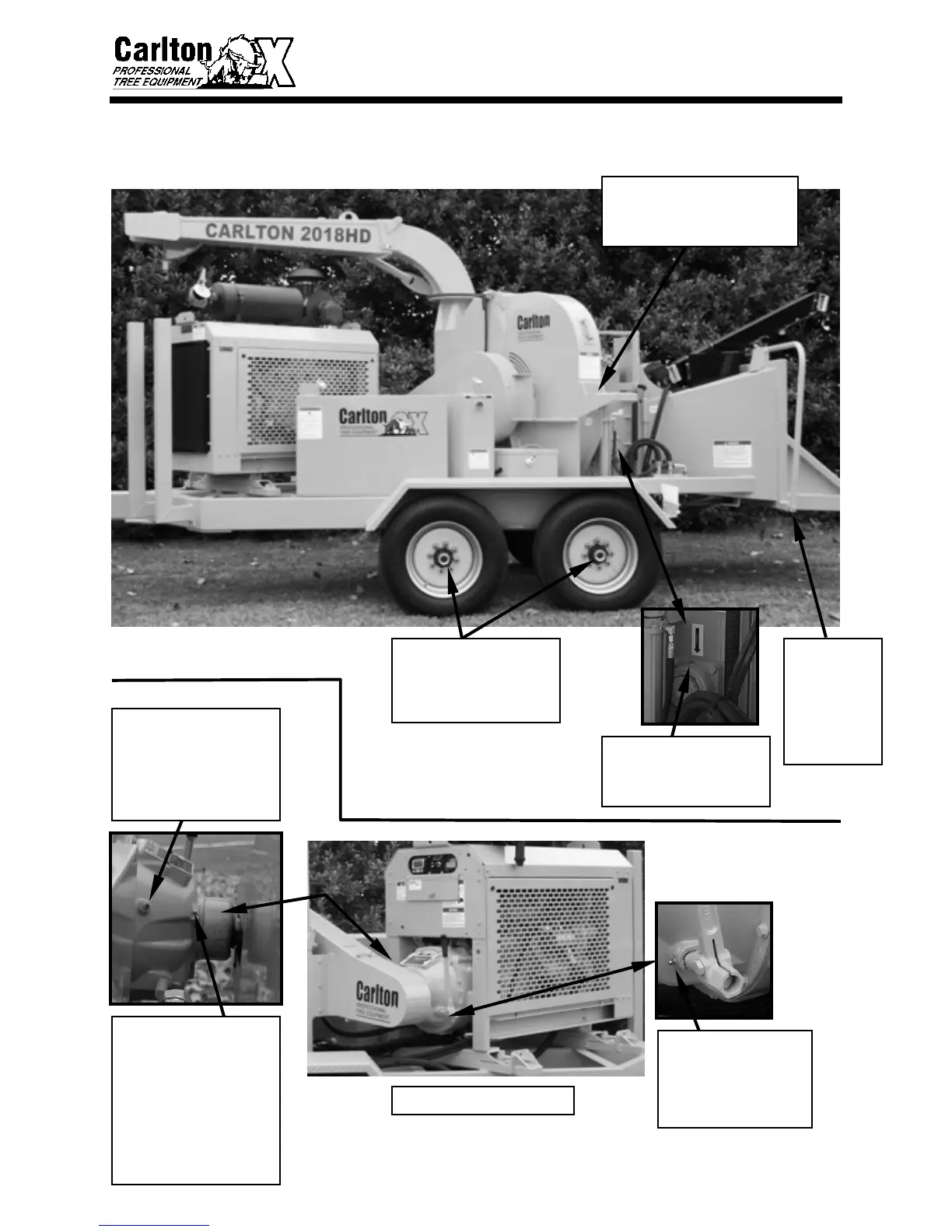

CHIPPER – LEFT SIDE
FEED CONTROL
BAR GREASE
FITTING
* GREASE AS
NECESSARY
EVERY 30-40
HOURS OF
OPERATION
CUTTER DISK HOOD HINGE
GREASE FITTING
(1 PLACES)
* 1 PUMP OF GREASE MONTHLY
TOP FEED WHEEL BEARING
GREASE FITTING
* 1 PUMP OF GREASE DAILY
ON EACH BEARING
EQUIPPED WITH DEXTER
AXLES, EITHER E-Z LUBE
OR NEV-R-LUBE – SEE
DEXTER INFORMATION
ENCLOSED IN MANUAL
PTO/CLUTCH RELEASE
BEARING
GREASE FITTING
* GREASE DAILY ADD 1-2
PUMPS - ROTATE THE
SHAFT BY HAND WHILE
ADDING GREASE
CLUTCH ENGAGEMENT
HANDLE (CROSS SHAFT)
GREASE FITTING
* EVERY 500 HOURS OF
OPERATION ADD 1-2
PUMPS OF GREASE
PTO/CLUTCH MAIN
BEARING
GREASE FITTING
* ADD GREASE EVERY 100
HOURS OF OPERATION
UNTIL GREASE IS FORCED
OUT OF THE LABYRINTH
SEAL AROUND THE SHAFT.
ROTATE THE SHAFT BY
HAND WHILE ADDING
GREASE.
CLUTCH LUBRICATION
