18” CHIPPER LUBRICATION
54

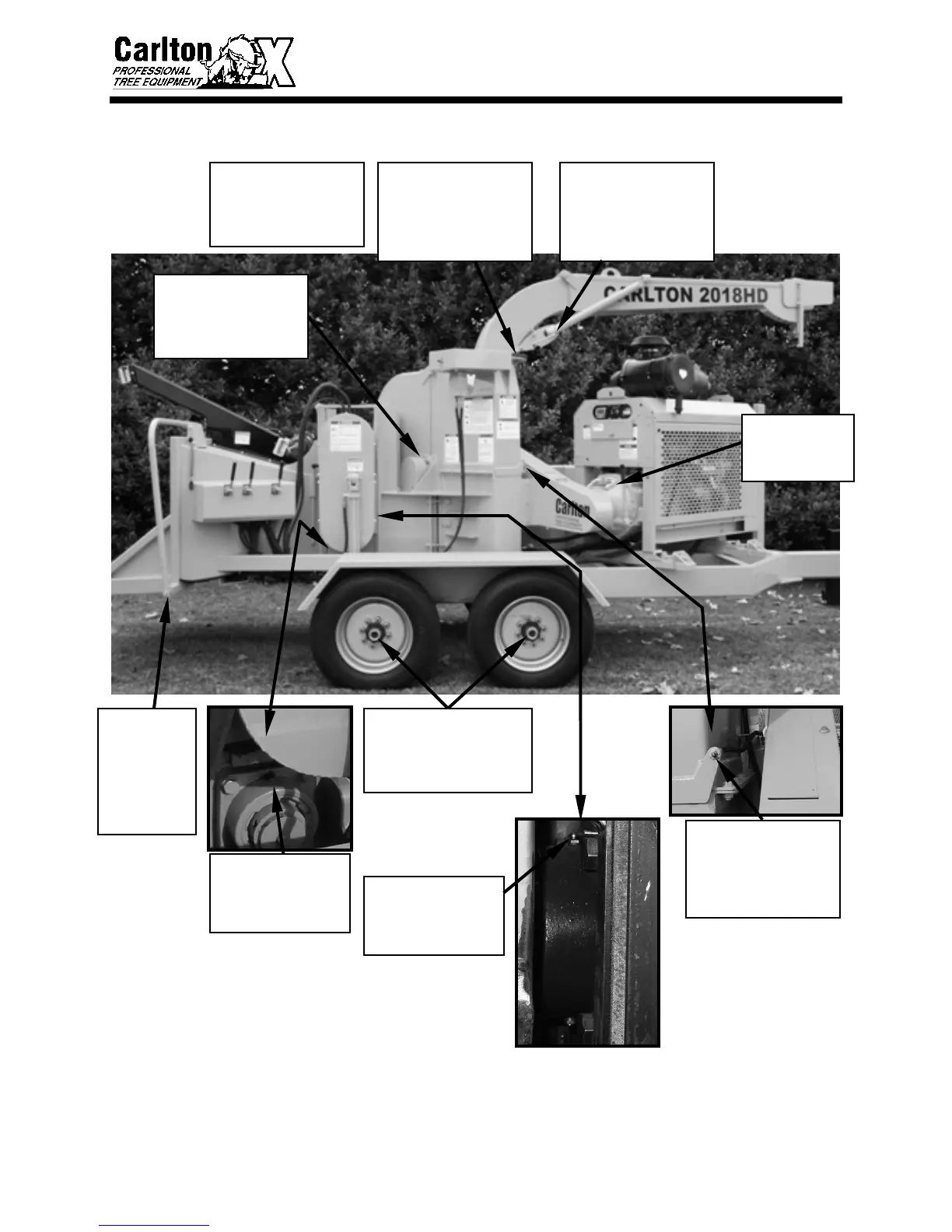

CHIPPER – RIGHT SIDE
DISCHARGE SWIVEL
PLATE (3 PLACES)
GREASE FITTING
* GREASE EVERY 3
MONTHS, APPROX. 300
HOURS OF OPERATION
DISCHARGE HEIGHT
ADJUSTMENT
GREASE FITTING
* GREASE AS
NECESSARY EVERY 100
HOURS OF OPERATION
EQUIPPED WITH DEXTER
AXLES, EITHER E-Z LUBE
OR NEV-R-LUBE – SEE
DEXTER INFORMATION
ENCLOSED IN MANUAL
CUTTER DISK BEARING
(BELT SIDE)
GREASE FITTING
* PURGE BEARINGS
DAILY, UNTIL NEW
GREASE IS SEEN
BOTTOM FEED
WHEEL BEARING
GREASE FITTING
* 1 PUMP OF GREASE
DAILY ON BEARING
CUTTER DISK BEARING
GREASE FITTING
* PURGE BEARINGS
DAILY, UNTIL NEW
GREASE IS SEEN
FEED CONTROL
BAR GREASE
FITTING
* GREASE AS
NECESSARY
EVERY 30-40
HOURS OF
OPERATION
DISCHARGE SWIVEL
GREASE FITTING
* GREASE EVERY 3
MONTHS, APPROX. 300
HOURS OF OPERATION
TOP FEED
WHEEL BEARING
GREASE FITTING
* 1 PUMP OF GREASE
DAILY ON BEARING
SEE PTO/CLUTCH
LUBRICATION
INFORMATION ON
PREVIOUS PAGE
