Display
3

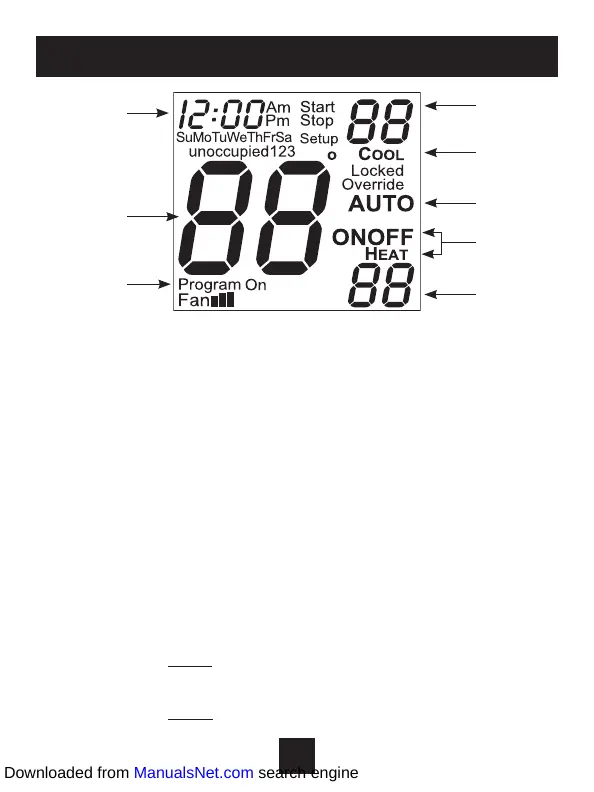

1 Mode Indicators - Page 7-10
Selects the operational mode of the equipment.
HEAT - Indicates the heating mode.
COOL - Indicates the cooling mode.
AUTO - Indicates the system will automatically changeover between
heat and cool modes as the temperature varies.
PROGRAM ON - Indicates the time period program is enabled to run.
OFF - Indicates heating and cooling are turned o.
2 Clock with Day of the Week - Page 6
Indicates the current time and day. This clock is also used to
program the time period schedules.
3 Room Temperature Display
Indicates current room temperature.
4 Desired Set Temperature - Page 11
Indicates desired room temperature(s).
