Outdoor Unit Sizes 24-36K (208/230V) Panel Plate
NOTE: This part is for reference only and the photos may differ from your actual unit.

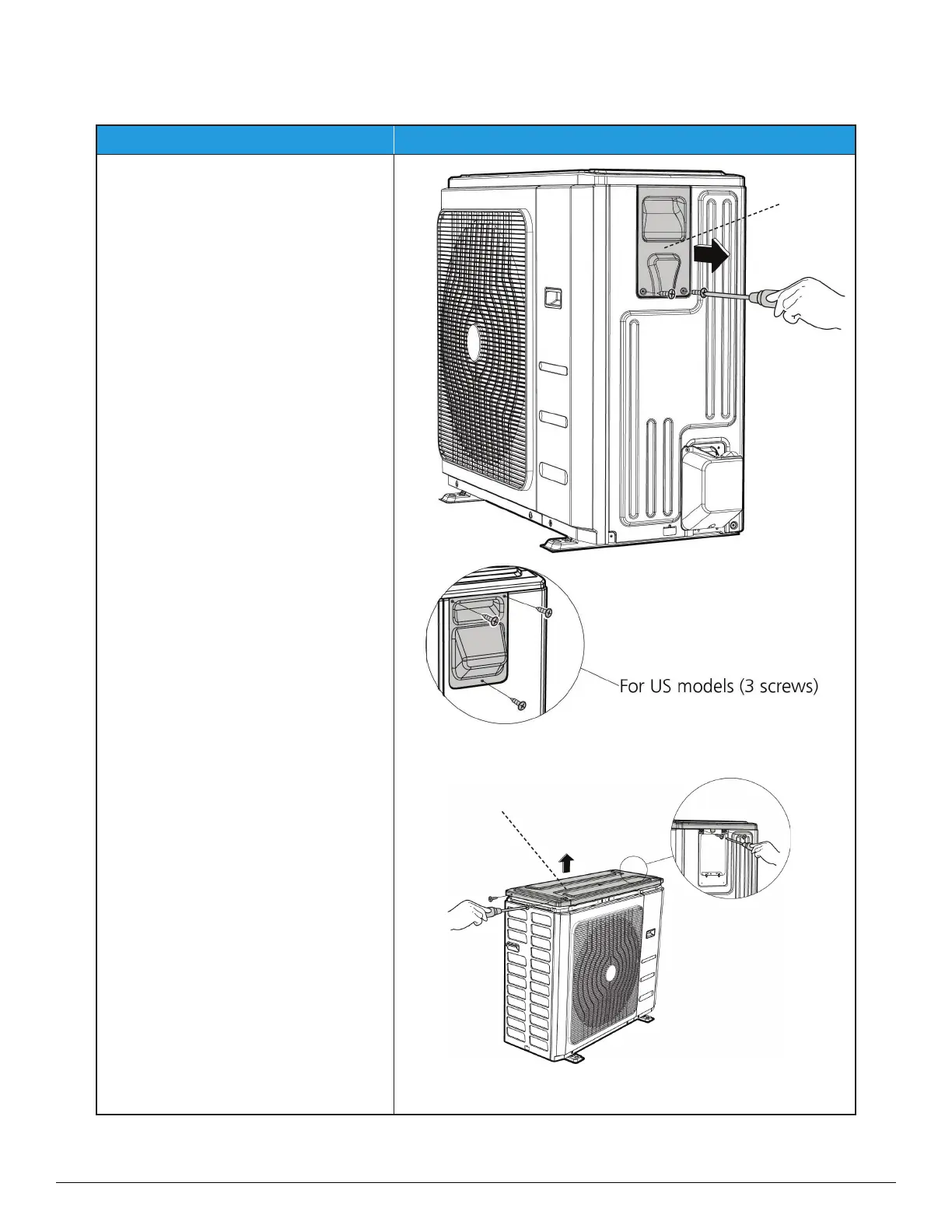

Procedure Illustration
1) Turn o the air conditioner and the
power breaker.
2) Remove the handle screws (2) then
remove the handle.
3) Remove the top cover screws (4)
then remove the top cover.
Two of the screws are located
under the handle.
Handle
Top Cover
