Carrier 38MARB - Fan Assembly; Fan Motor Replacement

38MARB: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
75
Fan Assembly
Fan Motor
NOTE: Remove the panel plate and the connection of fan motor on PCB before disassembling fan motor.

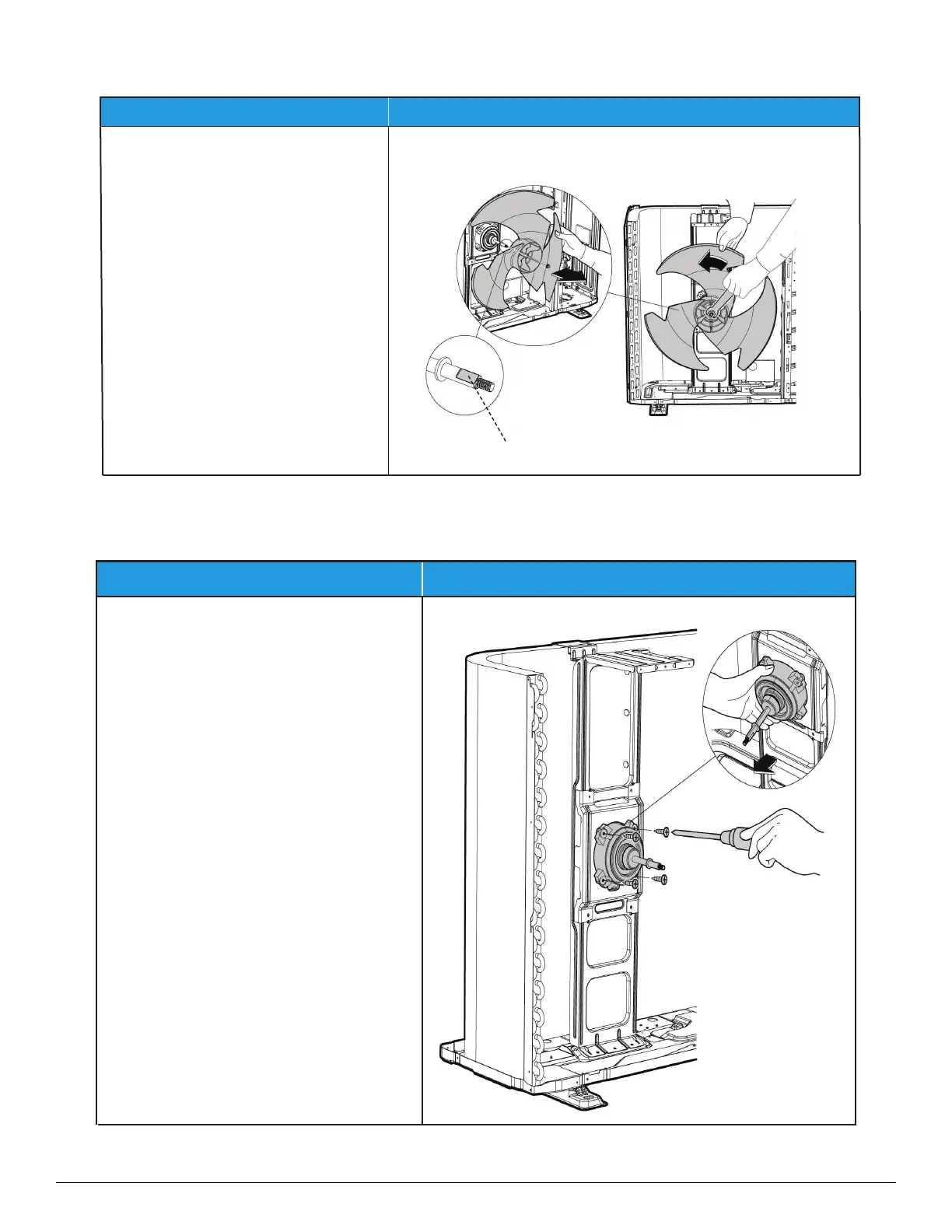

Procedure Illustration
1) Remove the nut securing the fan
with a spanner.
2) Remove the fan.
D-cut
Procedure Illustration
1) Remove the fan motor screws (4).
2) Remove the fan motor.
