Carrier 38MHRCQ12AA3 - Pressure on the Service Port (Heating)

50 Specifications subject to change without notice. SG-38MHRC-01
Pressure on the Service Port (Cont)
Table 21 — Heating Chart

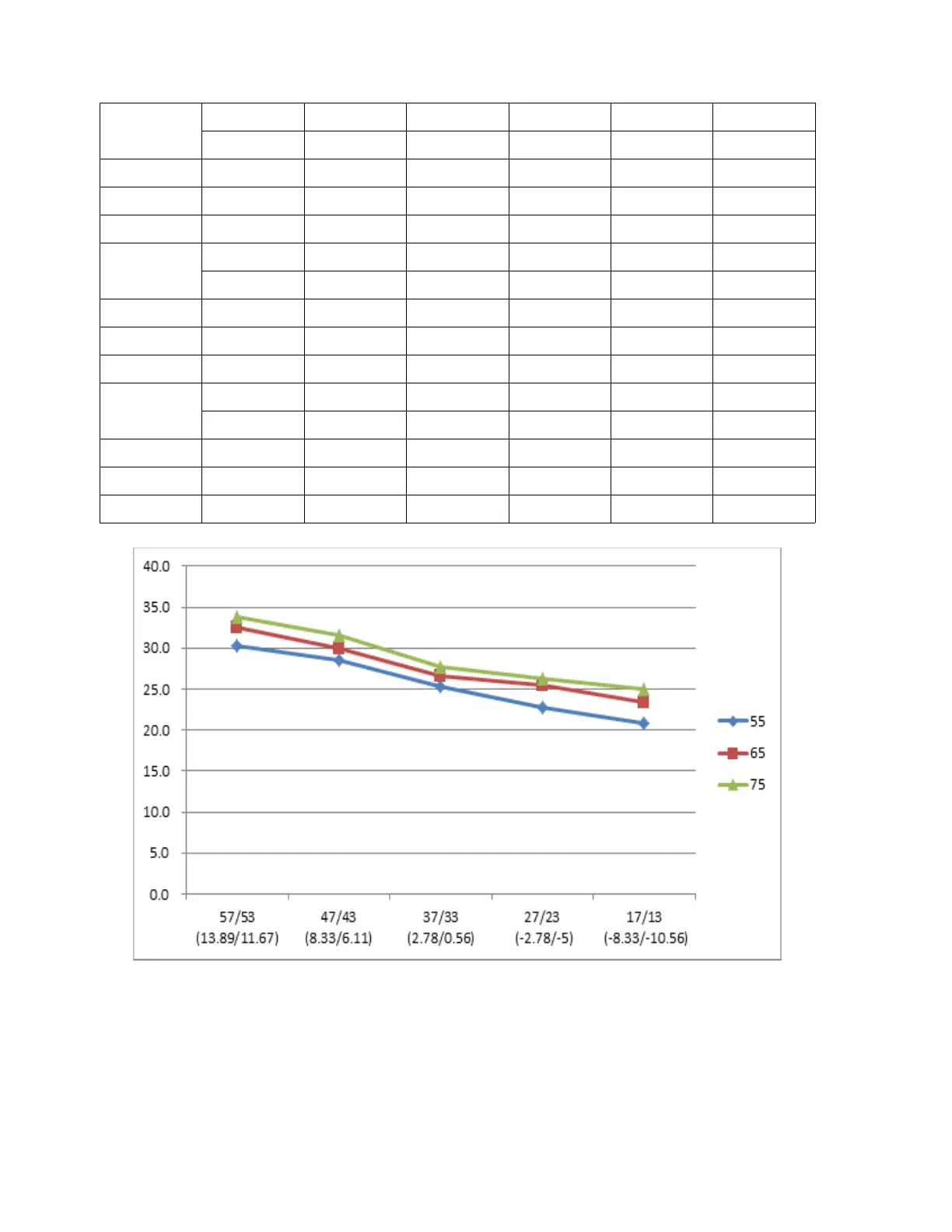

Fig. 52 — Heating Chart
°F (°C)
ODT 57/53 47/43 37/33 27/23 17/13
IDT (13.89/11.67) (8.33/6.11) (2.78/0.56) (-2.78/-5) (-8.33/-10.56)
BAR 55 30.3 28.5 25.3 22.8 20.8
BAR 65 32.5 30.0 26.6 25.4 23.3
BAR 75 33.8 31.5 27.8 26.3 24.9
°F
(°C)
ODT 57/53 47/43 37/33 27/23 17/13
IDT (13.89/11.67) (8.33/6.11) (2.78/0.56) (-2.78/-5) (-8.33/-10.56)
PSI 55 439 413 367 330 302
PSI 65 471 435 386 368 339
PSI 75 489 457 403 381 362
°F
(°C)
ODT 57/53 47/43 37/33 27/23 17/13
IDT (13.89/11.67) (8.33/6.11) (2.78/0.56) (-2.78/-5) (-8.33/-10.56)
MPA 55 3.03 2.85 2.53 2.28 2.08
MPA 65 3.25 3.00 2.66 2.54 2.33
MPA 75 3.38 3.15 2.78 2.63 2.49
