Carrier 38MHRCQ12AA3 - Clearances; Clearances for Multiple Units

SG-38MHRC-01 Specifications subject to change without notice. 9

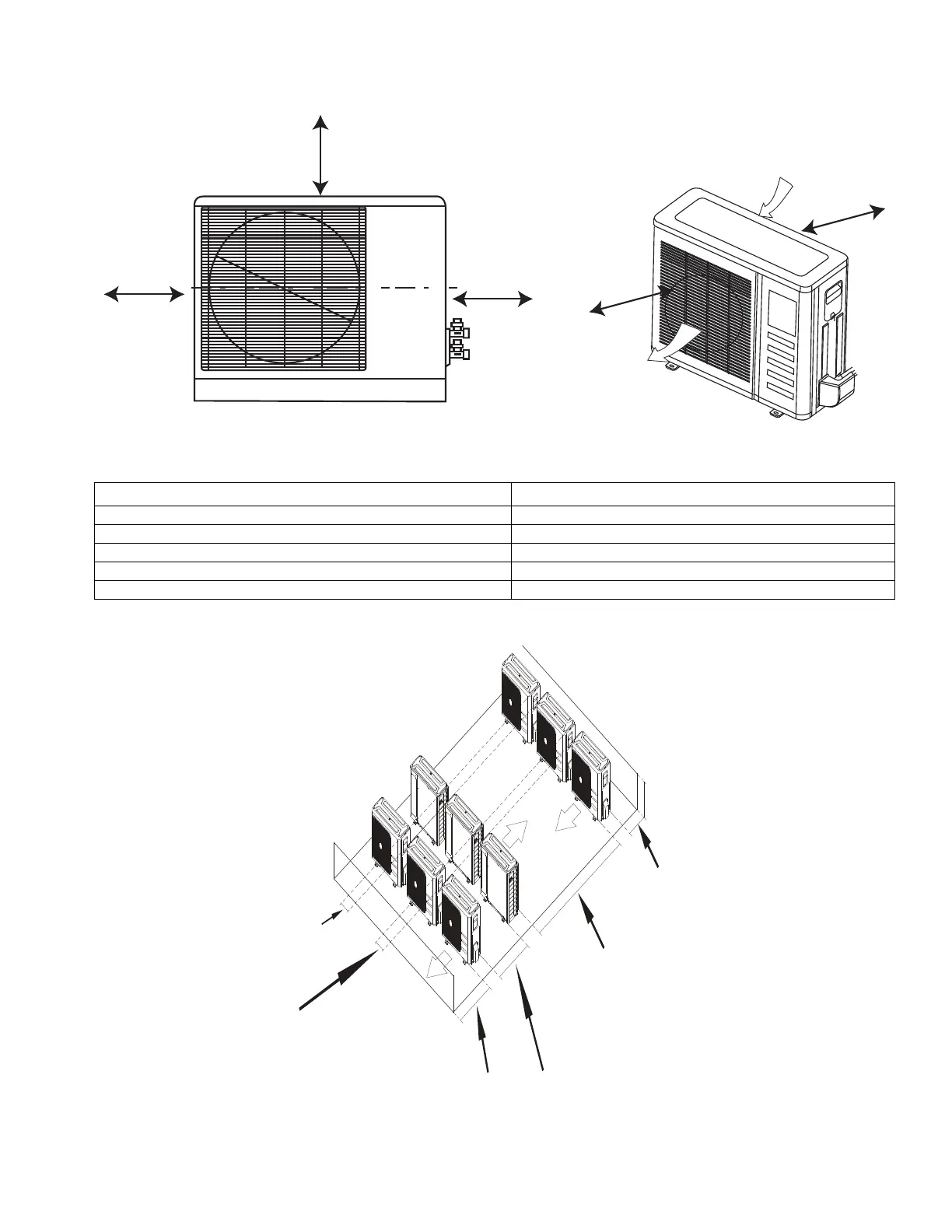

CLEARANCES
Fig. 5 — Clearances
Table 6 — Clearances
NOTE: The outdoor unit must be mounted at least 2in. (50mm) above the maximum anticipated snow depth.
Fig. 6 — Clearances for multiple units
UNIT MINIMUM VALUE IN. (MM)
A 24 (609)
B 24 (609)
C 24 (609)
D 4 (101)
E 4 (101)
A
D
B
Air-outlet
Air-inlet
C
E
59in (150cm)
or more when
facing each other
Blowing into the air-inlet of other
condenser shall be avoided.
24in (60cm)
or more
59in (150cm)
or more on a
multiple parallel
unit arrangement
24in (61cm) or more on a single parallel unit arrangement
19in (48cm) or more on
a multiple parallel unit
arrangement 4in (10cm)
or more on a single
parallel unit arrangement
9.8in (25cm) or more for proper airflow
24in (61cm) or more is recommended
for service
9.8in (25cm) or more for
proper airflow 24in(61cm)
or more is
recommended
for service
