Carrier 42SIC - Side Opening; Vertical Floor or Wall Installation

6
2 - INSTALLATION

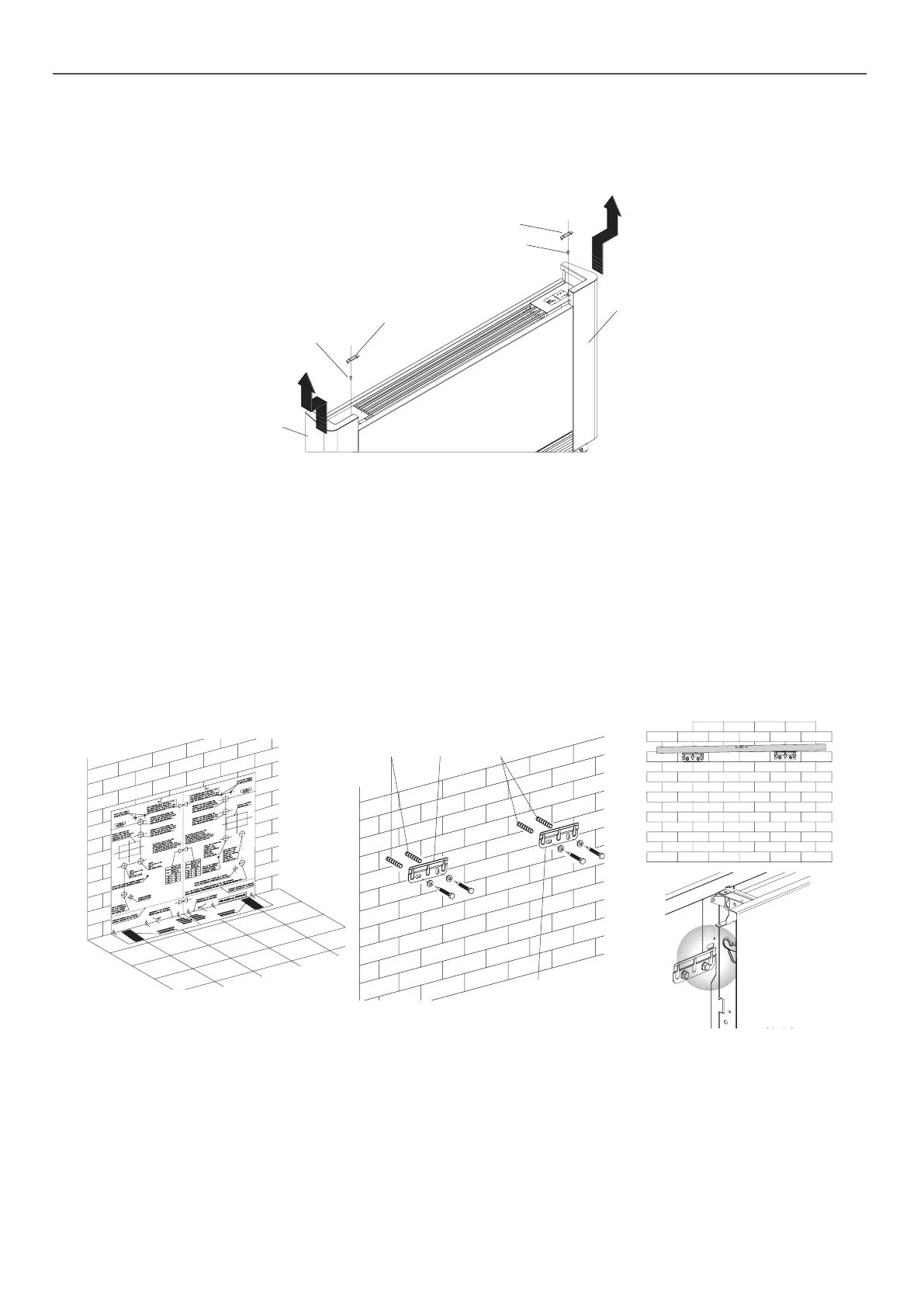

2.4 - Side opening
- On the left-hand side lift the cover that protects the screw, loosen the screw that xes the left panel, then move it slightly to the
left and lift it up.
- On the opposite side, lift the cover that protects the screw and unscrew it.
- Move the side panel slightly to the right and lift it out.
C
B
E
B
C
D
B
cover
C
xing screws
D
left panel
E
right panel
2.5 - Vertical oor or wall installation
When mounting on the oor with support feet, refer to the individual instructions leaets supplied and the relative manual for the
mounting of the feet.
Using the paper template, trace the position of the two xing brackets on the wall. Use a suitable drill to make the holes with and insert
the toggle bolts (2 for each bracket); x the two brackets. Do not over-tighten the screws so that the brackets can be adjusted with a
spirit level.
Fully tighten the four screws to block the two brackets.
Check the stability by manually moving the brackets to the right and to the left, up and down.
Mount the unit, checking that it ts correctly onto the brackets and checking that it is stable.
B BC
C
B
toggle bolts
C
brackets
