2 - INSTALLATION
2.10 - Condensation discharge
The condensation discharge network must be suitably sized (minimum inside pipe diameter 16 mm) and the pipeline positioned so
that it keeps a constant inclination, never less than 1%. In the vertical installation, the discharge pipe is connected directly to the
discharge tray, positioned at the bottom of the side shoulder underneath the hydraulic xtures. In a horizontal installation the discharge
tube is connected to the one already present on the machine.
For installation of the 42SIC versions in a horizontal position, horizontal condensation collection basin
accessory kits are available GB0520/GB0524.
- If possible, make the condensation liquid ow directly in a gutter or a “rainwater” discharge.
- When discharging directly into the main drains, it is advisable to make a siphon to prevent bad smells returning up the pipe towards
the room. The curve of the siphon must be lower than the condensation collection bowl.
- If the condensation needs to be discharged into a container, it must be open to the atmosphere and the tube must not be immerged
in water to avoid problems of adhesiveness and counter-pressure that would interfere with the normal outow.
- If there is a height difference that could interfere with the outow of the condensation, a pump must be mounted:
- in a vertical installation mount the pump under the lateral drainage tray;
- in a horizontal installation the pump position must be decided according to the specic requirements.
Such pumps are commonly found in commerce.
However, on completion of the installation it is advisable to check the correct outow of the condensation liquid by slowly pouring about
½ l of water into the collection tray in about 5-10 minutes.

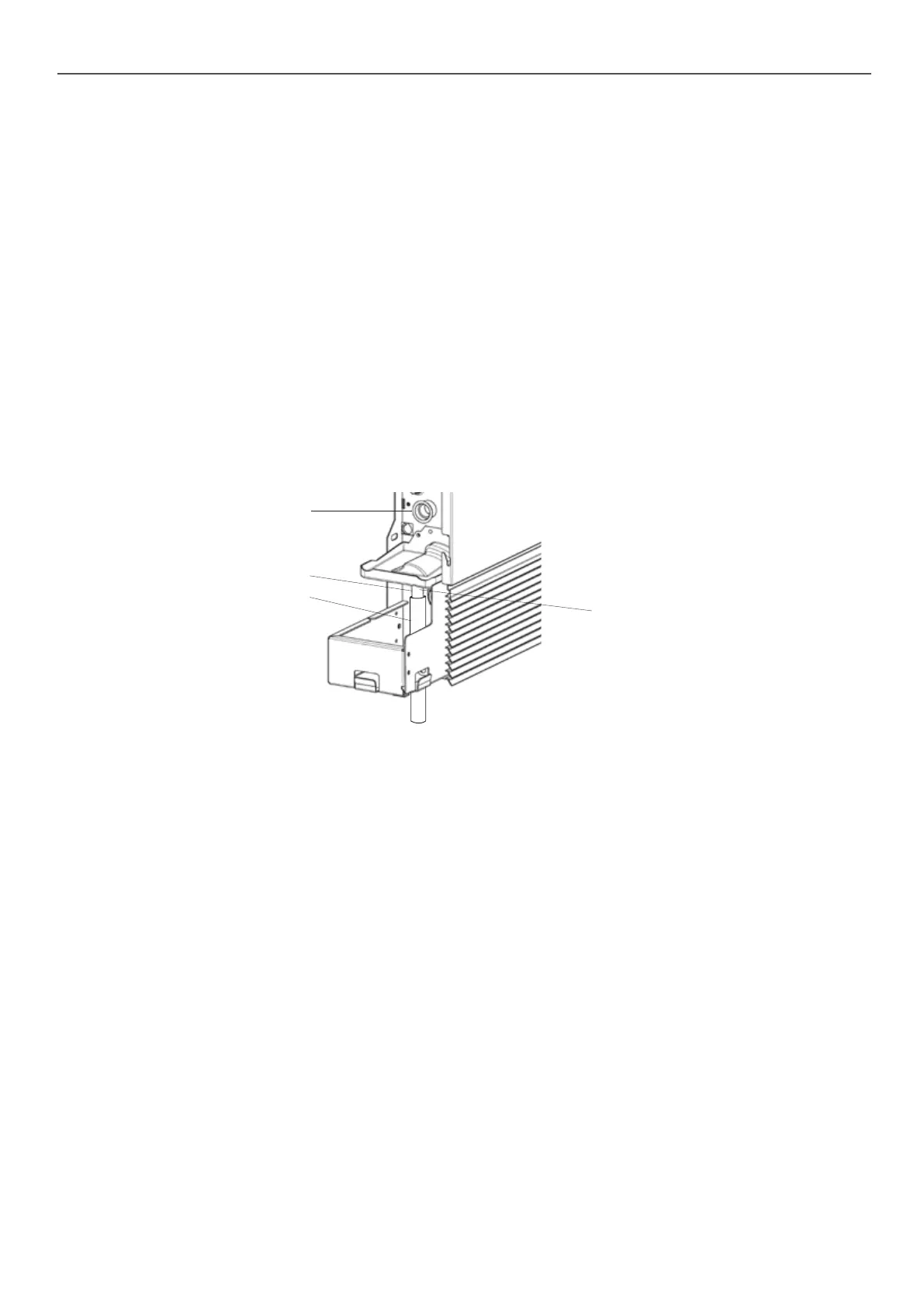

Mounting the condensation discharge pipe in the vertical version
Connect to the condensation collection tray discharge union a pipe for the outow of the liquid blocking it adequately. Check that the
drip-collector extension is present and correctly installed.
C
ø14mm
B
D
B
discharge tting
C
tube for the outow of the liquid
D
extension drip
Mounting the condensation discharge pipe in the horizontal version (42SIC, 42SIN)
To mount the horizontal bowl on the 42SIC versions refer to the instructions in kits GB0520/GB0524.
- check that the “L” pipe and the exible rubber hose are correctly connected to the bowl.
- slide in the side of the machine keeping the pipe in position up against the front grill.
- fully close the side checking that the pipe remains blocked in the special grove on the side.
