NOTES:
1. Unless otherwise specified, all dimensions are to out-
side of part.
2. Roof curb accessory is shipped disassembled.
3. All roof curb parts are to be 16 ga galvanized steel.
4. Dimensions are in inches.

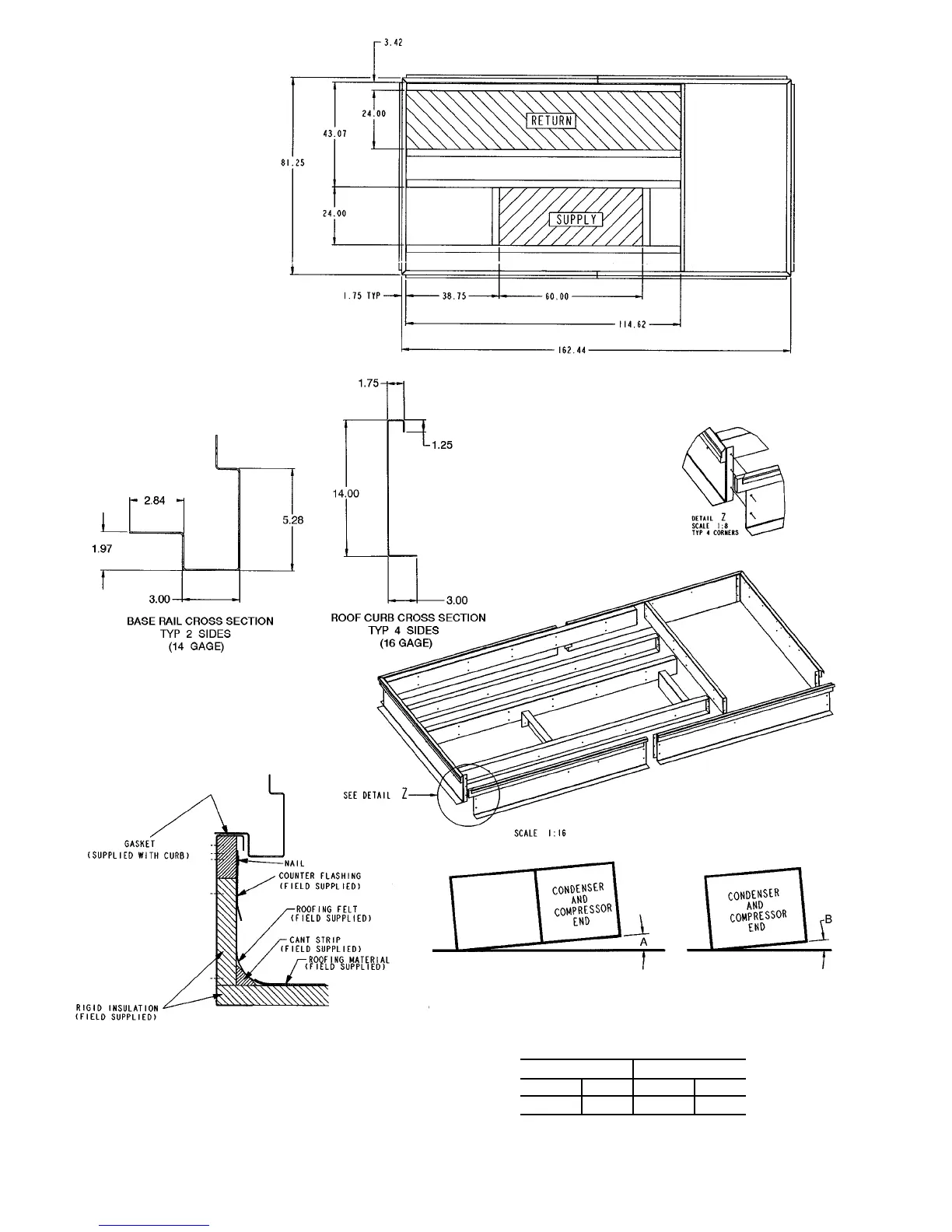

Fig. 1 — Roof Curb (Sizes 024 and 028)
UNIT LEVELING TOLERANCES DIMENSIONS*
(Degrees and Inches)
AB
Deg. in. Deg. in.
1.0 2.9 .50 .75
*From edge of unit to horizontal.
NOTE: To prevent standing water in the drain pan of the indoor section
and the heat exchangers, UNIT CAN ONLY BE PITCHED AS SHOWN.
2
