NOTES:
1. Weights include economizer (Std)
2. Center of gravity.
3. Do not locate adjacent units with discharge facing econo-
mizer inlet. Minimum clearances to be:
Adjacent Units: 158-09
Top of Units: No overhang
Outdoor Coil: 48-09
Economizer Side: 68-09
Filter Access Side: 108-09 (for removal of evaporator
coil)
4. For smaller service and operational clearances, con-
tact Carrier Application Engineering department.
5. Dimensions are in inches. Dimensions in [ ] are in
millimeters.
6. For units equipped with electric heat, a field-supplied
90° elbow must be installed in the supply ductwork be-
low the unit discharge.
7. For side-supply/return applications, a single return and
supply ductwork connection is recommended for cov-
ering both return and both supply openings.
UNIT SIZE
50EWQ
OPERATING
WEIGHT
(lb)
AB
CORNER WEIGHT
(lb)
ft-in. ft-in. 1 2 3 4
024 4168 5-7
3
⁄
8
3-7
5
⁄
8
843 859 1245 1222
028 4168 5-7
3
⁄
8
3-7
5
⁄
8
843 859 1245 1222

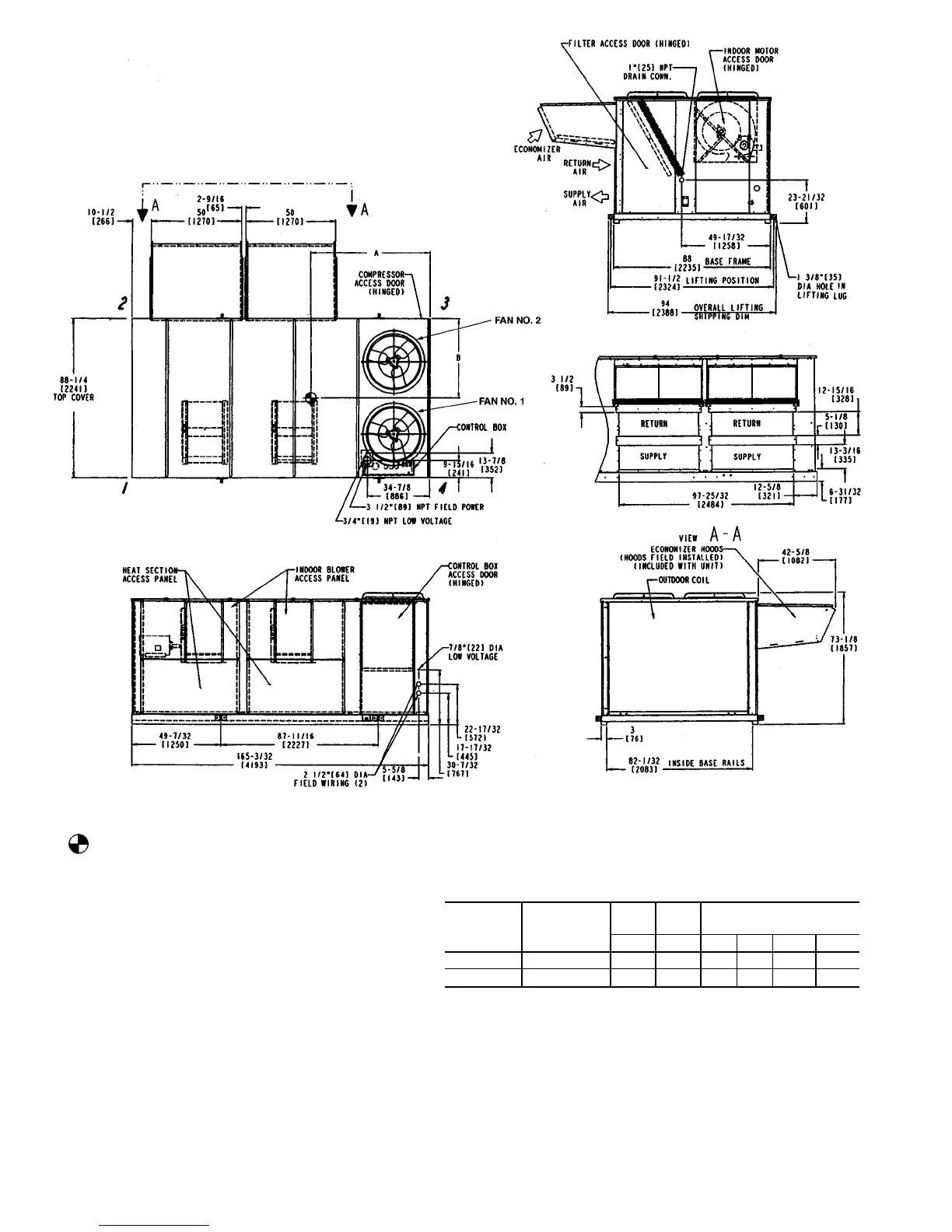

Fig. 3 — Base Unit Dimensions, 50EWQ024 and 028
