COOLING CHARGING CHARTS (cont.)
C14055

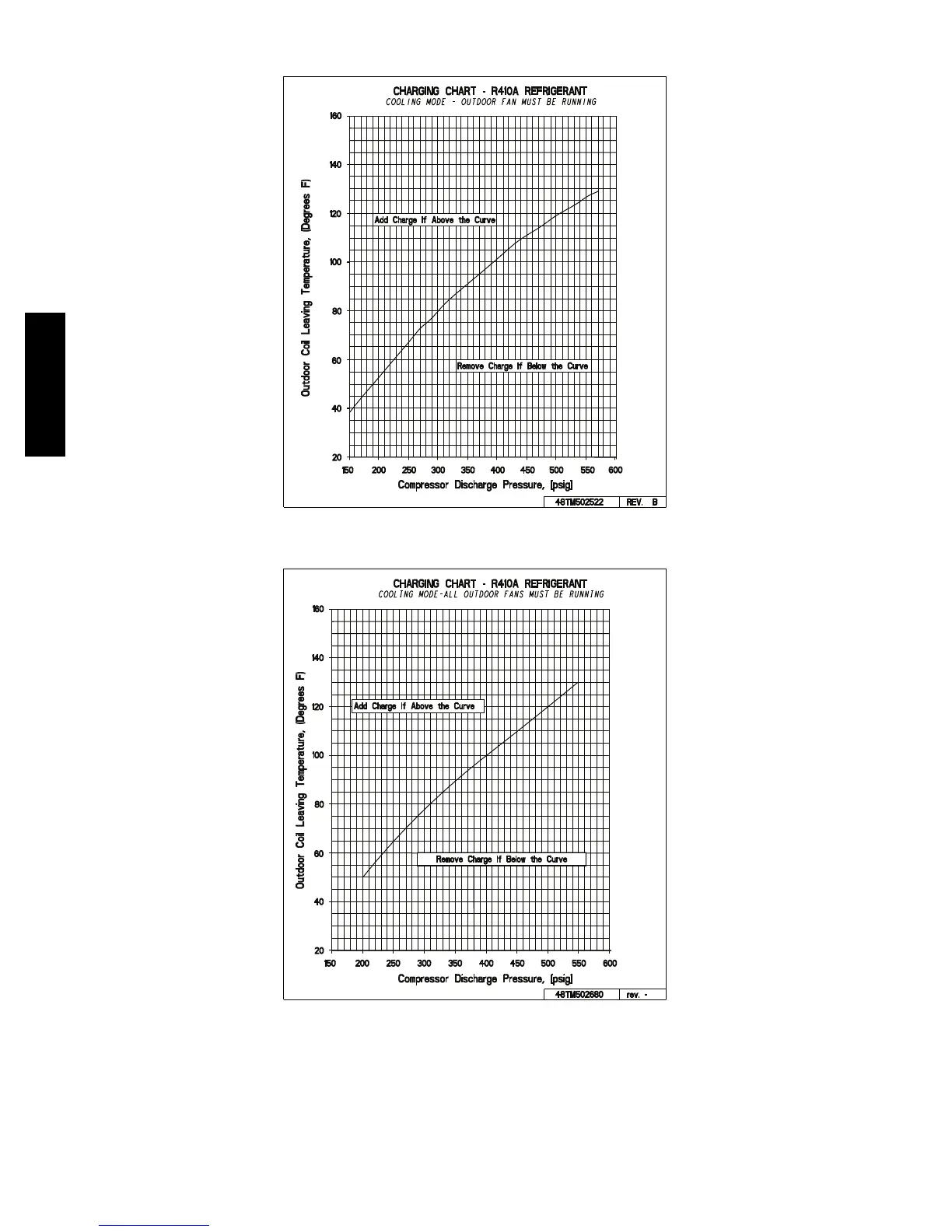

Fig. 21 -- Cooling Charging Chart -- 5 Ton
Add Charge if Above the Curve
Remove Charge if Below the Curve
CHARGING CHART - R410A REFRIGERANT
COOLING MODE-ALL OUTDOOR FANS MUST BE RUNNING
20
40
60
80
100
120
140
160
150 200 250 300 350 400 450 500 550 600
Compressor Discharge Pressure, [psig]
)
F
seerge
D
(
,erutare
p
me
T
gniv
a
eL li
o
C r
o
o
d
t
uO
48TM502680 rev. -
C14056
Fig. 22 -- Cooling Charging Chart -- 6 Ton
50HC
