Carrier 50HC Series - APPENDIX V. MOTORMASTER SENSOR LOCATIONS

124 pages

To Next Page

To Previous Page

121

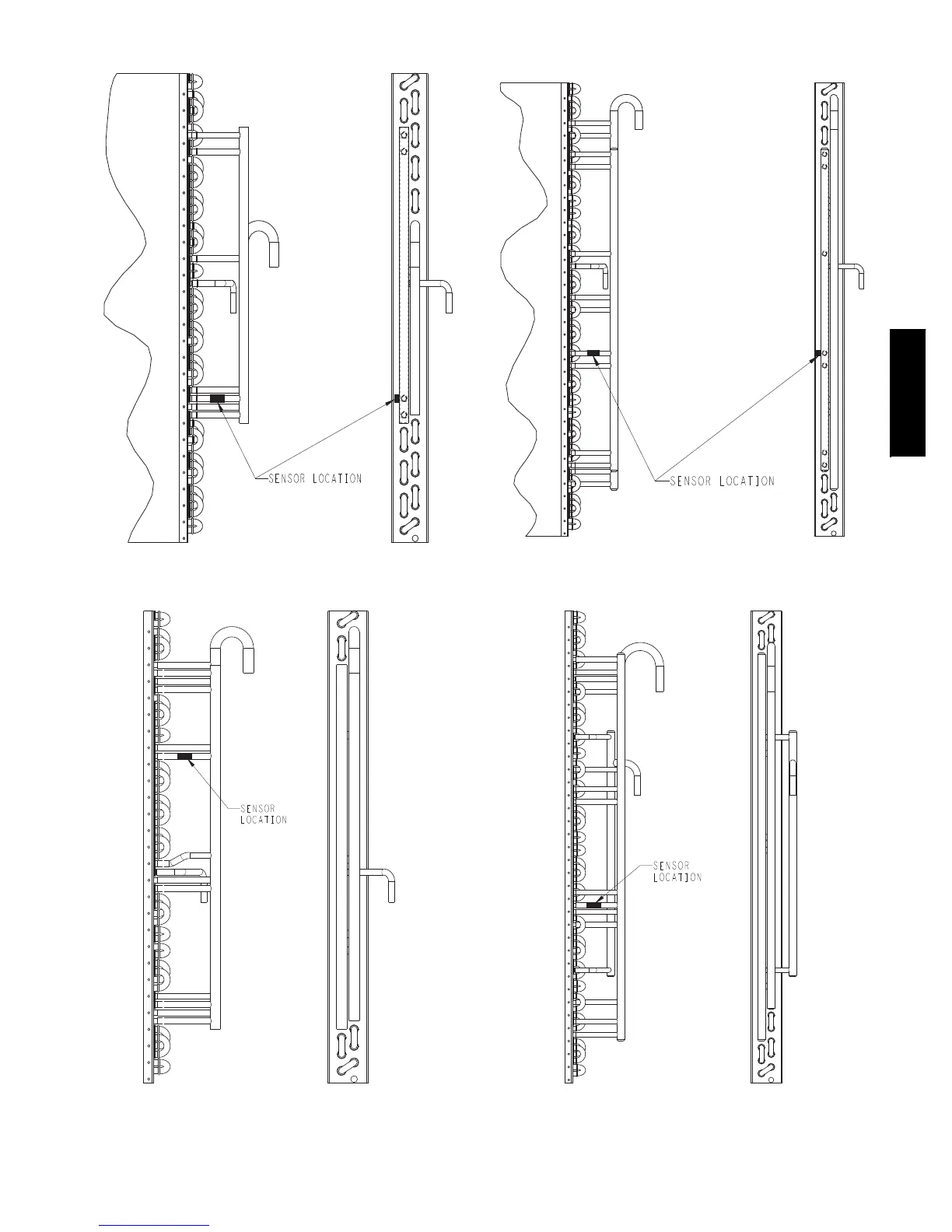

APPENDIX V. MOTORMASTER SENSOR LOCATIONS

C10273

Fig. 107 -- 50HC*A04 Outdoor Circuiting

C08260

Fig. 108 -- 50HC*A05/06 Outdoor Circuiting

C10274

Fig. 109 -- 50HC*A07 Outdoor Circuiting

C08262

Fig. 110 -- 50HC*A08 Outdoor Circuiting
