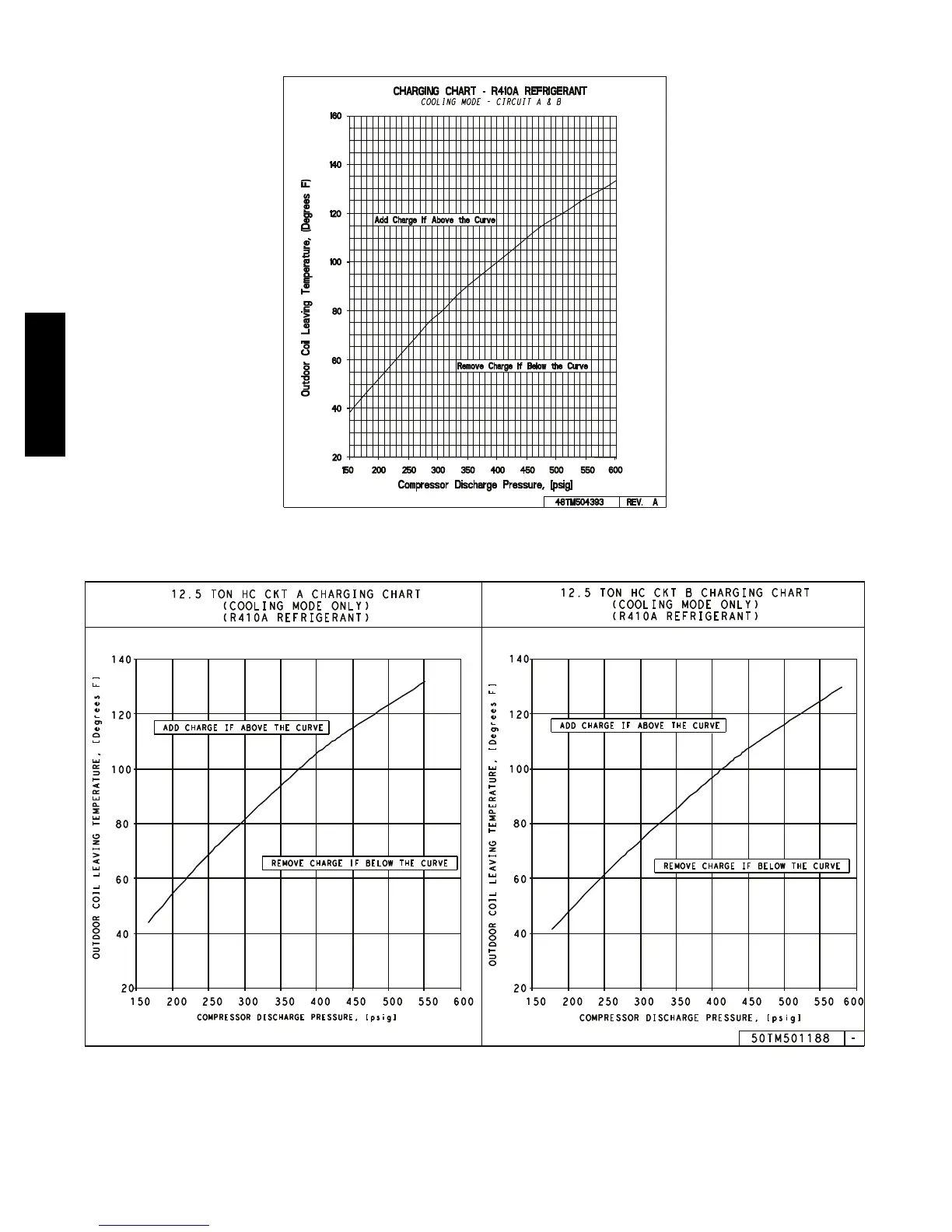

COOLING CHARGING CHARTS (cont.)
C14057
Fig. 25 -- Cooling Charging Chart -- 10 Ton
20
40
60
80
100
120
140
150 200 250 300 350 400 450 500 550 600
20
40
60
80
100
120
140
150 200 250 300 350 400 450 500 550 600
50TM501188
-
12.5 TON HC CKT A CHARGING CHART
(COOLING MODE ONLY)
(R410A REFRIGERANT)
12.5 TON HC CKT B CHARGING CHART
(COOLING MODE ONLY)
(R410A REFRIGERANT)
ADD CHARGE IF ABOVE THE CURVE
REMOVE CHARGE IF BELOW THE CURVE
ADD CHARGE IF ABOVE THE CURVE
REMOVE CHARGE IF BELOW THE CURVE
COMPRESSOR DISCHARGE PRESSURE, [psig]
OUTDOOR COIL LEAVING TEMPERATURE, [Degrees F]
COMPRESSOR DISCHARGE PRESSURE, [psig]
OUTDOOR COIL LEAVING TEMPERATURE, [Degrees F]
C14058
Fig. 26 -- Cooling Charging Chart -- 12.5 Ton -- Circuit A and B
