SEE NOTES: 1,2,4,7,8,9
on the page following
these figures
SEE NOTES:1,2,3,4,5,7,8,9
on the page following
these figures
A03208

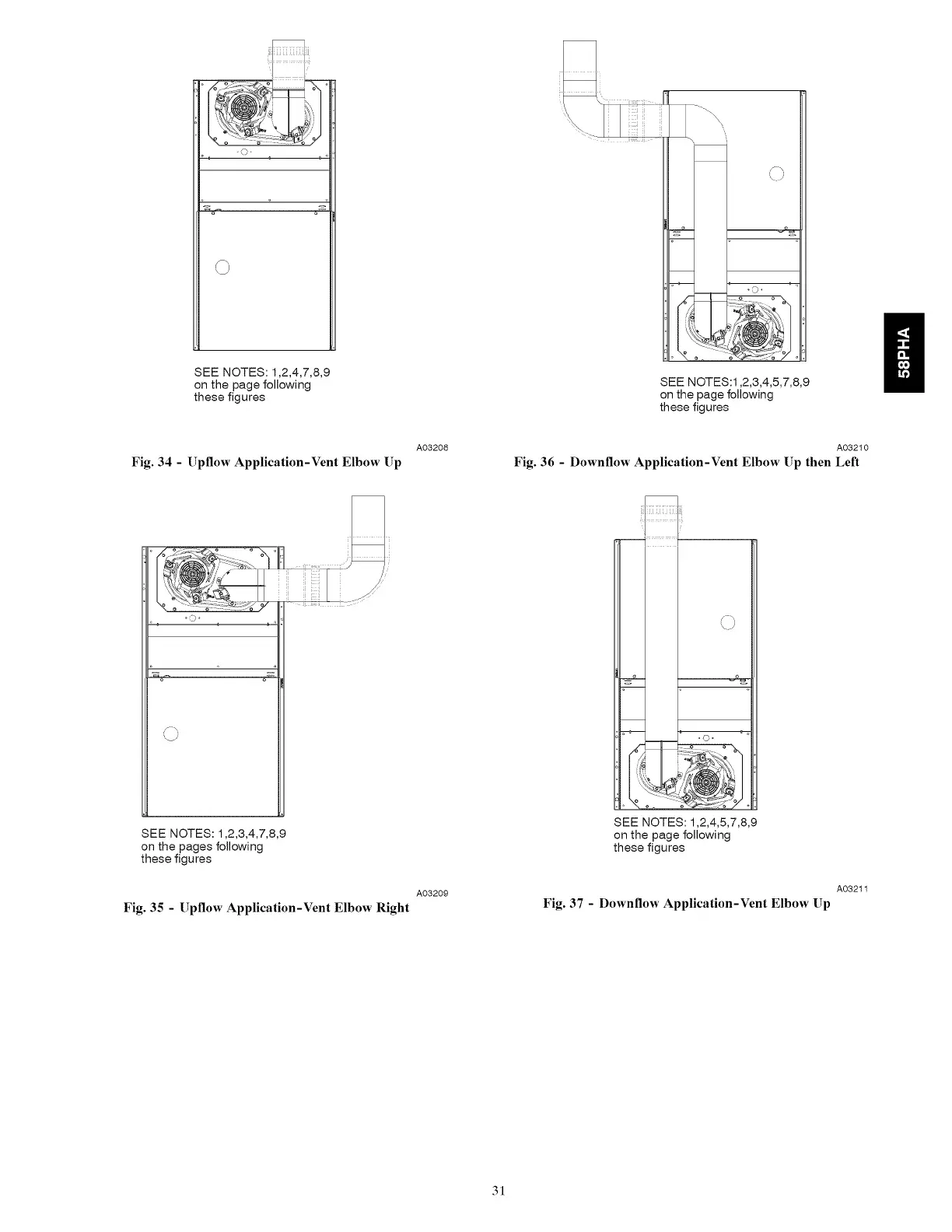

Fig. 34 - Upflow Application-Vent Elbow Up
A03210
Fig. 36 - Downflow Application-Vent Elbow Up then Left
f_
SEE NOTES: 1,2,3,4,7,8,9
on the pages following
these figures
Fig. 35 - Upflow Application-Vent Elbow Right
A03209
SEE NOTES: 1,2,4,5,7,8,9
on the page following
these figures
Fig. 37 - Downflow Application-Vent Elbow Up
A03211
31
