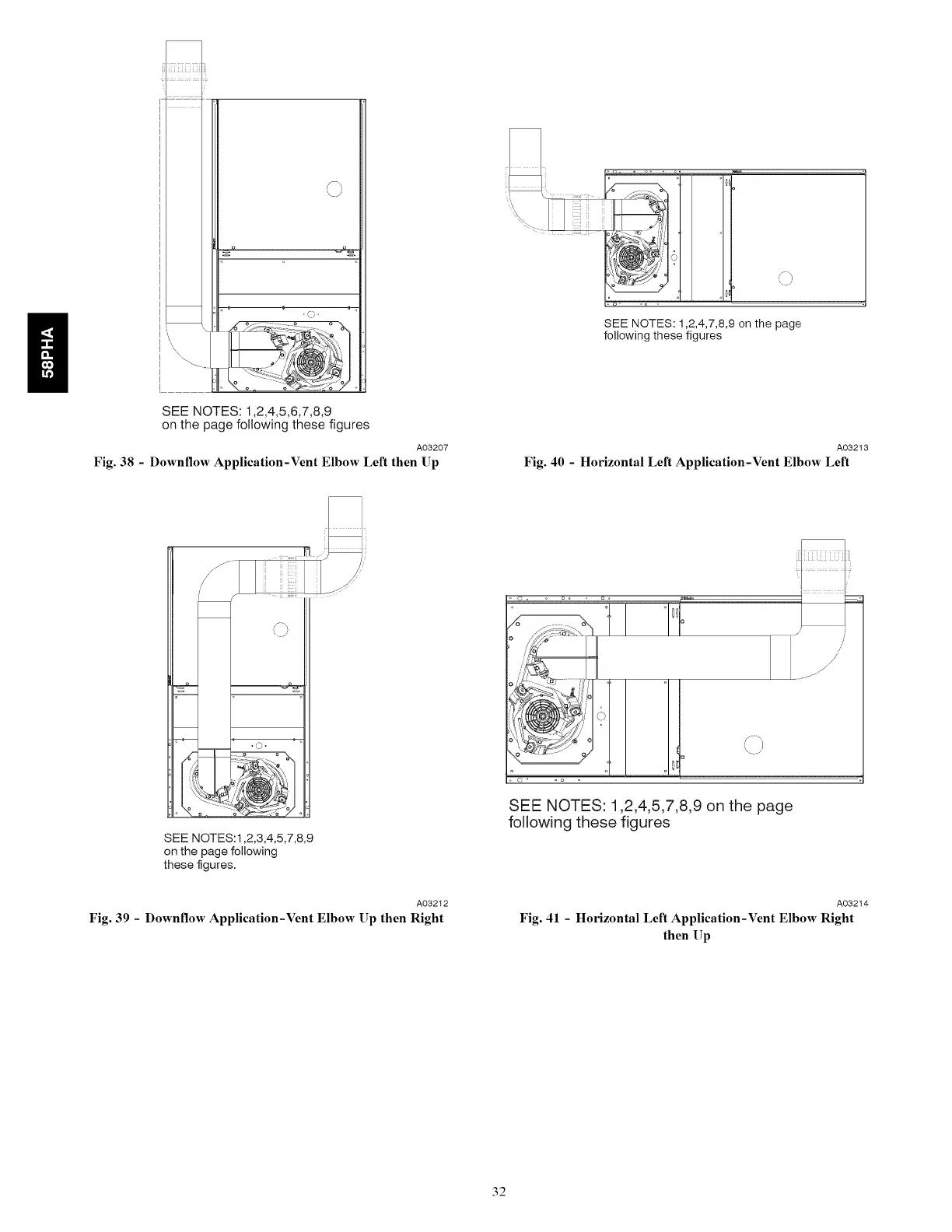

Fig. 38 - Downflow Application-Vent Elbow Left then Up
o
.o
SEE NOTES: 1,2,4,7,8,9 on the page
following these figures
A03213
Fig. 40 - Horizontal Left Application-Vent Elbow Left
SEE NOTES:1,2,3,4,5,7,8,9
on the page following
these figures.
oo
° _0o
SEE NOTES: 1,2,4,5,7,8,9 on the page
following these figures
A03212
Fig. 39 - Downflow Application-Vent Elbow Up then Right
A03214
Fig. 41 - Horizontal Left Application-Vent Elbow Right
then Up
